Generic Precompensation Plug-in

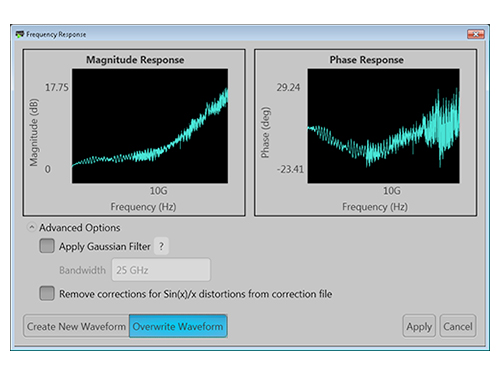

Generic Precompensation is a standalone software plug-in that integrates into SourceXpress® or the AWG70000 series and the AWG5200 series. The plug-in creates correction coefficients that can be applied on waveforms to get flat frequency and linear phase response.

Users can compensate for the first and second Nyquist zones of the AWG. Users can define the LO frequency and choose to get correction coefficients for either lower side band or upper side band, as well as define the carrier frequency. In all the modes, users can define the bandwidth of compensation either by specifying start and end frequencies (RF & IF) or bandwidth (in IQ/IQ with modulator).

See more signal generators »

Get a free trial



基本价格
US $1,680 +
Generic Precompensation Plug-in

Features

Benefits

Precompensation runs on your PC (via the SourceXpress environment) or natively on your AWG Generate correction coefficients for immediate analysis, weather you are in the lab, or connected remotely
Provide correction coefficients for a variety of the most common RF and Optical modulation formats The pre-compensation plug-in works for a variety of modulations waveform types and applications including RF, IF, or IQ and NRZ signals IQ
One interface to learn Plug-ins are seamlessly integrated into either the AWG GUI or SourceXpress interface to provide a powerful streamlined waveform generation tool suite
