问题:
What cart does my scope use?
答案:
Below are the Instrument Carts that can be purchased from Tektronix.

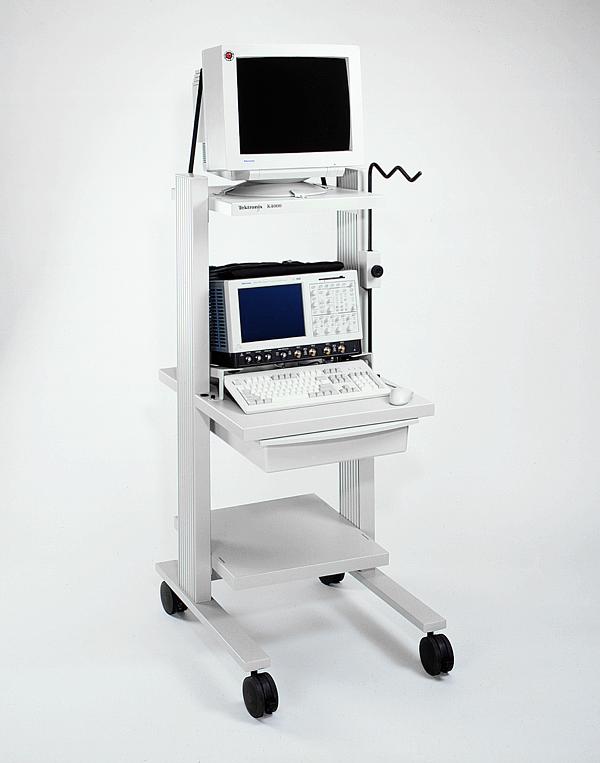

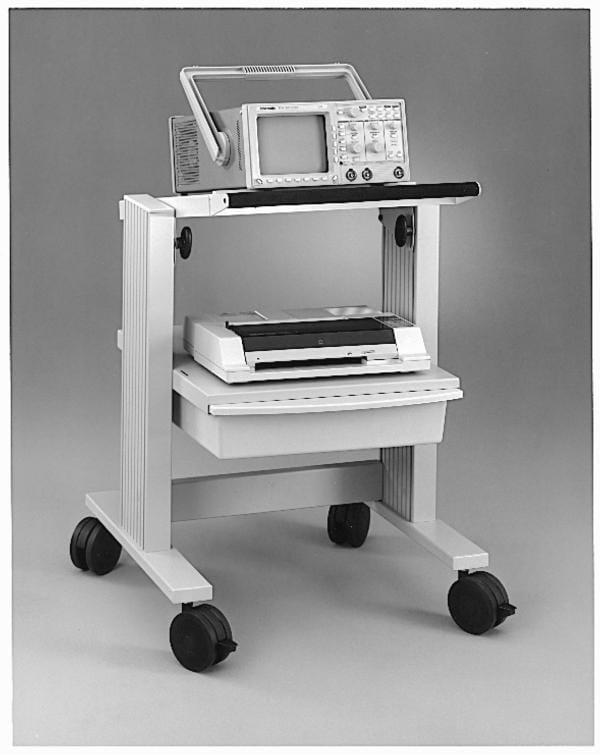

K4000 K420

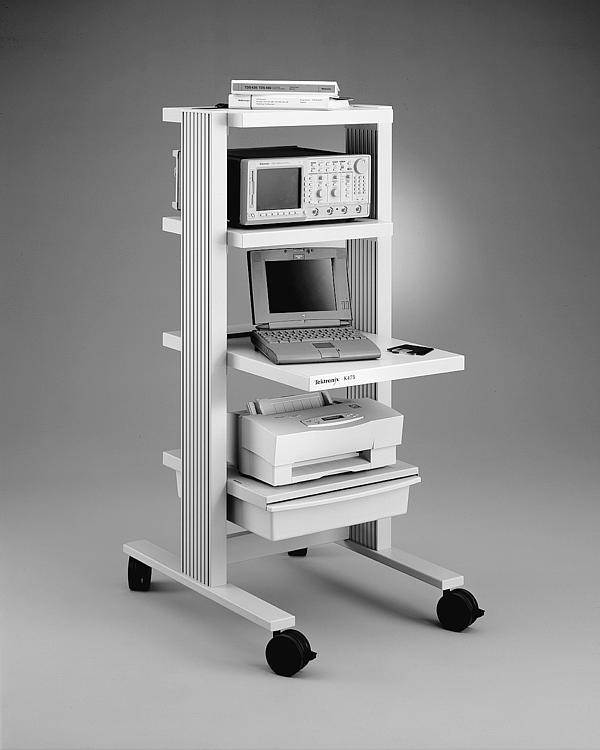

K475
More information can be found on the Instrument Cart Datasheet Page
Oscilloscope Family | Cart |
TDS1000B/TDS2000B/TDS2000C | K420 |
TDS3000B/TDS3000C | K420 |
MSO2000/ MSO2000B | K420 |
DPO2000/ DPO2000B | K420 |
MSO3000 | K420 |
DPO3000 | K420 |
MDO3000 | K420 |
MSO4000/MSO4000B | K420 |
DPO4000/DPO4000B | K420 |
MDO4000/ MDO4000B/ MDO4000C | K420 |
MSO5000 /MSO5000B | K420 |
DPO5000 /DPO5000B | K420 |
TDS5000B | K420 with bracket set part number 407-4996-00 |
TDS6000B/TDS6000C | K4000 |
CSA7000B | K4000 |
TDS7000B | K4000 |
DPO7000 | K420 with bracket set part number 407-5192-01 |
DPO7000C | K420 with bracket set part number 407-5192-01 |
DPO/DSA70000 | K4000 with bracket set part number 407-5446-00 |
DPO70000B/DSA70000B | K4000 with bracket set part number 407-5446-00 |
DPO70000C/DSA70000C | K4000 with bracket set part number 407-5446-00 |
MSO70000/MSO70000C | K4000 with bracket set part number 407-5446-00 |
DSA8200 | K4000 |
DSA8300 | K4000 |
