Companies such as National Instruments and LeCroy sell USB-to-GPIB adapters. How do their adapters compare to the TEK-USB-488?

问题：

Companies such as National Instruments and LeCroy sell USB-to-GPIB adapters. How do their adapters compare to the TEK-USB-488?

答案：

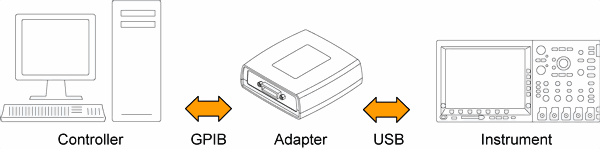

The products from National Instruments (GPIB-USB-B or GPIB-USB-HS) and LeCroy (WS-GPIB) are USB host to GPIB device adapter. These would be used for instruments that have a GPIB interface with controllers that have a USB port. The TEK-USB-488 was designed for Tektronix instruments that have a USB device port with controllers that have a GPIB port.

488

TEKUSB488GPIBtoUSBAdapter-2-L_0


此常见问题适用于：

产品系列： MSO3000 / DPO3000 $name MSO/DPO5000B 混合信号示波器 MSO4000 / DPO4000 MDO3000混合域示波器 MDO4000C混合域示波器 TBS1000C 数字存储示波器

产品：

常见问题 ID 56456
