Recommended Electronics Engineering Benches for Education

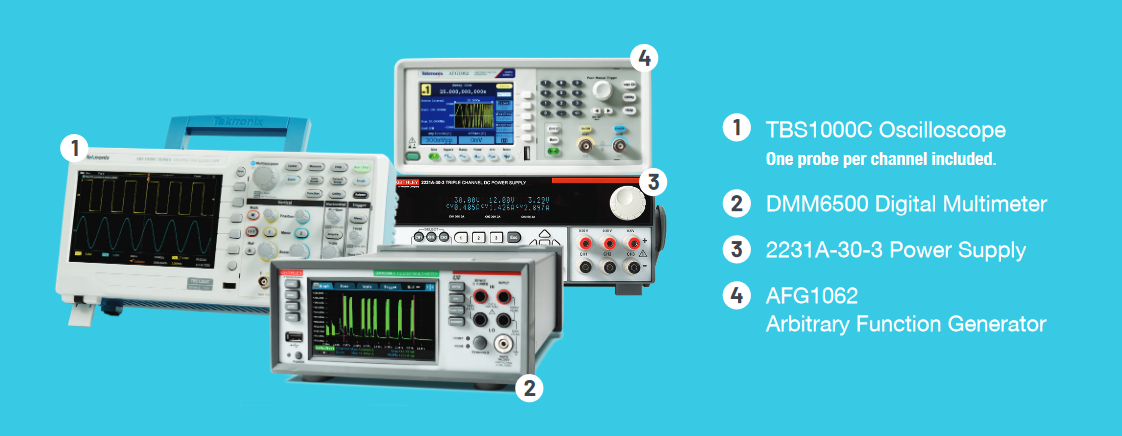

Fundamental Teaching Lab

Prepare future engineers for tomorrow’s exciting challenges with an affordable yet powerful suite of entry level test equipment. This bench configuration includes the hardware, software and service components to give your students the engineering fundamentals they need.

Contact for Pricing >



TekScope™/KickStart

Service Plans

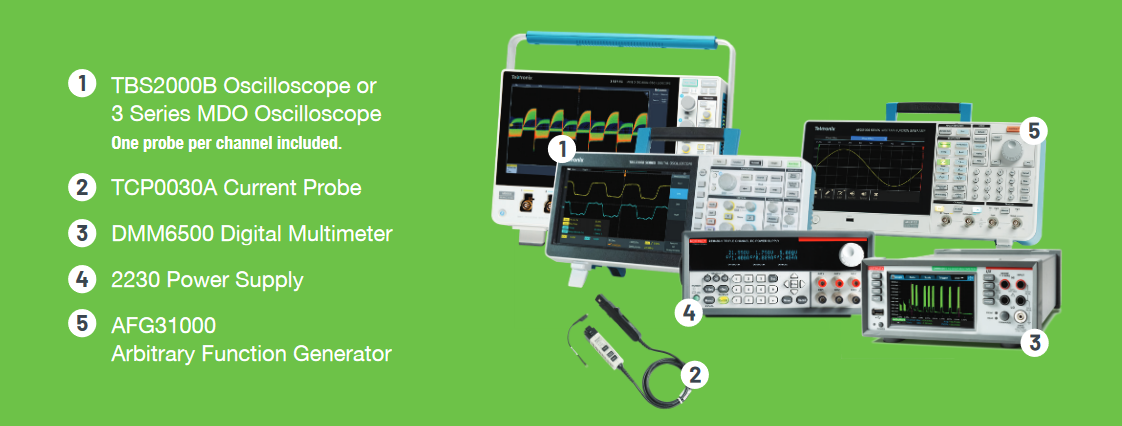

Power Electronics Engineering Lab

With the advancements in electronics, design and implementation skills place particular emphasis on analog and mixed-signal circuits, serial bus decoding, power management, wireless communications and rapid prototyping.This configuration provides students with the instruments to help them learn real world applications.

Contact for Pricing >



TekScope™/KickStart

Service Plans

Embedded Design Lab

With the increased functionality of modern devices, embedded designs are becoming more and more complex. Students will encounter difficult issues and need to learn how to perform root cause analysis throughout their projects. This embedded design bench features the new 2 Series MSO that enables future engineers to be ready for any problem at any location.

Contact for Pricing >



TekScope™/TekDrive/KickStart

Service Plans

Next-Generation RF/Wireless Lab

With the rapid evolution of wireless technologies and the complexity of IoT designs, your students need modern bench equipment that will prepare them to succeed in the real world. This bench configuation includes components you’ll need to enable your students to learn challenging designs with total confidence.

Contact for Pricing >

TekScope™/TekDrive/KickStart/SignalVu-PC Software

Service Plans

Oscilloscopes

The 2 Series MSO is a full-featured oscilloscope in a compact, portable form factor that feels like a tablet. The unique set of features makes this scope perfect for students exploring the instrument with a help button that provides contextapplicable solutions in real-time.
One probe per channel included.

With a touchscreen interface and built-in spectrum analyzer, this scope is perfect for the student RF analysis lab.
One probe per channel included.

Featuring bandwidths up to 200 MHz and four channels, familiar, easy to use controls, context sensitive help system and a standard 5-year warranty. Perfect for the beginning engineering lab.
One probe per channel included.

With built-in features for educators and a user interface designed for hands-on learning, you get affordable performance in a compact design for your beginners engineering lab.
One probe per channel included.

Probes

You can use the TCP0030A current probe to make accurate measurements from DC to 120 MHz. The probe combines proven Hall-effect technology with the Tektronix TekVPI® oscilloscope interface.

The 200 MHz TIVP02 Isolated Probe offers a differential voltage range of ±2500 V and delivers accurate differential measurements on reference voltages slewing ±60 kV at 100 V/ns or faster.

Digital Multimeters

Leading touchscreen bench DMM with builtin premium features for the education lab.

Power Supplies

Series 2230 Power Supplies include two 30 V/1.5 A channels plus a 6 V channel with up to 5 A output for powering digital circuits.

This DC power supply is ideal for testing a wide range of devices in the education lab.

The 2281S uses a model to emulate the response of a battery over its discharge cycle so you can estimate battery life and analyze product performance over the life of the battery.

Arbitrary Function Generators

A building block for an education bench solution, this AFG generates all of the waveforms needed for a teaching lab.

A high-performance AFG with built-in arbitrary waveform generation, real-time waveform monitoring, and the largest touchscreen on the market. Perfect for the modern teaching lab.

Source Measure Units

Simultaneously sources and measures current. The touchscreen interface minimizes the learning curve and enables students to learn faster, work smarter, and invent easier.

USB Signal Analyzers

This affordable RSA enables students to capture results of experiments, perform analysis, and generate lab reports on their laptops, saving time and optimizing learning opportunities.

Vector Signal Generators

Generates a variety of RF signals starting from true DC up to 6 GHz, with up to 200 MHz modulation bandwidth, the TSG4100 offers mid-range RF performance for the engineering student.

Software and Service

Get the analysis capability of an awardwinning oscilloscope on your PC. Analyze waveforms anywhere, anytime.

Collaborate easily by storing, organizing, managing, and sharing data and files. Preview and analyze supported waveform data types on any device with no extra software.

Used with Tektronix spectrum analyzers and oscilloscopes to help students and professors validate RF/Wireless designs directly from their own computer.

KickStart simplifies what you need to know about the instrument so that in just minutes you can take the instrument out of the box and get real data on your device.

Tektronix offers a range of warranty and service plans to protect your investment and extend the length of your coverage. Find the plan that is right for you.

To learn more about recommended bench configurations, click the product links or visit: Tek.com/education

Make sure your students and the world's future engineers have the right tools for today and tomorrow.

Save with Education Pricing Program

We've made it easy for schools and universities to equip their engineering labs with world-class test and measurement equipment at an affordable price.

Qualified schools enjoy a 15% discount off all products.
