Dual 1×48 High Density Multiplexer with 96 differential channels, 300 Volts/1 Amp

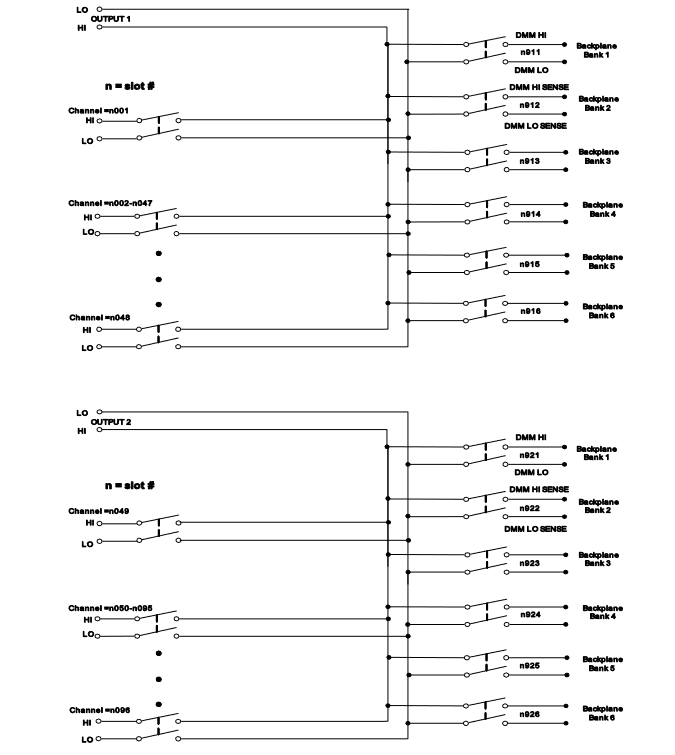

MULTIPLEXER CONFIGURATION: Two independent 1 × 48 2-pole Multiplexers. Banks can be connected together via relays creating a single 1 × 96 Multiplexer. Banks can be isolated from the backplane by relays. Card can be configured for 2 and 4 wire mode.
CONTACT CONFIGURATION: 2 pole form A.
CONNECTOR TYPE: Two 104 pin female D-shells.
MAXIMUM SIGNAL LEVEL: 300 V DC or RMS, 1A switched (2A carry), 60W, 125VA.
COMMON MODE VOLTAGE: 300 V DC or RMS between any terminal and chassis.
VOLT-HERTZ LIMIT: 8 × 107
CONTACT LIFE: > 105 operations at max signal level.
< 108 operations no load.1

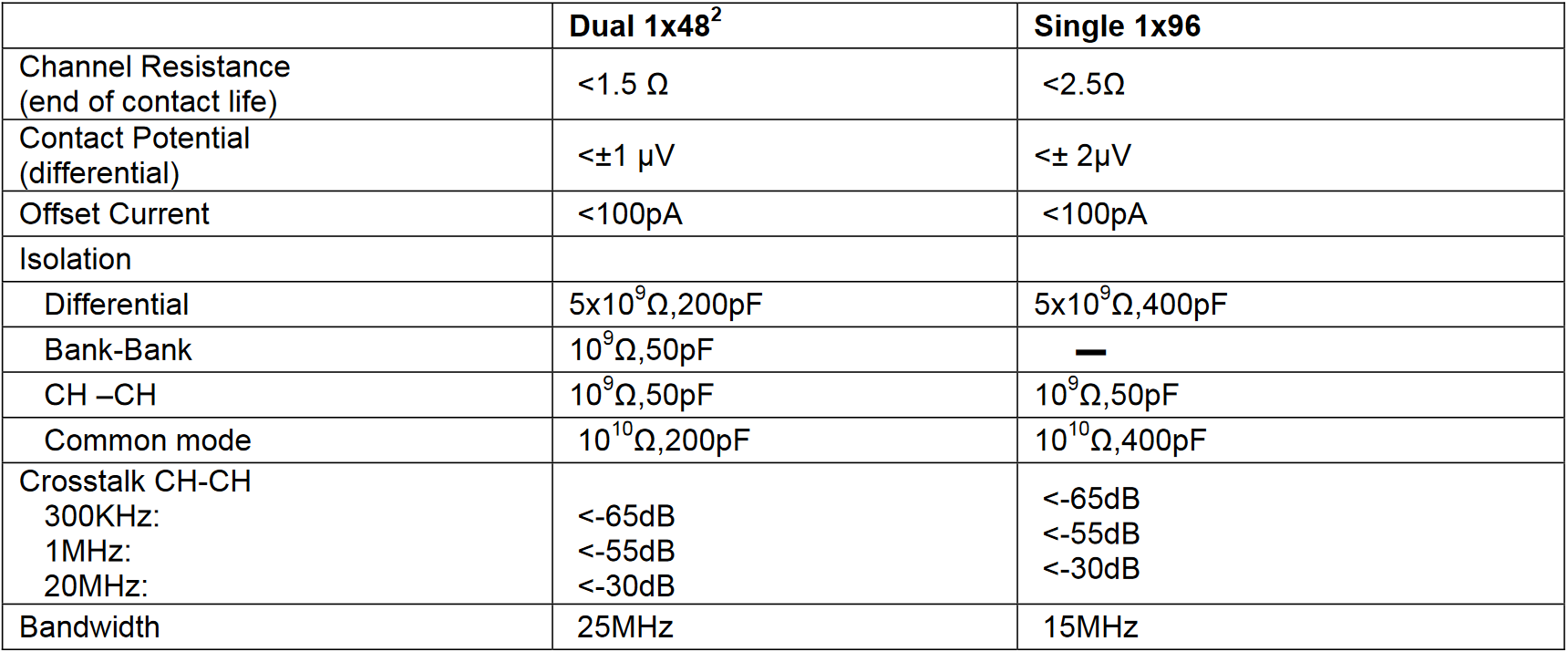

| Dual 1 × 482 | Single 1 × 96 | ||
| Channel Resistance (end of contact life) |
<1.5 Ω | <2.5 Ω | |
| Contact Potential (differential) |
<±1 μV | <±2 μV | |
| Offset Current | <100 pA | <100 pA | |
| Isolation | |||
| Differential | 5 × 109Ω, 200pF | 5 × 109Ω, 400pF | |
| Bank-Bank | 109Ω, 50pF | — | |
| CH –CH | 109Ω, 50pF | 109Ω, 50pF | |
| Common mode | 1010Ω, 200pF | 1010Ω, 400pF | |
|
Crosstalk CH-CH |
|
<−65 dB <−55 dB <−30 dB |
|
| Bandwidth | 25MHz | 15MHz | |
1 Minimum signal level 10 mV, 10 µA.
2 3706 mainframe with all DMM backplane relays disconnected. Maximum two card backplane relays closed.
GENERAL:
ACTUATION TIME: 4ms.
RELAY TYPE: Latching electromechanical.
RELAY DRIVE SCHEME: Matrix.
OPERATING ENVIRONMENT:
Specified for 0°C to 50°C.
Specified to 70% R.H. at 35°C
STORAGE ENVIRONMENT: −25°C to 65°C
WEIGHT: 2.5lb
SAFETY: Conforms to European Union Directive 73/23/EEC,EN61010-1
EMC: Conforms to European Union Directive 2004/108/EC,EN61326-1
Typical Scanning Speeds, switch only3
| Ch/Sec | ||

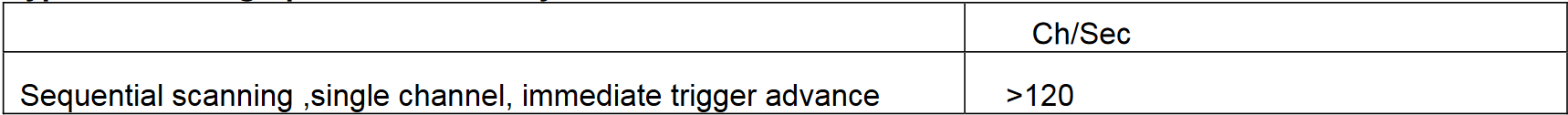

| Sequential scanning, signal channel, immediate trigger advance | >120 | |
Typical Scanning Speeds, with measurements into memory4
| Ch/Sec | ||

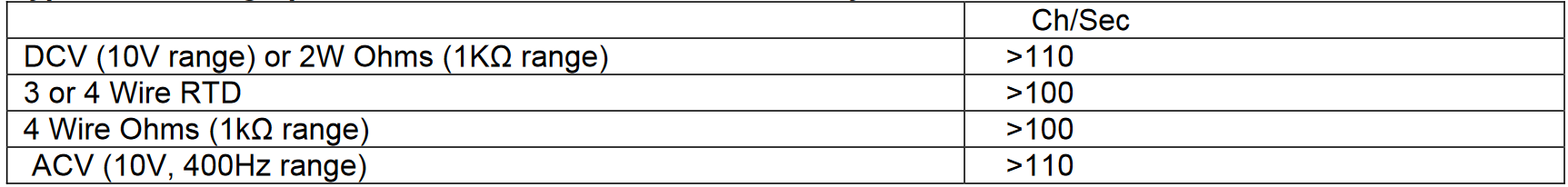

| DCV (10V range) or 2W Ohms (1KΩ range) | >110 | |
| 3 or 4 Wire RTD | >100 | |
| 4 Wire Ohms (1kΩ range) | >100 | |
| ACV (10V, 400Hz range) | >110 | |
3 Scanning script local to mainframe, within same bank, break before make.
4 3706 mainframe with autorange off, limits off, DMM.autodelay=0, dmm.autozero=0, 4½ digits ( NPLC=0.006), for ACV dmm.detectorbandwidth=300,for OHMs dmm.offsetcompensation=off, dmm.opendetector=off. Scanning script local to mainframe, sequential scan within same bank (2 pole) or card (4 pole), and break before make switching.
