3 Series MDO Spectrum Analyzer vs. Oscilloscope FFT Comparison

1 GHz spectrum analyzer is standard in all 3 Series MDOs. Optional frequency range to 3 GHz

11.6” HD touch display with award-winning user interface
Standard spectrum analyzer controls such as center frequency, span and RBW make simplify settings
Automatic markers instantly identify spectralpeaks
Includes spectrum analysis features such as assorted trace types, detection methods, and automated measurements

~15 dB better dynamic range than scopeFFT

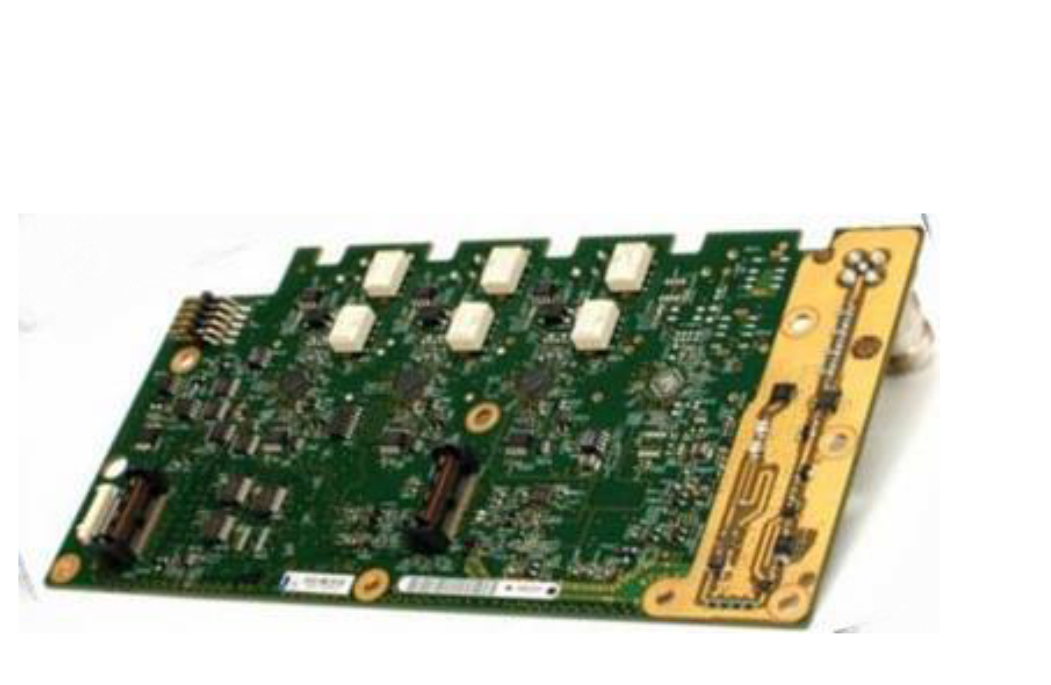

Dedicated N-connector RF input
Guaranteed spectrum analyzer specifications including DANL, spurious response and level uncertainty specifications

Find complete spectrum analyzer specifications for RF measurements in IoT, EMI troubleshooting and many more applications at tek.com/3SeriesMDO

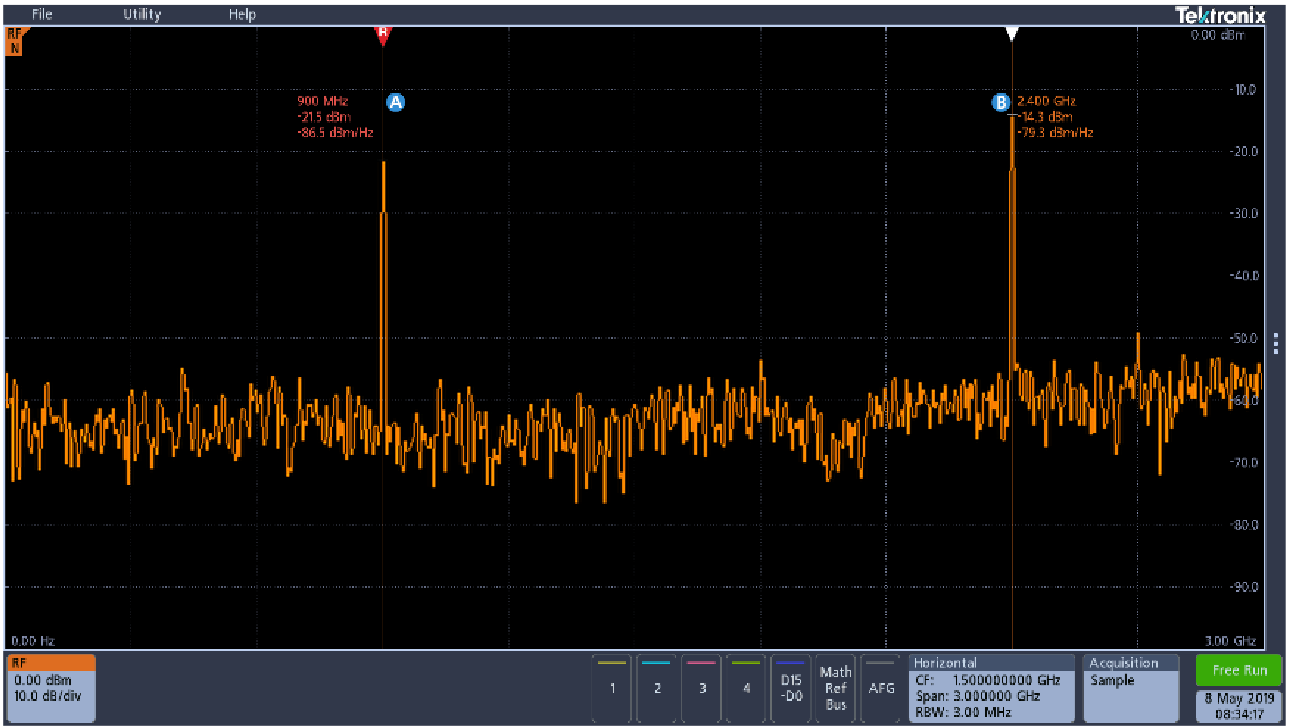

Ultra-wide capture bandwidth

Spectral display of both Zigbee at 900 MHz and Bluetooth at 2.4 GHz, captured with a single acquisition

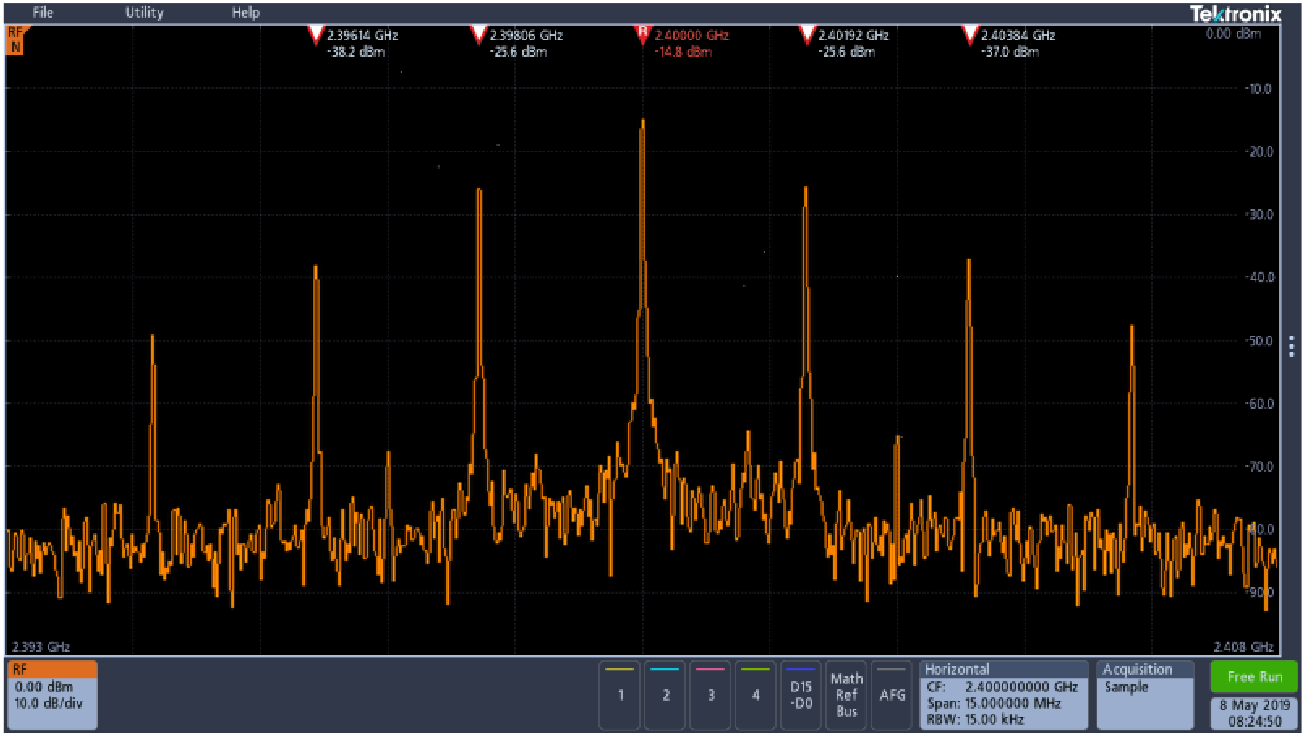

Automatic Markers

Automated peak markers identify critical information at a glance. As shown here, the five highest amplitude peaks that meet the threshold and excursion criteria are automatically marked along with each peak's frequency and amplitude

Spectrogram Display

Spectrograms enable easy visual understanding of slowly changing RF phenomena

Spectral Measurements

Spectrum analyzer measurements are supported including Channel Power, Adjacent Channel Power Ratio, and Occupied Bandwidth

Find more valuable resources at TEK.COM

Copyright © Tektronix. All rights reserved. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material. Specification and price change privileges reserved. TEKTRONIX and TEK are registered trademarks of Tektronix, Inc. All other trade names referenced are the service marks, trademarks or registered trademarks of their respective companies.

06/20 48W-61578-1
