Ultra-Broadband DC Block
PSPL5509 Datasheet
泰克对于本技术资料上的产品不再有售。
查看 Tektronix Encore 了解翻新测试设备。
查看这些产品的支持和保修状态。
The PSPL5509 DC Block is an ultra-broadband inner conductor DC block with a flat frequency response over many decades up to 50 GHz. It is available in a choice of 2.92 mm or 2.4 mm connectors.
Key performance specifications
- 7 kHz to 50 GHz Bandwidth
- 5 ps Rise time
- 1 dB Insertion Loss to 40 GHz
Typical performance

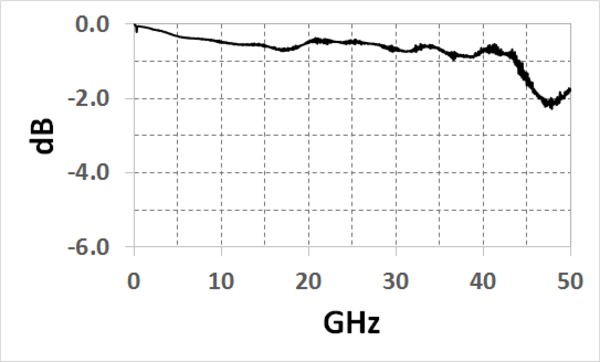

The following figure shows the Insertion Loss from 40 MHz to 50 GHz (2.4 mm connectors).

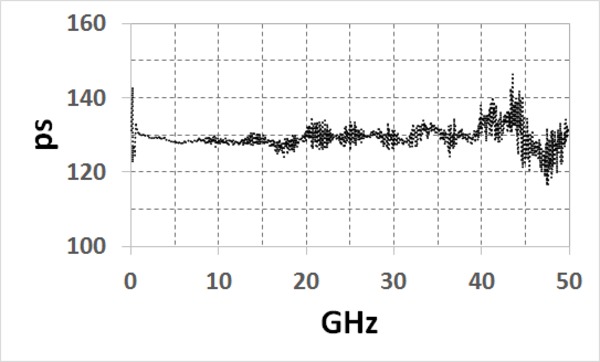

The following figure shows the Group Delay from 40 MHz to 50 GHz (2.4 mm connectors).
The following figure shows the Return Loss from 40 MHz to 50 GHz (2.4 mm connectors).

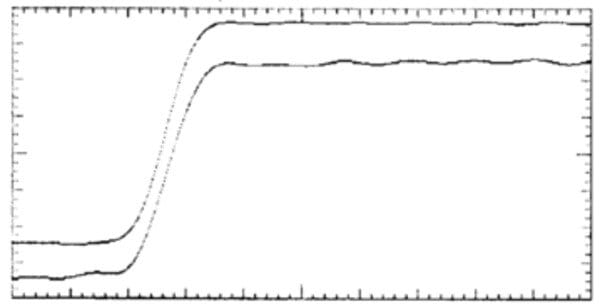

The following figure shows the step response to a 15 ps rise time input at 10 ps/div.
Specifications
| Parameter 1 | Description | |
|---|---|---|
| Capacitance | 0.22 μF | |
| Voltage | 16 V maximum | |
| Insertion Loss (all connector types) (2.4 mm only) | <1 dB typical, f < 40 GHz 2 dB maximum at 40 GHz 3 dB maximum at 50 GHz | |
| Low Frequency (-3 dB) | 7 kHz | |
| Rise time (10% - 90%) | 5.1 ps | |
| Delay | 126 ps | |
| Impedance | 50 Ω | |
| Return Loss | See Typical performance | |
| Dimensions 2.92 mm 2.4 mm | 35.1 x 15.9 x 7.9 mm 36.7 x 15.9 x 7.9 mm | |
| Warranty | One year | |
1Parameters listed are typical values. The maximum and minimum limits for insertion loss are guaranteed.
Ordering information
Models
- PSPL5509
- DC Block
Options
Two options are required, a voltage option and a connector option.
- PSPL5509 16V
- 16 V blocking voltage
- PSPL5509 240JP
- 2.4 mm connectors jack (f) & plug (m)
- PSPL5509 292JP
- 2.92 mm connectors jack (f) & plug (m)
