Tektronix Logic Analyzer Probes
P5900 Series Datasheet
泰克对于本技术资料上的产品不再有售。
查看 Tektronix Encore 了解翻新测试设备。
查看这些产品的支持和保修状态。
Verification and debug of today's high speed digital signals requires probing solutions that can accurately acquire from a wide variety of electronic designs and protect signal fidelity. Tektronix logic analyzer probes contain a variety of connectivity options that are engineered to ensure that signal acquisition is a true reflection of your design's performance.
Notice to EU customers
This product is not updated to comply with the RoHS 2 Directive 2011/65/EU and will not be shipped to the EU. Customers may be able to purchase products from inventory that were placed on the EU market prior to July 22, 2017 until supplies are depleted. Tektronix is committed to helping you with your solution needs. Please contact your local sales representative for further assistance or to determine if alternative product(s) are available. Tektronix will continue service to the end of worldwide support life.
Key features
- Low total capacitive loading minimizes intrusion on circuits
- 20 kΩ input resistance
7.5 Vp-pdynamic range supports a broad range of logic families
- Variety of attachment mechanisms including the high-density D-Max®, Mictor, square pins, and flying leads.
Applications
- Digital hardware validation and debug
- Monitoring, measurement, and optimization of digital hardware performance
- Embedded software integration, debug, and verification
Leading probe solutions for real-time digital systems analysis – P5900 series probes
No test and measurement solution is complete without probing and the consideration of its impact on your system and your measurement time. With the industry's lowest probe loading, the P5900 Series logic analyzer probes protect the integrity of your signal - minimizing the impact on your design. The P5900 Series logic analyzer probes when used with TLA6400 Series logic analyzers make sophisticated logic analysis available at an affordable price. Select from a variety of attachment mechanisms, including the high-density D-Max®, Mictor, and general-purpose.
P5910 17-channel general purpose probe
The 17-channel P5910 provides flexible general-purpose probing, with support for 0.100 in. and 2 mm pin spacing, low input capacitance, and accessories for connecting to many industry-standard connections.

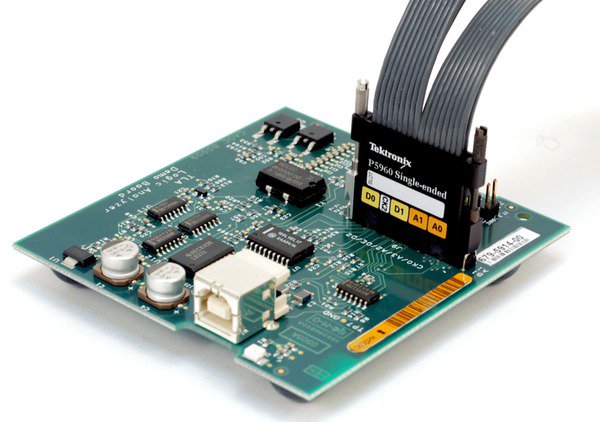

P5960 34-channel D-Max probe
For applications where circuit board space is limited, the 34-channel high-density P5960 D-Max offers the smallest available footprint and a quick connection mechanism.
P5934 34-channel Mictor probe
The P5934 is 34-channel mictor probe with quick connect/disconnect and a positive-latching mechanism to ensure a secure, reliable connection.
Specifications
All specifications are guaranteed unless noted otherwise. All specifications apply to all models unless noted otherwise.
Compatible with TLA6400 series logic analyzers
| P5910 | P5934 | P5960 | |
|---|---|---|---|
| Probe type | Single-ended Data Single-ended Clock (General purpose) | Single-ended Data Single-ended Clock (Mictor 34-channel) | Single-ended Data Single-ended Clock (D-Max® Probing Technology) |
| Number of channels | 17 | 34 | 34 |
| Recommended use | Most general-purpose applications | Applications requiring many channels to be connected quickly in a small footprint | High-performance applications requiring many channels to be connected quickly in a small footprint |
| Attachment to target system | Fits both 0.100 in. and 2 mm square pin configurations | Amp Mictor 34-channel connector | D-Max® probing technology compression cLGA |
P5900 probe specifications
- Input resistance
- 20 kΩ to ground, typical
- Input capacitance
- P5910
- 1.3 pF
- P5934
- 2.0 pF
- P5960
- 0.8 pF
- Minimum digital swing
- 300 mV
- Analog bandwidth 1
- 2 GHz
1Analog bandwidth of P6960 is less with the flying lead set attached.
- Cable length
- P5910
- 1.5 m (5 ft.)
- P5934
- 1.2 m (4 ft.)
- P5960
- 1.5 m (5 ft.)
Ordering information
Probe options
Language options
- Opt. L0
- English manual
- Opt. L99
- No manual
Service options
Customers who choose a Tektronix product receive a support partnership focused on making the deployment and operation of their products successful. Tektronix support teams are committed to providing rapid response. A broad range of flexible services is available at the time of product purchase to meet customer service needs.
The following service options are offered for the P5900 logic analyzer probes.
- Opt. C3
- Calibration Service 3 Years
- Opt. C5
- Calibration Service 5 Years
- Opt. R3
- Repair Service 3 Years (including warranty)
- Opt. R5
- Repair Service 5 Years (including warranty)
Standard accessories
P5910
- 335-2736-xx
- Sheet of probe labels
- 020-2662-xx
- Probe accessory kit provides different means to connect the logic analyzer probe to the SUT.
P5934
- 335-2738-xx
- Sheet of probe labels
- 105-1088-xx
- Latch housing assembly, edge-mount
- 105-1089-xx
- Latch housing assembly, vertical
P5960
- 335-2737-xx
- Sheet of probe labels
- 020-2908-xx
- Probe retention kit for D-Max® Probing Technology (contains 2 retention shrouds)
Recommended accessories
P5910
- 020-2622-xx
- Probe accessory kit provides different means to connect the logic analyzer probe to the SUT
- 020-2711-xx (20 included)
- 20 Extension ground tips
- 131-5638-xx (20 included)
- Probe tip
- 020-2733-xx (20 included)
- IC grabber
- 020-2712-xx (8 included)
- 3-inch ground lead set
- 020-2713-xx (2 included)
- 8-inch ground lead set
- 352-1115-xx (2 included)
- Probe grouper
P5934
- 131-6134-xx
- AMP Mictor Connector, Surface-Mount
- 020-2228-xx (21 included)
- AMP Mictor Connector, Surface-Mount
- 020-2456-xx
- Compression-on-PCB to Mictor Adapter, 34 channel
P5960
- 020-2910-xx (50 included)
- Probe retention kit for D-Max® Probing Technology
- 020-2539-xx
- Post-style probe retention kit for D-Max® Probing Technology
Tektronix is registered to ISO 9001 and ISO 14001 by SRI Quality System Registrar. 52W-29212-4
