Surface Mount Device Interconnects

SMK4 • SMG50 • SureFoot® • ST501 •

更多信息

在线阅读:

SMK4 • SMG50 • SureFoot® • ST501 •

Features & Benefits

Micro KlipChip™ Adapter SMK4
  • Hand Probe Fine-pitch SMD Package
    • 25 mil JEDEC
    • 0.65 mm EIAJ
    • 0.5 mm EIAJ
  • Thin Clip Body Width Allows Many PQFP Clips to Be Mounted Side-by-side and Simultaneously Tested
SureFoot Adapters SF200A and SF500 Series
  • Hand Probe Fine-pitch SMD Packages
    • 25 mil JEDEC
    • 0.65 mm EIAJ
    • 0.5 mm EIAJ
  • SF500 Series for P6561A, P6562A, P6563A, P6240, P6243, P6245, P6209, P6249 and P7240.
  • SF200A Series for P613X Family (3.5 mm) (P6133 Opt. 25, P6134C, P6136 Opt. 25, P6137, P6135A, P6138A, P6139A, P6158, P6339A, P5050.)
SMG50 KlipChip Adapter
  • Access to 0.050 in. Centers PLCC, SOIC and Other Packages

Applications

  • Research and Design
  • Manufacturing Test of SMD Circuitry
  • Servicing of SMD Circuitry
  • Prototype Debug and Design

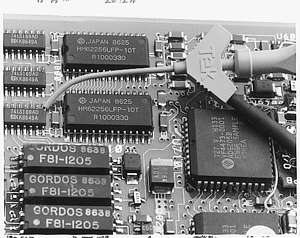

A000_0569-N

SMT KlipChip Adapter.


Surface Mount Device Probing and Interconnects

The increasing use of surface mount technology (SMT) brings many benefits to electronic circuit board (ECB) design and manufacture. Among these are increased circuit density, increased product reliability and lower assembly costs.

Troubleshooting and device interconnection, however, have become more difficult due to decreased device size, tighter lead spacing and increased ECB densities. Tektronix' offering of the following SMT probing and interconnect devices meets these demanding requirements.

SMK4 Micro KlipChip Adapter

The SMK4 is an interface device which can attach to fine-pitch IC leads similar to the SMG50. The difference between the SMK4 and the SMG50 is the size. The SMK4 can be used to attach to PQFP packages up to a pitch of 0.5 mm which is five times smaller than the SMG50.

The kit of four 0.5 mm SMK4 Micro KlipChip Adapters are for use as probe tip accessory replacements with the P6247/P6246 and as a recommended accessory for the probes listed below, which can attach to the SMK4 0.025 in. lead.

The increasing use of surface mount technology (SMT) brings many benefits to electronic circuit board (ECB) design and manufacture. Among these are increased circuit density, increased product reliability, and lower assembly costs.

Troubleshooting and device interconnection, however, have become more difficult due to decreased device size, tighter lead spacing and increased ECB densities. Tektronix' offering of the following SMT probing and interconnect devices meets these demanding requirements.

SMG50 KlipChip Adapter

The SMG KlipChip adapter is an interface device for attachment of logic and analog probes to today's SMDs, DIPs and discrete components. The SMT KlipChip adapter is capable of attaching to components with maximum lead diameters of 0.095 inches and stackable on lead centers of 0.050 inches. Dual sided 0.025 inch lead contacts allow this grabber to be used in multiple signal insertion/acquisition.

Available as package of 20 (SMG50) or singularly (206-0364-01).

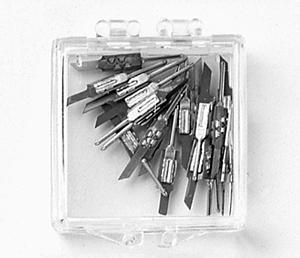

A000_0571-N

SureToe Adapter (ST501).

A000_0572-N

SureFoot SF Series.


SureFoot Adapter

Probing 25 mil JEDEC, 0.65 and 0.5 mm EIAJ Packages

The SureFoot adapter is an integral probe tip and miniature guide that enables fault-free "hands-on" probing of fine-pitch SMD packages. Guided by the IC's leads, the SureFoot adapter's miniature plastic tines align the probe before electrical contact is made. The tines also form a shield between IC leads, preventing the probe tip from shorting adjacent pins.

The SureFoot adapter conforms to EIAJ (Electronic Industry Association of Japan) or JEDEC (Joint Electron Device Engineering Council) packaging standards, assuring quick and reliable probe contact with fine-pitch IC leads.

Several color coded versions of the SureFoot adapter are available, addressing the most common SMD packages. The yellow version fits the 50 mil (JEDEC) center packages. The blue version fits both the 25 mil (JEDEC) and the .65 mm (EIAJ) center packages. Finally, the red versions fit the tighter, 0.5 mm (EIAJ) center packages.

ST501 SureToe™ Adapter

For 0.010 in. spacing

Insulated SureToe Adapter protects adjacent legs. Allowing signal acquisition of its neighbor.

SureFoot Adapter Selection Guide

Package Lead Spacing

Package Standard

Color Code

3.5 mm (Compact) (P613X)

Active SMD Probes P6243/P6245/P6249 P6209/P7240

SMD Probes P6561A/2A/3A

50 mil

JEDEC

Yellow

SF201A

SF501

SF501

25 mil

JEDEC

Blue

SF202A

SF502

SF502

0.65 mm

EIAJ

Blue

SF202A

SF502

SF502

0.5 mm

EIAJ

Red

SF203A

SF503

SF503

0.010 in.

JEDEC/EIAJ





ST501

ST501

SMK4 Use Guide

SMK4 Direct Connection

Used with Probe

Direct Connection to Probe Head

P6561A, P6562A, P6563A, P6243, P6245, P6249, P7240

196-3268-01 Ground Lead with 0.025 in. Receptacle

P6561A, P6562A, P6563A

196-3302-00 6 in. Receptacle Ground Lead

P6131, P6133, P6133 Opt. 25, P6136, 6136 Opt. 25, P6138A, P6139A

196-3305-00 6 in. Receptacle Ground Lead

P6131, P6133, P6133 Opt. 25, P6134, P6134C

196-3382-00 3 in. Receptacle Ground Lead

P6131, P6133, P6133 Opt. 25, P6134, P6134C

196-3465-00 3 in. Ground Lead

P7330/P6330, P6248, P6247, P6246

103-0177-01 Flexible Tip

P61XXB, P6202A, P6204, P6205

206-0193-00 Flex Tip for 0.025 in. Square Pin

P61XXB, P6202A, P6204, P6205

015-0325-00 Dual Lead Adapter

P61XXB, P6202A, P6204, P6205

020-2008-00 Y-lead Adapter

P6240

196-3434-00 Y-lead Adapter

P6330/P7330, P6246, P6247, P6248

Ordering Information

SMK4

Micro KlipChip™ Adapter.

Includes: 4 each adapters.

SMG50

SMT KlipChip Adapter.

Includes: 20 SMT KlipChip.

SF201A (50 mil pitch)

SureFoot Adapter for P613X (3.5 mm) Passive Probes.

Includes: 12 yellow 50 mil/0.65 mm SureFoot Adapter tip guide.

SF202A (25 mil pitch/0.65 mm pitch)

SureFoot Adapter for P613X (3.5 mm) Passive Probes.

Includes: 12 blue 25 mil/0.65 mm SureFoot Adapter tip guides.

SF203A (0.5 mm pitch)

SureFoot Adapter for P613X (3.5 mm) Passive Probes.

Includes: 12 red 0.5 mm SureFoot Adapter tip guides.

ST501 (0.010 in. Pitch)

SureFoot Adapter for P6243, P6245, P6249, P7240 P656XA Series SMD Probes.

-
