Real-Time Spectrum Analyzers
RSA3303A • RSA3308 • WCA230A • WCA280A
泰克对于本技术资料上的产品不再有售。
查看 Tektronix Encore 了解翻新测试设备。
查看这些产品的支持和保修状态。
Features & Benefits
- Trigger
- Tektronix' Exclusive Frequency Mask Trigger Makes Event-based Capture of Transient RF Signals Easy By Triggering on Any Change in the Frequency Domain
- Capture
- All Input Signals up to 15 MHz*1 Spans Are Seamlessly Captured Into Memory
- Long Record Length Enables Complete Analysis Over Time Without Making Multiple Acquisitions
- Interfaces With TekConnect® Probes for RF and Baseband Probing
- Analyze
- Gain a Unique Understanding of Time-varying Transient RF Signals
- Spectrogram Provides a Revealing Picture of RF Signal Frequency and Amplitude Behavior Over Time – Not possible With a Swept Spectrum Analyzer
- Multi-domain Analysis Enables Fast, Complete Signal Analysis in Frequency, Time, Code and Modulation Domains Without Making Multiple Measurements
- Simple Capture and Analysis on RFID Interrogator and Response Signals
- Comprehensive Pulse Measurement Suite
- General Purpose Digital Modulation Analysis
- Spectrum Analyzer View for Traditional Wide Band Signal Analysis
- 3G Measurement Versatility with W-CDMA, cdma2000, 1X EVDO, HSUPA, HSDPA, TD-SCDMA RF and Modulation Analysis (WCA200A Only)
- Signal Source Analysis Simplifies Phase Noise, Jitter and Frequency Settling Measurements
Applications
- System Integration of 3G, and Other RF Systems
- Radar and Pulsed RF Signal Characterization
- RFID System Development and Troubleshooting
- General Purpose Phase Noise and Jitter Signal Analysis
- Characterization of Interfering or Unknown Signals in Spectrum Monitoring and Surveillance
- Troubleshooting RF Components, Modules, or Systems
- Getting Answers to Elusive EMI Diagnostic Problems
*1 20 MHz bandwidth at Baseband.
Trigger, Capture, Analyze Radar, 3G, or Other Time-Varying RF Signals
![A000_5647-N.jpg A000_5647-N](/-/media/sites/default/files/media/image/a000_5647-n.jpg)

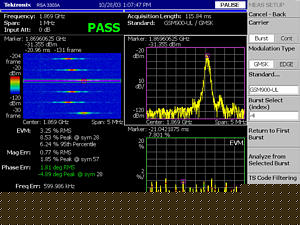

High-resolution spectrogram reveals transient signal behavior that translates to rapid problem solving. Here, 500 kHz sidebands are revealed as part of the transient behavior of a hopping signal as it switches frequencies.

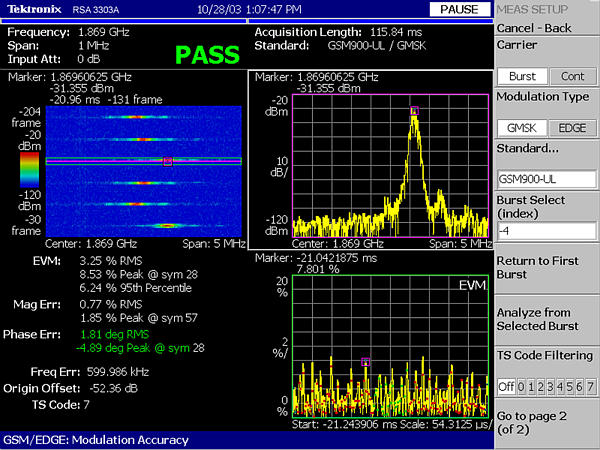

![A000_5648-N.jpg A000_5648-N](/-/media/sites/default/files/media/image/a000_5648-n.jpg)

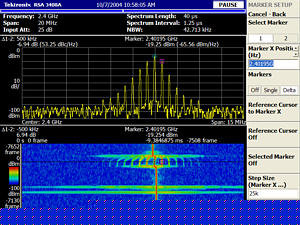

Time-correlated, multi-domain view provides a new level of insight into design or operational problems not possible with conventional analysis solutions.
Get fast resolution to complex problems with Trigger, Capture and Analysis tools
See the frequency and amplitude of your RF signal change over time in a single view. With only a single acquisition, the RSA3300A and WCA200A Series Real-Time Spectrum Analyzers (RTSA) capture a continuous time record of changing RF events, and enables time-correlated analysis in the frequency, time, and modulation domains. You get the functionality of a vector signal analyzer, a wide band spectrum analyzer, plus the unique trigger-capture-analyze capability of RTSA — in one, transportable package.
Trigger
Patented 15 MHz bandwidth Frequency Mask Trigger (FMT) makes it easy to capture transient, low duty-cycle or other difficult to capture signals. An FMT mask is simply configured using a mouse and it can be set up for one or many frequency bands within an analysis span. FMT can monitor for signal appearance/disappearance, or change in amplitude, frequency, bandwidth, spectral shape, and more—all while the instrument user is working on another task. A Power Trigger, working in the time domain and at any Real-Time analysis span, can be armed to monitor for a user-set power threshold to be crossed during a moment in time. A power detector determines total power of all signals in a span which is compared to the user-set threshold.
Capture
Capture once—make multiple measurements as needed. All signals in a Real-Time analysis span—including transients, low duty-cycle and other difficult-to-measure events—are captured together into deep memory where signal data can be accessed at the user's convenience. Record lengths vary depending on span selected—up to 2.56 s at 15 MHz span, 40.96 s at 1 MHz span, or 4096 s at 10 KHz span with Deep Memory Opt. 02. Real-Time capture of small signals is enhanced by –74 dBc third order IM, plus very good phase noise performance and sensitivity. A solid performance front-end serves not only Real-Time and wide band Spectrum Analysis modes, but also on-board vector signal analysis functionality.
The RTPA2A Real Time Probe Adapter extends the capabilities of the Real-Time Spectrum Analyzers (RTSA) by offering additional tools to make debugging today’s high-performance electrical designs easier. Using the RTPA2A with Tektronix RTSA, design engineers can benefit from Tektronix' industry-leading active and differential probes to measure signals on SMD pins, or other challenging circuit features.
Analyze
Time-correlated multi-domain analysis provides engineers with unique insight into time-varying signal behavior, resulting in fast analysis and problem solving. Time-correlated measurements can be made across the frequency, time, and modulation domains. The analysis display called Spectrogram has the ability to overlap individual spectra as close as 40 ns, providing an intuitive view of signal changes over time, ideal for such things as frequency hopping, pulsed signals, modulation switching, settling time, bandwidth changes, relative timing of appearing, and intermittent signals. The RTSAs introduce analysis capabilities that advance productivity for engineers working on components or in RF system design, integration and performance verification, or operations engineers working in networks, spectrum monitoring, or surveillance.
Example Applications Benefiting from Key RSA3300A and WCA200A Capabilities
Analysis Feature | RF Communications Systems | Cellular Devices | Radar, Pulsed Signal Transmission | Surveillance, Spectrum Monitoring | RFID |
---|---|---|---|---|---|
Hi-res Spectrogram | X | X | X | X | X |
Multi-domain Correlation | X | X | X | X | X |
Cellular Standards Analysis (Multiple Options) |
| X |
| X |
|
Advanced Measurement Suite (Opt. 21) | X |
| X | X | X |
AM, FM, PM Analysis | X |
| X | X |
|
Pulsed RF Signal Analysis | X |
| X | X |
|
Pulse Spectrum | X | X | X | X |
|
AM/AM, AM/PM and 1 dB compression (Opt. 21) | X | X | X |
|
|
TekConnect® Probe Adapter for Real-Time Spectrum Analyzers
The RTPA2A Real Time Probe Adapter extends the capabilities of the Real-Time Spectrum Analyzers (RTSA) by offering additional tools to make debugging today’s high-performance electrical designs easier. Using the RTPA2A with Tektronix RTSA, design engineers can benefit from Tektronix' industry-leading active and differential probes to measure signals on SMD pins or other challenging circuit features.
Characteristics
Trigger-related
Trigger Mode - Free run (triggered by acquisition), Triggered (Triggered by event), Single, or Continuous
Trigger Event Source - Power (span BW), Frequency Mask (Opt. 02), External
Pre-/Post-Trigger Setting - Trigger position settable within 0 to 100% of total acquisition length
Trigger Marker Position Timing Uncertainty (Power and External Trigger) - ±2 sample points
FREQUENCY MASK TRIGGER (Opt. 02)
Mask Resolution - 1 bin
Level Range - 0 dBfs*2 to –60 dBfs at 10 dB/div vertical scale
Bandwidth -
Up to 15 MHz: Start frequency ≥20 MHz
Up to 20 MHz: Start frequency <20 MHz
Mask Shape - User-defined
Minimum Horizontal Mask Setting Resolution - <0.2% of span
Uncertainty - ±2 frames
POWER TRIGGER
Level Range - 0 dBfs to –40 dBfs
EXTERNAL TRIGGER
Threshold Voltage - –1.5 V to +1.5 V
Threshold Voltage Setting Resolution - 0.1 V
Input Impedance - >2 kΩ
TRIGGER OUTPUT
Voltage (Output Current <1 mA) - HIGH: >2.0 V; LOW: <0.4 V
*2 dBfs: dB relative to full scale
Capture-related
Real-Time Capture Bandwidth - 15 MHz RF; 20 MHz baseband; 20 MHz using Opt. 03 IQ inputs
A/D Converter - 51.2 MS/s, 14 bits
Minimum Acquisition Length in RTSA/Time/Demod Modes - 1024 samples
Maximum Acquisition Length in RTSA/Time/Demod Modes - 16,384,000 samples; 65,636,000 samples, Opt. 02
Acquisition Length Setting Resolution in RTSA/Time/Demod Modes -
Acquisition Memory Size - 16.4 MSamples; 65.6 M Samples, Opt. 02
Block Size (number of frames) - 1 to 16,000; 1 to 64,000, Opt. 02
Memory Depth (time) and Maximum Time Resolution
Span | Sample Rate (For I and Q) | Record Length | Record Length (Opt. 02) | Spectrum Frame (Time) | Max Time (Resolution) |
---|---|---|---|---|---|
20 MHz (Baseband) | 25.6 MS/s | 0.64 s | 2.56 s | 40 μs | 40 ns |
15 MHz | 25.6 MS/s | 0.64 s | 2.56 s | 40 μs | 40 ns |
10 MHz | 12.8 MS/s | 1.28 s | 5.12 s | 80 μs | 80 ns |
5 MHz | 6.4 MS/s | 2.56 s | 10.24 s | 160 μs | 160 ns |
2 MHz | 3.2 MS/s | 6.4 s | 20.48 s | 320 μs | 320 ns |
1 MHz | 1.6 MS/s | 12.8 s | 40.96 s | 640 μs | 640 ns |
500 KHz | 800 kS/s | 25.6 s | 81.92 s | 1.28 ms | 1.25 μs |
200 KHz | 320 kS/s | 64 s | 204.8 s | 3.2 ms | 3.2 μs |
100 KHz | 160 kS/s | 128 s | 409.6 s | 6.4 ms | 6.4 μs |
50 KHz | 80 kS/s | 256 s | 819.2 s | 12.8 ms | 12.8 μs |
20 KHz | 32 kS/s | 640 s | 2048 s | 32 ms | 32 μs |
10 KHz | 16 kS/s | 1280 s | 4096 s | 64 ms | 64 μs |
5 KHz | 8 kS/s | 2560 s | 8192 s | 128 ms | 128 μs |
2 KHz | 3.2 kS/s | 6400 s | 20480 s | 320 ms | 320 μs |
1 KHz | 1.6 kS/s | 12800 s | 40960 s | 640 ms | 640 μs |
500 Hz | 800 kS/s | 25600 s | 81920 s | 1.28 s | 1.28 ms |
200 Hz | 320 S/s | 64000 s | 204800 s | 3.2 s | 3.2 ms |
100 Hz | 160 S/s | 128000 s | 409600 s | 6.4 s | 6.4 ms |
Analysis-related
Measurement Functions by Mode
Mode | Measurements |
---|---|
SA | Channel Power, Adjacent Channel Power Ratio, Occupied Bandwidth, Emission Bandwidth, Carrier-to-Noise Ratio, Carrier Frequency |
RTSA | Channel Power, Adjacent Channel Power Ratio, Occupied Bandwidth, Emission Bandwidth, Carrier-to-Noise Ratio, Carrier Frequency |
Time | IQ vs. Time, Power vs. Time, Frequency vs. Time, CCDF, Crest Factor Pulse Measurements: Pulse Width, Pulse Peak Power, On/Off Ratio, Pulse Ripple, Pulse Repetition Interval, Duty Cycle, Pulse-Pulse Phase, Channel Power, OBW, EBW, Frequency Deviation (Min pulse length, 20 samples; Max pulse length, 360,000 samples) |
Analog Demod | IQ vs. Time, AM Depth, FM Deviation, PM Deviation, Pulse Spectrum |
Views by Mode
Mode | Views |
---|---|
SA | Spectrum |
SA/Spectrogram | Spectrum, Spectrogram |
RTSA | Spectrum, Spectrogram |
Time | Overview: Power vs. Time, Spectrogram Sub-view: Spectrum Main view: Measurement Result |
Analog Demod | Overview: Power vs. Time, Spectrogram Sub-view: Spectrum Main view: Measurement Result |
![A000_3248-N.jpg A000_3248-N](/-/media/sites/default/files/media/image/a000_3248-n.jpg)

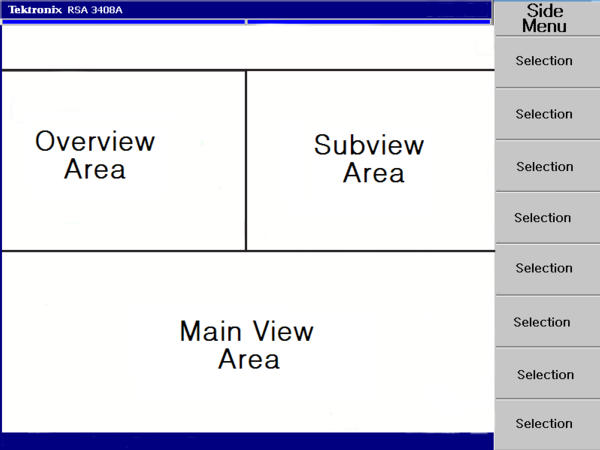

Screen layout, to identify analysis view locations as described in the above chart
MEASUREMENT SPEED
Screen Update Rate - 2 MHz Span, Auto RBW: 19.4/s
Remote Measurement Rate and GPIB Transfer Rate (2 MHz span, auto RBW, spectrum data) - 1.87 waveforms/s, or 6,000 samples/s
RF Center Frequency Switching Time -
<10 ms for 10 MHz frequency change
500 ms for 3 GHz frequency change
TRACES, DISPLAYS, DETECTORS
Traces - Two traces, Spectrum Analyzer mode
Displays - Up to three time-correlated, user-selected displays
Detector - RMS
Trace Types - Normal (RMS), Average, Max Hold, Min Hold
Display Detection - Max, Min, Max/Min
MODULATION ANALYSIS
Analog
AM
Minimum Input Level - –40 dBfs, typical
PM
Minimum Input Level - –40 dBfs, typical
PM Scale, Max, Min - ±180°
FM
Minimum Input Level - –40 dBfs, typical
Range - ±Span/2 from center frequency
DEMODULATION ACCURACY
Analog
AM (–10 dBfs signal, input at CF, 10 to 60% modulation depth) - ±2%
PM (–10 dBfs signal, input at CF) - ±3°
FM (–10 dBfs signal, input at CF) - ±1% of span
RF Performance
FREQUENCY
Frequency Range -
RSA3308A/WCA280A: DC to 8 GHz
RSA3303A/WCA230A: DC to 3 GHz
Center Frequency Setting Resolution - 0.1 Hz
Frequency Marker Readout Accuracy, Baseband - ±(RE*3 × MF*4 + 0.001 × Span + 0.2) Hz
Frequency Marker Readout Accuracy, RF - ±(RE × MF + 0.001 × Span + 2) Hz
Span Accuracy - ±1 bin
RBW Filter Bandwidth Accuracy - 0.1%
Reference Frequency -
Aging per day - 1 × 10-9 (after 30 days of operation).
Aging per year - 1 × 10-7 (after 30 days of operation).
Temperature Drift - 1 × 10-7 (10 to 40 °C).
Total Frequency Error - 2 × 10-7 (within one year of calibration).
Reference Output Level - >0 dBm.
External Reference Input - 10 MHz, –10 dBm to + 6 dBm.
Frequency Span -
Range, Spectrum Analyzer Mode -
50 Hz to 3 GHz (Start Frequency ≥40 MHz)
0 Hz to 40 MHz (Stop Frequency <40 MHz)
Range, Real-Time Spectrum Analyzer Mode -
100 Hz to 15 MHz (RF)
0 Hz to 20 MHz (Baseband)
Resolution Bandwidth Range - 1Hz to 10MHz, automatically selected or user-defined
Accuracy - Within 6.0% ±0.1%
Shape Characteristic - Gaussian with <5:1 shape factor (3:60 dB)
Rectangular, Nyquist, Root Nyquist shapes may also be selected.
*3 RE: Reference Frequency Error
*4 MF: Marker Frequency (Hz)
Minimum Settable RBW (Extended Resolution ON)
Frequency | RBW |
---|---|
Span >2 GHz | 100 kHz |
1 GHz <Span ≤2 GHz | 50 kHz |
500 MHz <Span ≤1 GHz | 20 kHz |
20 MHz <Span ≤500 MHz | 10 kHz |
500 kHz <Span ≤20 MHz | 1 kHz |
200 kHz <Span ≤500 kHz | 500 Hz |
100 kHz <Span ≤200 kHz | 200 Hz |
50 kHz <Span ≤100 kHz | 100 Hz |
20 kHz <Span ≤50 kHz | 50 Hz |
10 kHz <Span ≤20 kHz | 20 Hz |
5 kHz <Span ≤10 kHz | 10 Hz |
2 kHz <Span ≤5 kHz | 5 Hz |
1 kHz <Span ≤2 kHz | 2 Hz |
100 Hz <Span ≤1 kHz | 1 Hz |
Noise Bandwidth Range, RTSA Mode - 313.18 mHz to 400.87 kHz
FFT Performance -
Number of samples per frame - 64 to 8192 (65,536 samples per frame, extended resolution).
Window types - Rectangular, Parzen, Welch, Sine-Lobe, Hanning, Sine-cubed, Sine-to-the-4th, Hamming, Blackman, Rosenfield, Blackman-Harris 3A, Blackman-Harris 3B, Blackman-Harris 4A, Blackman-Harris 4B, FlatTop.
STABILITY
Noise Sidebands, dBc/Hz
Offset | At 1 GHz CF | At 2 GHz CF | At 6 GHz CF | |||
---|---|---|---|---|---|---|
| Spec | Typical | Spec | Typical | Spec | Typical |
1 kHz | -100 | -103 | -96 | -99 | -87 | -90 |
10 kHz | -105 | -108 | -104 | -107 | -104 | -107 |
20 kHz | -105 | -108 | -105 | -108 | -105 | -108 |
30 kHz | -105 | -108 | -105 | -108 | -105 | -108 |
100 kHz | -112 | -115 | -112 | -115 | -112 | -115 |
1 MHz | -132 | -135 | -132 | -135 | -128 | -131 |
5 MHz | -135 | -138 | -135 | -138 | -130 | -133 |
7 MHz | -135 | -138 | -135 | -138 | -130 | -133 |
Residual FM - 2 Hz, pk-pk, typical.
AMPLITUDE
Measurement Range - Displayed average noise level to MAX safe input.
Input Attenuator Range -
RF/Baseband Input - 0 dB to 50 dB, 5 dB step.
IQ Input (Opt. 03) - 0 dB to 30 dB, 10 dB step.
Input Attenuator Setting Uncertainty - ±0.5 dB (at 50 MHz).
Maximum Safe Input Level -
Average Continuous (RF band, RF ATT ≥10 dB) - +30 dB.
MAX DC Voltage -
±0.2 V, RF
±5 V, Baseband
±5 V, IQ input w/ Opt. 03
Log Display Range - 10 μdB/div to 10 dB/div
Linear Display Scale - 10 divisions
Linear Display Units - dBm, dBμV, V, Watts, Hz for FM Demod, Degrees for PM Demod
Marker Readout Resolution, Log - 0.01 dB
Marker Readout Resolution, Linear - 0.001 μV
Frequency Response, 20 °C to 30 °C, RF ATT ≥10 dB
Frequency | Spec | Typical |
---|---|---|
100 kHz — 40 MHz | ±0.5 dB | ±0.3 dB |
40 MHz — 3.0 GHz | ±1.2 dB | ±0.5 dB |
3.0 GHz — 6.5 GHz*5 | ±1.7 dB | ±1.0 dB |
5 GHz — 8 GHz*5 | ±1.7 dB | ± 1.0 dB |
Absolute Amplitude Accuracy at Calibration Point (Baseband at 25 MHz, -10 dBm signal, 0 dB ATT, 20 °C to 30 °C) - ±0.3 dB
Absolute Amplitude Accuracy at Calibration Point (RF at 100 MHz, -20 dBm signal, 0 dB ATT, 20 °C to 30 °C) - ±0.5 dB
Reference Level Setting Range -
1 dB step, RF, -50 dBm to +30 dBm
5 dB step, Baseband, -30 dBm to +20 dBm
5 dB step, IQ, -10 dBm to +20 dBm
Reference Level Accuracy (-10 dBm to -50 dBm at 100 MHz, 10 dB ATT, 20 °C to 30 °C) - ±0.2 dB
Level Linearity in Display Range - ±0.2 dB, spec; ±0.12 dB, typical
SPURIOUS RESPONSE
1 dB Compression (RF ATT = 0 dB, 2 GHz CF) - +2 dBm
3rd Order Inter-modulation Distortion (Ref Level = +5 dBm, RF ATT: adjusted for optimum, total signal power = -7 dBm, CF = 2 GHz) - –74 dBc
2nd Harmonic Distortion (-30 dBm tone at input mixer, 10 MHz to 1750 MHz) - –56 dBc, typical.
Displayed Average Noise Level, Specified, dBm/Hz
Frequency | Spec |
---|---|
10 MHz | –151 |
2 GHz | –150 |
3 GHz | –150 |
7 GHz*5 | –142 |
Displayed Average Noise Level, Typical, dBm/Hz
Frequency | Typical |
---|---|
1 kHz –10 kHz | –144 |
10 kHz –10 MHz | –151 |
10 MHz –100 MHz | –151 |
100 MHz –1 GHz | –150 |
1 GHz – 2 GHz | --150 |
2 GHz –3 GHz | –150 |
3 GHz – 5 GHz*5 | –142 |
5 GHz – 8 GHz*5 | –142 |
Residual Response
Frequency | Spec |
---|---|
1 to 40 MHz (Span =20 MHz, Ref Lvl = –30 dBm, RBW –100 kHz) | –93 dBm |
0.5 to 3.5 GHz (Span =3 GHz, Ref Lvl = –30 dBm, RBW =100 kHz)*5 | –90 dBm |
3.5 to 6.5 GHz (Span =3 GHz, Ref Lvl = –30 dBm, RBW =100 kHz)*5 | –85 dBm |
3.5 to 8 GHz (Span =3 GHz, Ref Lvl = –30 dBm, RBW =100 kHz)*5 | –85 dBm |
Spurious Response with Signal
Frequency | Spec |
---|---|
0 MHz (Span =10 MHz, Ref Lvl =0 dBm, RBW –50 kHz, Signal Frequency =25 MHz, Signal Level = –5 dBm) | –73 dBc |
2 GHz (Span =10 MHz, Ref Lvl =0 dBm, RBW –50 kHz, Signal Frequency =2 GHz, Signal Level = –5 dBm) | –73 dBc |
5 GHz (Span =10 MHz, Ref Lvl =0 dBm, RBW –50 kHz, Signal Frequency =5 GHz, Signal Level = –5 dBm)*5 | –70 dBc |
7 GHz (Span =10 MHz, Ref Lvl =0 dBm, RBW –50 kHz, Signal Frequency =7 GHz, Signal Level = –5 dBm)*5 | –70 dBc |
*5 Frequency >3 MHz available on RSA3308A, WCA280A only
INPUTS AND OUTPUTS
Front Panel
Input Connectors - N type, RF/Baseband; BNC type, IQ, Opt. 03
Input Impedance - 50 Ω
VSWR, RF ATT >10 dB
Frequency | Spec | Typical |
---|---|---|
300 kHz –10 MHz | – | <1.4:1 |
10 MHz – 3 GHz | – | <1.3:1 |
2.5 GHz | <1.4:1 | – |
7.5 GHz | <1.8:1 | – |
Preamp Power Connector - LEMO 6 pin connector - Pin 1: NC; Pin 2: ID1; Pin 3: ID2; Pin 4: -12 V; Pin 5: GND; Pin 6: +12 V.
External Preamp (Opt. 1A) - 100MHz - 3GHz, 20 dB gain, 6.5 dB Noise Figure at 2 GHz (Typical)
Rear Panel
10 MHz REF OUT - 50 Ω, BNC, >–3 dBm
10 MHz REF IN - 50 Ω, BNC, –10 dBm to +6 dBm
EXT TRIG IN - Ext Trig, BNC, High: 1.6 to 5.0 V, Low: 0 to 0.5 V
GPIB Interface - IEEE 488.2
TRIGGER OUT - 50 Ω, BNC, High: >2.0 V, Low: <0.4 V (output current 1 mA)
Side Panel
LAN Interface - Ethernet 10/100Base-T (Standard)
Serial Interface - USB 1.1, 2 ports
VGA Output - VGA compatible, 15 DSUB
General Characteristics
Temperature -
Operating: +10 °C to +40 °C.
Storage: –20 °C to +60 °C.
Warm-up Time - 20 min.
Altitude -
Operating: up to 3000 m (10,000 ft.).
Non-operating: up to 12,000 m (40,000 ft.).
Safety and EMI Compatibility -
UL 61010-1; CSA C22.2 No. 61010-1-04; IEC61010, Second Edition (Self Declaration).
Low Voltage Directive 73/23/EEC, amended by 93/68/EEC; EN61010-1: 2001 Safety Requirements for Electrical Equipment for Measurement Control and Laboratory Use.
EC Council EMC Directive 89/336/EEC, amended by 93/68/EEC.
EN61326-1: 1997 Product Family Standard for Electrical Equipment for Measurement, Control, and Laboratory Use-EMC Requirements.
Electromagnetic Compatibility Framework:1992 AS/NZS 2064.1/2(Industrial, Scientific, and Medical Equipment).
Power Requirements - 100 VAC to 240 VAC, 47 Hz to 63 Hz.
Power Consumption - 400 VA max.
Data Storage - Internal HDD (40 GB), USB port, FDD.
Weight, without options - 19 kg, 42 lbs.
Dimensions -
Without bumpers and feet: 215 mm (H) × 425 mm (D) × 425 mm (W).
With bumpers and feet: 238 mm (H) × 470 mm (D) × 445 mm (W).
Calibration Interval - 1 year.
Warranty - 1 year.
GPIB - SCPI-compatible.
Ordering Information
WCA230A, WCA280A
Real-Time Spectrum Analyzer WCA230A, DC – 3 GHz
Real-Time Spectrum Analyzer WCA280A, DC – 8 GHz.
Includes: User manual, Programmer's manual, Power cord, BNC-N adapter, USB Keyboard and Mouse.
Product Options*6
Opt. 02 - 65.5 MSample Deep Memory, Frequency Mask Trigger.
Opt. 03 - IQ, Differential IQ Inputs.
Opt. 23 - W-CDMA Uplink Analysis.
Opt. 24 - GSM/EDGE Analysis.
Opt. 25 - CDMA 1X Forward/Reverse Link Analysis.
Opt. 26 - 1X EVDO Forward/Reverse Link Analysis.
Opt. 27 - 3GPP Release 5 Downlink (HSDPA) Analysis.
Opt. 28 - TD-SCDMA Analysis.
Opt. 40 - GPP Release 6 (HSUPA) Analysis*7.
Opt. 1A - External Preamp, 100 MHz – 3 GHz, 20 dB gain, 6.5 dB Noise Figure at 2 GHz (typical).
Opt. 1R - Rack mount kit.
Opt. SASW - USB Stand Alone Software Key.
*6 Specifications for Options 21 through 40 can be found in the Real-Time Spectrum Analyzer Software Options datasheet, on www.tektronix.com/RSA.
*7 Option 23 and Option 27 are required for 3GPP Release 6 (HSUPA) Analysis in addition to Option 40.
Upgrades
WCA2UP 02 - 65.5 MSample Deep Memory, Frequency Mask Trigger.
WCA2UP 03 - IQ, Differential IQ Inputs
WCA2UP 23 - W-CDMA Uplink Analysis (customer-installable).
WCA2UP 24 - GSM/EDGE Analysis (customer-installable).
WCA2UP 25 - cdma2000 1x Analysis (customer-installable).
WCA2UP 26 - 1xEV-DO Analysis (customer-installable).
WCA2UP 27 - 3GPP Release 5 Downlink (HSDPA) Analysis (customer-installable).
WCA2UP 28 - TD-SCDMA Analysis Software (customer-installable).
RSA34UP40 - 3GPP Release 6 (HSUPA) Analysis Software Upgrade (customer-installable)*8
WCA2UP 1A - External Preamp, 100 MHz — 3 GHz, 20 dB gain, 6.5 dB Noise Figure at 2 GHz (typical).
WCA2UP 1R - Rack mount kit upgrade for WCA200A Series.
WCA2UP IF - Installation labor for WCA2UPxx (no calibration required).
WCA2UP IFC - Installation labor for WCA2UPxx (with calibration).
RSA3SASW - USB Stand Alone Software Key.
*8 Option 23 and Option 27 are required for 3GPP Release 6 (HSUPA) Analysis in addition to Option 40
RSA3303A, RSA3308A
Real-Time Spectrum Analyzer RSA3303A, DC – 3 GHz
Real-Time Spectrum Analyzer RSA3308A, DC – 8 GHz
Includes: User manual, Programmer's manual, Power cord, BNC-N adapter, USB Keyboard and Mouse.
Product Options*9
Opt. 02 - 65.5 MSample Deep Memory, Frequency Mask Trigger.
Opt. 03 - IQ, Differential IQ Inputs.
Opt. 21 - Advanced Measurement Suite Software.
Opt. 1A - External Preamp, 100 MHz – 3 GHz, 20 dB gain, 6.5 dB Noise Figure at 2 GHz (typical).
Opt. 1R - Rack mount kit.
Opt. SASW - USB Stand Alone Software Key.
Upgrades
RSA3UP 02 - 65.5 MSample Deep Memory, Frequency Mask Trigger.
RSA3UP 03 - IQ, Differential IQ Inputs.
RSA3UP 21 - Advanced Measurement Suite (customer-installable).
WCA2UP 1A - External Preamp, 100 MHz – 3 GHz, 20 dB gain, 6.5 dB Noise Figure at 2 GHz (typical).
WCA2UP 1R - Rack mount kit upgrade for RSA3300A Series.
RSA3UP IF - Installation labor for RSA3UPxx (no calibration required).
RSA3UP IFC - Installation labor for RSA3UPxx (with calibration).
RSA3SASW - USB Stand Alone Software Key.
*9 Specifications for Options 21 through 40 can be found in the Real-Time Spectrum Analyzer Software Options datasheet, on www.tektronix.com/RSA.
Accessories
RTPA2A - Probe Adapter box for TekConnect Probes.
119-4146-00 - RF Near Field Passive Probe Kit.
International Power Plugs
Opt. A0 - North America Power.
Opt. A1 - Universal EURO Power.
Opt. A2 - UK Power.
Opt. A3 - Australia Power.
Opt. A4 - North America Power, 240 V.
Opt. A5 - Switzerland Power.
Opt. A6 - Japan Power.
Opt. A10 - China Power.
Opt. A99 - No Power Cord.
Service Options
Opt. C3 - Calibration Service 3 Years.
Opt. C5 - Calibration Service 5 Years.
Opt. D1 - Calibration Data Report.
Opt. D3 - Calibration Data Report 3 Years (with Opt. C3).
Opt. D5 - Calibration Data Report 5 Years (with Opt. C5).
Opt. R3 - Repair Service 3 Years.
Opt. R5 - Repair Service 5 Years.
Language Options
Opt. L0 - English User/Programmer Manual.
Opt. L5 - Japanese User/Programmer Manual.
