Features & Benefits
Discover
- DPX™ Live RF spectrum display provides an intuitive understanding of time-varying RF signals with color-graded displays based on frequency of occurrence
- Revolutionary DPX displays transients with >48,000 spectrum measurements per second
Trigger
- Tektronix exclusive Frequency Mask Trigger (FMT) offers easy event-based capture of transient RF signals by triggering on any change in the frequency domain
Capture
- DC to 8 GHz frequency range
- All signals in spans up to 36 MHz are captured into memory
- Up to 1.28 s acquisition length at 36 MHz bandwidth provides complete analysis over time without making multiple acquisitions
- Fully preselected and image-free at all times for full dynamic range at any capture bandwidth
- Interfaces with TekConnect® probes for RF probing
- Differential IQ input available
Analyze
- Extensive time-correlated vector spectrum analysis. Multidomain displays connect problems in Time, Frequency, Phase, and Amplitude for quicker understanding of cause and effect when troubleshooting
- Power measurements and signal statistics help you characterize components and systems: ACLR, Power vs. Time, CCDF, PDF, and real-time spectrum emission measurement with user-defined spectrum emission mask
- Pulse measurements including Pulse Width, Duty Cycle, and Pulse-to-Pulse Phase
- Offline analysis available with RSAVu software
- Analog demodulation analysis including Baseband, AM, FM, and PM measurements
- Audio distortion analysis of Baseband, AM, and FM with real-time spectrogram and graphical display of harmonics and spurious. Wide choices of lowpass filters, highpass filters, bandpass filters, and de-emphasis settings.
Applications
- RF debug of components, modules, or systems
- Find interference and unknown signals in spectrum monitoring and management
- Analyze time-variant behavior of standards-based and other radio systems
- Software Defined Radio (SDR) and field tactical radio transceiver measurements
- Characterize radar and pulsed RF signals
- Powerful vector signal analyzer functionality and signal source analysis capability
- Broad range of standard-specific options for analysis of RFID, 3GPP, 3GPP2, and WLAN systems
- Comprehensive analog demodulation and audio distortion measurement for tactical radio and sonar systems
Discover and interpret complex behaviors of your time-variant signals
The RSA3000B Series makes it easy for you to discover design issues that other signal analyzers miss. The revolutionary DPX Live RF spectrum display offers an intuitive live color view of signal transients changing over time in the frequency domain, giving you immediate confidence in the stability of your design or instantly displaying a fault when it occurs. This live display of transients is impossible with other signal analyzers. Once a problem is discovered with DPX, the Real Time Spectrum Analyzer (RTSA) can be set to trigger on the event in the frequency domain, capture a continuous time record of changing RF events and perform time-correlated analysis in all domains. You get the functionality of a high-performance vector signal analyzer, a spectrum analyzer, and the unique discover-trigger-capture-analyze capability of a Real Time Spectrum Analyzer – all in a single package.
![A001_5741-N.jpg A001_5741-N](/-/media/sites/default/files/media/image/a001_5741-n.jpg)
Revolutionary DPX™ spectrum display discovers events that other analyzers miss. This is an off-the-air capture of a frequency-hopping signal jammed by large interference.
Performance You Can Count On
Depend on Tektronix to provide you with performance you can count on. In addition to industry-leading service and support, this product comes backed by a one-year warranty as standard.
Characteristics
Discover
The DPX™ spectrum processing engine brings live analysis of transient events to spectrum analyzers. Performing more than 48,000 frequency transforms per second, transients as brief as 31 μs are displayed in the frequency domain. This is orders of magnitude faster than conventional analysis techniques. Events are color coded by rate of occurrence onto a bitmapped display, providing unparalleled insight into transient signal behavior.
Trigger
The optional Frequency Mask Trigger (FMT) makes it easy to trigger on signals in the frequency domain and capture transient signals in bandwidths up to 36 MHz. The FMT is simply configured to monitor all changes in frequency occupancy within the capture bandwidth. The Power Trigger, working in any capture bandwidth, fires at the instant in time when the RF input signal crosses a user-set power threshold. An external trigger is available for synchronization to test system events.
![A002_2937-N.jpg A002_2937-N](/-/media/sites/default/files/media/image/a002_2937-n.jpg)
FMT and Spectrogram of a fast-hopped signal captured. The left side displays the user-defined Frequency Mask Trigger (FMT), while the right-side spectrogram displays the captured signal hopping pattern.
Capture
Unlike many SA/VSA combination instruments, the RTSA is fully preselected at all times for spurious and image rejection in any combination of capture bandwidth and frequency. Capture of small signals in the presence of large signals is enabled with up to 73 dB Spurious Free Dynamic Range (SFDR) and class-leading image rejection in all capture bandwidths. Capture once with seamless acquisitions and make multiple measurements without recapturing. Record lengths vary depending upon the selected capture bandwidth: up to 1.28 seconds at 36 MHz, 2.56 seconds at 15 MHz, 51.2 seconds at 1 MHz, or 1.42 hours at 10 kHz bandwidth with optional FMT / Deep Memory.
![A002_2938-N.jpg A002_2938-N](/-/media/sites/default/files/media/image/a002_2938-n.jpg)
Unlike a conventional VSA’s capability of quantifying the modulation quality only at the center frequency, the RSA3000B Series can demodulate a captured off-center hopped signal with view of the spectrogram (upper left), frequency versus amplitude (upper right), signal modulation quality (lower left) and Constellation (lower right).
![A002_2939-N.jpg A002_2939-N](/-/media/sites/default/files/media/image/a002_2939-n.jpg)
The RSA3000B Series also provides automatic measurement of the frequency settling time with the built-in Modulation Domain analyzer.
![A002_2764-N.jpg A002_2764-N](/-/media/sites/default/files/media/image/a002_2764-n.jpg)
A Frequency Mask Trigger (FMT) was set to monitor the frequency domain for any changes in the spectrum, and it triggered on transient interference. The spectrogram (lower display) shows the time relationship between the desired good signal and the interfering transient signal. The spectrum display shows what was happening at the precise moment the interfering signal was present in the band. FMT is an essential tool for capturing interfering and unauthorized signals in the presence of desired emitters.
![A002_2763-N.jpg A002_2763-N](/-/media/sites/default/files/media/image/a002_2763-n.jpg)
The Audio Spectrum and Spectrogram allow designers to understand the nature of distortion by viewing harmonics and nonharmonic components over time. Distortion parameters are calculated for each FFT frame in the Spectrogram display.
![A002_2767-N.jpg A002_2767-N](/-/media/sites/default/files/media/image/a002_2767-n.jpg)
The RSA3000B Series supports all of the latest RFID standards including ISO 18000-6, 18000-7, and ISO 15693. As a leading RFID test solution, this delivers the confidence you need from standards-based RF conformance tests to RF troubleshooting in the prototype lab tests.
![A001_1834-N.jpg A001_1834-N](/-/media/sites/default/files/media/image/a001_1834-n.jpg)

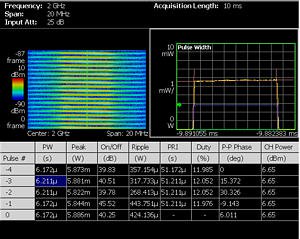

Powerful pulsed-signal analysis for characterization of Radar and other pulsed systems. Automatically measure pulse width, rep rate, pulse power, and other pulse parameters.
Analyze
The RTSA offers analysis capabilities that advance productivity for engineers working on components or in RF system design, integration and performance verification, or operations engineers working in network or spectrum management. Time-correlated data analysis with automatic domain correlation and linked markers accelerates troubleshooting and analysis by pinpointing the root cause of problems in multiple domains.
RSA3000B Series Real Time Spectrum Analyzer
Specification or Feature | RSA3300B Models | RSA3400B Models |
---|---|---|
Tektronix offers multiple models of RSA3000B Series Real Time Spectrum Analyzer to meet a range of needs for frequency coverage, real-time bandwidth, and dynamic range. The table below summarizes the differences between the models. | ||
Freq Range | DC up to 8.0 GHz | DC up to 8.0 GHz |
Max. Capture BW | 15 MHz | 36 MHz |
Triggers, Standard | Level, Free Run, External | Level, Free Run, External |
Triggers, Optional | Frequency Mask 15 MHz BW | Frequency Mask 36 MHz BW |
Digital Phosphor (DPX) Spectrum Update Rate, Max Span, and Min. Signal Duration | >48,000 Spectrums/sec | >48,000 Spectrums/sec |
15 MHz Max Span; Min. Sig. Duration: 41 μs | 36 MHz Max Span; Min. Sig. Duration: 31 μs | |
Memory | 64 MB / 256 MB | 64 MB / 256 MB |
Spurious-free Dynamic Range at Max. Capture BW | –70 dBc/15 MHz | –73 dBc/36 MHz |
DANL, 1 GHz | –150 dBm/Hz | –151 dBm/Hz |
SSB Phase Noise at Specified Offsets at 1 GHz, dBc/Hz (Typical) | 10 kHz: –108 | 10 kHz: –112 |
1 MHz: –133 | 1 MHz: –135 | |
10 MHz: –136 | 10 MHz: –140 | |
Screen Size, User Interface | 8.4 inch Screen, Keyboard, Mouse, Front Panel | 8.4 inch Screen, Keyboard, Mouse, Front Panel |
Interface Ports | GPIB, LAN, USB(2) | GPIB, LAN, USB(2) |
Storage Media | Internal HDD and FDD | Internal HDD and FDD; Optional Removable HDD |
IQ Inputs Option | 20 MHz BW Differential Inputs | 40 MHz BW Differential Inputs |
IF Outputs | Not Available | Standard, 421 MHz, 40 MHz BW |
Digital I and Q Output Option Bandwidth | Not Available | Up to 36 MHz BW |
Memory Depth (Time) and Maximum Time Resolution (RSA3300B Models)
Span | Sample Rate (For I and Q) | Record Length (Standard) | Record Length (Option 02) | Spectrum Frame (Time) | Time Resolution (I and Q) |
---|---|---|---|---|---|
20 MHz (Baseband) | 25.6 MS/s | 0.64 s | 2.56 s | 40 μs | 40 ns |
15 MHz | 25.6 MS/s | 0.64 s | 2.56 s | 40 μs | 40 ns |
10 MHz | 12.8 MS/s | 1.28 s | 5.12 s | 80 μs | 80 ns |
5 MHz | 6.4 MS/s | 2.56 s | 10.24 s | 160 μs | 160 ns |
2 MHz | 3.2 MS/s | 5.12 s | 20.48 s | 320 μs | 320 ns |
1 MHz | 1.6 MS/s | 10.24 s | 40.96 s | 640 μs | 640 ns |
500 kHz | 800 kS/s | 20.48 s | 81.92 s | 1.280 ms | 1.280 μs |
200 kHz | 320 kS/s | 51.20 s | 200.48 s | 3.2 ms | 3.2 μs |
100 kHz | 160 kS/s | 102.40 s | 409.60 s | 6.4 ms | 6.4 μs |
50 kHz | 80 kS/s | 204.80 s | 819.20 s | 12.8 ms | 12.8 μs |
20 kHz | 32 kS/s | 512 s | 2048 s | 32 ms | 32 μs |
10 kHz | 16 kS/s | 1024 s | 4096 s | 64 ms | 64 μs |
5 kHz | 8 kS/s | 2048 s | 8192 s | 128 ms | 128 μs |
2 kHz | 3.2 kS/s | 5120 s | 20480 s | 320 ms | 320 μs |
1 kHz | 1.6 kS/s | 10240 s | 40960 s | 640 ms | 640 μs |
500 Hz | 800 S/s | 20480 s | 81920 s | 1.28 s | 1.28 ms |
200 Hz | 320 S/s | 51200 s | 204800 s | 2.56 s | 2.56 ms |
100 Hz | 160 S/s | 102400 s | 409600 s | 5.12 s | 5.12 ms |
Memory Depth (Time) and Maximum Time Resolution (RSA3400B Models)
Span | Sample Rate (For I and Q) | Record Length (Standard) | Record Length (Option 02) | Spectrum Frame (Time) | Time Resolution (I and Q) |
---|---|---|---|---|---|
40 MHz (Baseband) | 51.2 MS/s | 0.32 s | 1.28 s | 20 μs | 20 ns |
36 MHz | 51.2 MS/s | 0.32 s | 1.28 s | 20 μs | 20 ns |
20 MHz | 25.6 MS/s | 0.64 s | 2.56 s | 40 μs | 40 ns |
10 MHz | 12.8 MS/s | 1.28 s | 5.12 s | 80 μs | 80 ns |
5 MHz | 6.4 MS/s | 2.56 s | 10.24 s | 160 μs | 160 ns |
2 MHz | 2.56 MS/s | 6.4 s | 25.6 s | 400 μs | 400 ns |
1 MHz | 1.28 MS/s | 12.8 s | 51.2 s | 800 μs | 800 ns |
500 kHz | 640 kS/s | 25.6 s | 102.4 s | 1.6 ms | 1.6 μs |
200 kHz | 256 kS/s | 64 s | 256 s | 4.0 ms | 4.0 μs |
100 kHz | 128 kS/s | 128 s | 512 s | 8.0 ms | 8.0 μs |
50 kHz | 64 kS/s | 256 s | 1024 s | 16 ms | 16 μs |
20 kHz | 25.6 kS/s | 640 s | 2560 s | 40 ms | 40 μs |
10 kHz | 12.8 kS/s | 1280 s | 5120 s | 80 ms | 80 μs |
5 kHz | 6.4 kS/s | 2560 s | 10240 s | 160 ms | 160 μs |
2 kHz | 2.56 kS/s | 6400 s | 25600 s | 400 ms | 400 μs |
1 kHz | 1.28 kS/s | 12800 s | 51200 s | 800 ms | 800 μs |
500 Hz | 640 S/s | 25600 s | 102400 s | 1.6 s | 1.6 ms |
200 Hz | 256 S/s | 64000 s | 256000 s | 4.0 s | 4 ms |
100 Hz | 128 S/s | 128000 s | 512000 s | 8.0 s | 8 ms |
Frequency Mask Trigger (Option 02)
Characteristic | Description |
---|---|
Mask Shape | User-defined |
Mask Point Horizontal Resolution | 1 bin |
Level Range | 0 to –60 dBfs at 10 dB/div vertical scale. |
Level Accuracy | Equal to reference level accuracy + frequency response over 0 to –60 dBfs range |
Span Range | |
Start Frequency ≥20 MHz | 100 Hz to 15 MHz (RSA3300B Models) |
Start Frequency <20 MHz | 100 Hz to 20 MHz (RSA3300B Models) |
Start Frequency ≥40 MHz | 100 Hz to 36 MHz (RSA3400B Models) |
Start Frequency <40 MHz | 100 Hz to 40 MHz (RSA3400B Models) |
Minimum Event Duration for 100% Probability of Trigger | 40 μs (RSA3300B Models), 20 μs (RSA3400B Models) (at maximum acquisition bandwidth) Events lasting less than minimum event duration specification will result in degraded Frequency Mask Trigger level accuracy |
Trigger Position Uncertainty | ±2 Frames (For Span = 15 MHz, uncertainty = ±80 μs, For Span = 36 MHz, uncertainty = ±40 μs) |
External Trigger | |
Level Range | –1.5 V to +1.5 V |
Level Setting Resolution | 0.1 V |
Trigger Position Timing Uncertainty | ±2 Samples |
Input Impedance | >2 KΩ (nominal) |
Trigger Output | |
Voltage |
|
High | ≥2.0 V |
Low | <0.4 V (Output current <1 mA) |
Trigger-related
Characteristic | Description |
---|---|
Trigger Modes | Free run, Triggered (Single or Continuous) |
Trigger Event Source | RF Input, External Trigger Input |
Trigger Types | Power Level: Frequency Mask (Option 02) |
Trigger Position | Settable from 0 to 100% of total acquisition length |
Power Level Trigger | |
Level Range | 0 dBfs to –40 dBfs*1 from reference level |
Trigger Bandwidth Range (equal to selected span) | 100 Hz to 15 MHz (RSA3300B Models) |
100 Hz to 36 MHz (RSA3400B Models) | |
Trigger Position Display Timing Uncertainty (Power and External Trigger) | ±2 sample points |
*1 dBfs: dB relative to full scale.
Capture-related
Characteristic | Description |
---|---|
Real-time Acquisition Bandwidth, Maximum | |
Start Frequency ≥20 MHz (RF) | 15 MHz (RSA3300B Models) |
Start Frequency <20 MHz (Baseband) | 20 MHz (RSA3300B Models) |
Start Frequency ≥40 MHz (RF) | 36 MHz (RSA3400B Models) |
Start Frequency <40 MHz (Baseband) | 40 MHz (RSA3400B Models) |
IQ Inputs (Option 03) | 10 MHz (RSA3300B Models) |
40 MHz (RSA3400B Models) | |
A/D Converter | 102.4 MS/s, 14 bit |
Acquisition Memory Size | 64 MB (16.4 MSamples) Standard |
256 MB (65.6 MSamples) Option 02 | |
Minimum Acquisition Length | 1024 Samples |
Acquisition Length Setting Resolution | 1024 Samples |
Analysis-related
Optional Measurement Functions, Standards-based and Offline Analysis
Description | Measurements and Displays | ||||
---|---|---|---|---|---|
General Purpose Digital Modulation Analysis (Option 21) Mod. Formats: BPSK, QPSK, π/4 DQPSK, OQPSK, SOQPSK, 8PSK, D8PSK,16/32/64/128/256-QAM, GMSK, GFSK, C4FM, 2ASK, 2FSK, 4FSK, 8FSK, 16FSK, CPM (per MIL STD 188-181C) Standard support: Bluetooth, TETRA, P25, IEEE 802.15.4 OQPSK (Zigbee) | EVM (RMS, Peak, EVM vs. Time), Magnitude Error (RMS, Peak, Mag Error vs. Time), Phase Error (RMS, Peak, Phase Error vs. Time), Origin Offset, Frequency Error, Gain Imbalance, Quadrature Error, Rho, Constellation, Symbol Table, Symbol Timing Error, FSK Deviations and Error, Eye Diagram PDF: Probability of Occurrence vs. Power Level AM-AM, AM-PM, 1 dB Compression, Crest Factor | ||||
Demodulation Accuracy | |||||
Characteristic | RSA3300B Models | RSA3400B Models | |||
16/64 QAM EVM CF = 2 GHz (typical) | 0.9% (at 100 kS/s) 0.5% (at 1 MS/s) 1.2% (at 4 MS/s) 2.2% (at 10 MS/s) | 0.5% (at 1 kS/s) 0.5% (at 1 MS/s) 0.5% (at 4 MS/s) 0.7% (at 10 MS/s) | |||
QPSK EVM CF = 2 GHz (typical) | 0.5% (at 100 kS/s) 0.5% (at 1 MS/s) 1.2% (at 4 MS/s) 2.7% (at 10 MS/s) | 0.5% (at 100 kS/s) 0.5% (at 1 MS/s) 0.6% (at 4 MS/s) 0.9% (at 10 MS/s) | |||
Modulation Accuracy (typical) | |||||
π/4DQPSK | Total EVM: 0.65% (95 percentile) Test Condition: Symbol Rate = 24.3 kHz Measurement Filter: Root Raised Cosine, alpha = 0.3 Reference Filter: Raised Cosine, alpha = 0.3 Signal Power = –25 dBm | ||||
GMSK | EVM: 0.94% (95 percentile)
Test Conditions: Symbol Rate = 270.833 kHz Gaussian BT = 0.3 Signal Power = –25 dBm | ||||
GFSK | FSK Error (RMS): 1.01% (95 percentile)
Test Conditions: Symbol Rate = 1.152 MHz Gaussian BT = 0.5 Deviation = 288 kHz Signal Power = –25 dBm | ||||
Maximum Symbol Rate | RSA3408B: 51.2 MS/s | ||||
RFID Analysis (Included in Option 21) ISO/IEC 18000 Part 4 Mode 1. ISO/IEC 18000 Part 6 Type A, B, C. ISO/IEC 18092(424k). ISO/IEC 14443 Part 2 Type A, B. EPC Global Generation 1 Class 0, Class 1. ISO/IEC 18000-7 ISA/IEC 15693 | Maximum ERP, Spurious, Power-on and Power-down Timing and Settling, RF Envelope On-width, Off-width and Period, Constellation, Modulation Depth, Modulation Index, Symbol Rate, Bit Rate, Tari Data –0, Tari Data –1, Eye Diagram, Symbol Table, OBW, EBW, FSK Envelope. | ||||
Signal Source Analysis (Included in Option 21) | Integrated Phase Noise, Random Jitter, Periodic Jitter, Settling Time, Spurious, Real-time Phase Noise vs. Time (Noise-o-gram) | ||||
Audio Distortion Analysis (Option 10) | S/N, SINAD, THD, TNHD, Audio Freq, AM modulation, FM deviation, Spectrum, Spectrogram, Hum and Noise Ratio, Harmonics, Nonharmonics | ||||
GSM/EDGE (Option 24) | Modulation Accuracy, Mean Power, Power vs. Time, Spectrum due to Modulation, Spectrum due to Switching | ||||
CDMA2000-1X Forward/Reverse Link (Option 25) | Channel Power, ACPR, Spectrum Emission Mask, CCDF, Modulation Accuracy, Code Domain Power | ||||
1X EVDO Forward/Reverse Link (Option 26) | Channel Power, ACPR, Spectrum Emission Mask, CCDF, Modulation Accuracy, Code Domain Power | ||||
TD-SCDMA (Option 28) | Channel Power, ACLR, CCDF, Modulation Accuracy, Code Domain Power | ||||
802.11 a/b/g/n (Option 29) | Transmit Power, Spectrum Mask, Modulation Accuracy, OFDM Flatness and Linearity, 802.11n Transfer Function, Transfogram, Delay Profile, Delayogram, Transfer Efficiency | ||||
3GPP W-CDMA Release 5 HSDPA (Option 30) | Channel Power, ACLR, Spectrum Emission Mask, CCDF, Modulation Accuracy, Code Domain Power, PRACH, ACK/NACK Analysis | ||||
3GPP Release 6 HSUPA (Option 40) | Channel Power, ACLR, Spectrum Emission Mask, CCDF, Modulation Accuracy, Code Domain Power, Phase Discontinuity, E-RGCH, E-HICH, E-AGCH Analysis | ||||
Frequency Settling Time (typical, under conditions stated below) | |||||
Input Power | –5 dBm | ||||
RF Attenuator | 0 dB | ||||
Smoothing Factor | 1 | ||||
Span | ≥10 MHz | ||||
Input Frequency | 100 MHz to 101 MHz | ||||
Frequency Settling Threshold | 100 kHz | ||||
Span | 100 kHz | ||||
Input Frequency | 10 MHz to 10.01 MHz | ||||
Frequency Settling Threshold – 1 kHz | |||||
Span | Error Frequency Settling Time | Error Frequency Settling Time From Trigger | |||
RSA3400BModels | RSA3300BModels | RSA3400BModels | RSA3300BModels | RSA3400BModels | RSA3300BModels |
36 MHz | 15 MHz | 60 ns | 160 ns | 100 ns | 40 ns |
10 MHz | 10 MHz | 240 ns | 240 ns | 240 ns | 80 ns |
100 kHz | 100 kHz | 19 μs | 19 μs | 19 μs | 13 μs |
Offline Analysis | |||||
RSAVu | All measurements that can be performed on a stored waveform can be performed with RSAVu offline analysis software (except TD-SCDMA and Option 28) |
Standard Measurement Functions by Mode
Measurement Mode | Measurements and Displays |
---|---|
Spectrum Analyzer Mode | Channel Power, Adjacent Channel Power, Occupied Bandwidth, Emission Bandwidth, Carrier-to-Noise Ratio, Carrier Frequency, Spurious Search, dBm/Hz Marker, dBc/Hz Marker, Spectrum Emission Mask |
RTSA Mode | Channel Power, Adjacent Channel Power, Occupied Bandwidth, Emission Bandwidth, Carrier-to-Noise Ratio, Carrier Frequency, Spurious Search, dBm/Hz Marker, dBc/Hz Marker, Real-time Spectrum Emission Mask |
RTSA with Zoom | dBm/Hz Marker, dBc/Hz Marker |
DPX | dBm/Hz Marker, dBc/Hz Marker |
Analog Mod. Analysis | IQ vs. Time, AM Depth, FM Deviation, PM Deviation, Pulse Spectrum |
Time | IQ vs. Time, Power vs. Time, Frequency vs. Time, CCDF, Crest Factor |
Pulse | Pulse Width, Peak Power, Ripple, Pulse Repetition Interval, Duty Cycle, Pulse-to-Pulse Phase, Frequency Deviation, Channel Power, OBW, EBW |
Spectrum Mode Display Traces, Detectors, and Functions
Characteristic | Description |
---|---|
Traces | Two traces |
Detector | Max, Min, Max-Min |
Trace Functions | Normal, Average, Max Hold, Min Hold |
Spectrum Trace Length | 801 points (Auto mode) |
RF Performance
Frequency
Characteristic | Description |
---|---|
Frequency Range | DC up to 8 GHz |
Initial Center Frequency Setting Accuracy | within 10–7 after 10 minute warm-up |
Center Frequency Setting Resolution | 0.1 Hz |
Frequency Marker Readout Accuracy | <20 MHz, ±(RE × MF + 0.001 × Span + 0.2) Hz (RSA3300B Models) |
≥20 MHz, ±(RE × MF + 0.001 × Span + 2) Hz (RSA3300B Models) | |
<40 MHz, ±(RE × MF + 0.001 × Span + 0.2) Hz (RSA3400B Models) | |
≥40 MHz, ±(RE × MF + 0.001 × Span + 2) Hz (RSA3400B Models) | |
Note: RE = Reference Frequency Error, MF = Marker Frequency (Hz) | |
Span Accuracy | ±0.3% (Auto mode) |
Reference Frequency | |
Aging per Day | 1 × 10–9 (after 30 days of operation) |
Aging per Year | 1 × 10–7 (after 30 days of operation) |
Temperature Drift | 1 × 10–7 (10 to 40 ºC). |
Total Frequency Error | 2 × 10–7 (within one year after calibration) |
Reference Output Level | >0 dBm |
External Reference Input Frequency | 10 MHz |
External Reference Input Level Range | –10 dBm to + 6 dBm, Spurious level must be < –80 dBc within 100 kHz offset |
Resolution Bandwidth (Spectrum Analysis Mode)
Characteristic | Description |
---|---|
Range | 1 Hz to 10 MHz (auto-coupled or user-selected (arbitrary) ) |
Shape | 1 Hz to 10 MHz – Approximately Gaussian, shape factor <5:1 (60:3 dB) typical. Rectangular, Nyquist and Root Nyquist shapes may also be selected. |
Accuracy | Within 6% (referenced to –3 dB BW). ±0.1% (referenced to Noise BW) |
Minimum Settable Spectrum Analysis RBW vs. Span Extended Resolution ON
Frequency Span | RBW |
---|---|
>2 GHz | 100 kHz |
>1 GHz - 2 GHz | 50 kHz |
>500 MHz - 1 GHz | 20 kHz |
>20 MHz - 500 MHz | 10 kHz |
>500 kHz - 20 MHz | 1 kHz |
>200 kHz - 500 kHz | 500 Hz |
>100 kHz - 200 kHz | 200 Hz |
>50 kHz - 100 kHz | 100 Hz |
>20 kHz - 50 kHz | 50 Hz |
>10 kHz - 20 kHz | 20 Hz |
>5 kHz - 10 kHz | 10 Hz |
>2 kHz - 5 kHz | 5 Hz |
>1 kHz - 2 kHz | 2 Hz |
>100 Hz - 1 kHz | 1 Hz |
Frequency Resolution(RTSA Mode and FFT Analysis in Spectrum Mode)
Characteristic | Description |
---|---|
Noise Bandwidth Range, RTSA Mode | 0.250545 Hz to 100.218 kHz |
FFT Performance, Spectrum Mode | Number of samples per frame: 64 to 8192 (65,536 samples per frame, extended resolution) |
Window Types | Rectangular, Parzen, Welch, Sine-Lobe, Hanning, Sine-Cubed, Sine to the 4th, Hamming, Blackman, Rosenfield, Blackman-Harris 3A, Blackman-Harris 3B, Blackman-Harris 4A, Blackman-Harris 4B, FlatTop |
DPX Digital Phosphor Spectrum Processing
Characteristic | Description |
---|---|
Spectrum Processing Rate | 48,000/s, span-independent |
Number of Traces | 2 |
Trace Types | Color-graded bitmap, +Peak, Max Hold, –Peak, Min-Hold, Average |
Minimum Signal Duration for 100% Probability of Intercept | 41 μs (RSA3300B Models) |
31 μs (RSA3400B Models) | |
Span Range | 100 Hz to 15 MHz (RSA3300B Models) |
100 Hz to 36 MHz (RSA3400B Models) | |
Resolution BW Accuracy –7% |
Resolution BW Range vs. Span (DPX)
Acquisition Bandwidth | RBW (Min) | |
---|---|---|
| RSA3300B Models | RSA3400B Models |
36 MHz |
| 300 kHz |
20 MHz |
| 200 kHz |
15 MHz | 200 kHz |
|
10 MHz | 100 kHz | 100 kHz |
5 MHz | 30 kHz | 30 kHz |
2 MHz | 20 kHz | 20 kHz |
1 MHz | 10 kHz | 10 kHz |
500 kHz | 5 kHz | 5 kHz |
200 kHz | 2 kHz | 2 kHz |
100 kHz | 1 kHz | 1 kHz |
50 kHz | 500 Hz | 500 Hz |
20 kHz | 200 Hz | 200 Hz |
10 kHz | 100 Hz | 100 Hz |
5 kHz | 50 Hz | 30 Hz |
2 kHz | 20 Hz | 20 Hz |
1 kHz | 10 Hz | 10 Hz |
500 Hz | 5 Hz | 3 Hz |
200 Hz | 2 Hz | 2 Hz |
100 Hz | 1 Hz | 1 Hz |
Stability
Residual FM - <2 Hz p-p, typical
Phase Noise Sidebands, dBc/Hz at Specified Center Frequency (CF).
Noise Sidebands, dBc/Hz (RSA3300B Models)
| RSA3303B, RSA3308B | RSA3308B | ||||
---|---|---|---|---|---|---|
| At 1 GHz CF | At 2 GHz CF | At 6 GHz CF | |||
Offset | Spec | Typical | Spec | Typical | Spec | Typical |
1 kHz | ≤ –100 | ≤ –103 | ≤ –96 | ≤ –99 | ≤ –87 | ≤ –90 |
10 kHz | ≤ –105 | ≤ –108 | ≤ –104 | ≤ –107 | ≤ –104 | ≤ –107 |
20 kHz | ≤ –105 | ≤ –108 | ≤ –105 | ≤ –108 | ≤ –105 | ≤ –108 |
30 kHz | ≤ –105 | ≤ –108 | ≤ –105 | ≤ –108 | ≤ –105 | ≤ –108 |
100 kHz | ≤ –112 | ≤ –115 | ≤ –112 | ≤ –115 | ≤ –112 | ≤ –115 |
1 MHz | ≤ –132 | ≤ –135 | ≤ –132 | ≤ –135 | ≤ –128 | ≤ –131 |
5 MHz | ≤ –135 | ≤ –138 | ≤ –135 | ≤ –138 | ≤ –130 | ≤ –133 |
7 MHz | ≤ –135 | ≤ –138 | ≤ –135 | ≤ –138 | ≤ –130 | ≤ –133 |
Noise Sidebands, dBc/Hz (RSA3400B Models)
| At 1 GHz CF | At 2 GHz CF | At 6 GHz CF | |||
---|---|---|---|---|---|---|
Offset | Spec | Typical | Spec | Typical | Spec | Typical |
1 kHz | ≤ –105 | ≤ –107 | ≤ –103 | ≤ –105 | ≤ –97 | ≤ –99 |
10 kHz | ≤ –110 | ≤ –112 | ≤ –109 | ≤ –111 | ≤ –106 | ≤ –108 |
100 kHz | ≤ –112 | ≤ –115 | ≤ –112 | ≤ –115 | ≤ –111 | ≤ –113 |
1 MHz | ≤ –132 | ≤ –135 | ≤ –132 | ≤ –135 | ≤ –132 | ≤ –134 |
5 MHz | ≤ –138 | ≤ –140 | ≤ –138 | ≤ –140 | ≤ –137 | ≤ –139 |
10 MHz | ≤ –138 | ≤ –140 | ≤ –138 | ≤ –140 | ≤ –137 | ≤ –139 |
Amplitude (Specifications excluding mismatch error)
Characteristic | Description |
---|---|
Measurement Range | Displayed Average Noise Level to Maximum Safe Input |
Input Attenuator Range | |
RF/Baseband input | 0 dB to 50 dB, 2 dB step at <3.5 GHz; 10 dB step at ≥3.5 GHz (RSA3300B Models) |
0 dB to 55 dB, 5 dB step (RSA3400B Models) | |
IQ Input (Option 03) | 0 dB to 30 dB, 10 dB step (RSA3300B Models) |
0 dB to 35 dB, 5 dB step (RSA3400B Models) | |
Maximum Safe Input Level | |
Average Continuous (RF Band, RF ATT ≥10 dB) | +30 dBm |
MAX DC Voltage | RF Band, ±0.2 V, Baseband, ±5 V, IQ input,Option 03. ±5 V |
Maximum Measurable Input Level | Average Continuous (RF ATT: Auto): +30 dBm |
Log Display Scale | 10 μdB/div to 10 dB/div |
Display Divisions | 10 divisions |
Display Units | dBm, dBμV, Volts, Watts, Hz for Frequency Measurements, and Degrees for Phase Measurements |
Marker Readout Resolution, dB units | 0.01 dB |
Marker Readout Resolution, Volts units | 0.001 μV |
Reference Level Setting Range | |
RF | –50 dBm to +30 dBm, 1 dB step |
Baseband | –30 dBm to +20 dBm, 5 dB step |
IQ Inputs (Option 03) | –10 dBm to +20 dBm, 5 dB step |
Level Linearity over Display Range | ±0.2 dB, spec; ±0.12 dB, typical |
Frequency Response (20 °C to 30 °C, Att. ≥10 dB)
Frequency | Spec | Typical |
---|---|---|
100 kHz - 40 MHz | ±0.5 dB | ±0.3 dB |
>40 MHz - 3.5 GHz | ±1.2 dB | ±0.5 dB |
>3.5 GHz - 6.5 GHz | ±1.7 dB | ±1.0 dB |
>6.5 GHz - 8 GHz | ±1.7 dB | ±1.0 dB |
Amplitude Accuracy (–20 dBm signal, 0 dB ATT, 20 °C to 30 °C)
Characteristic | Description |
---|---|
Absolute Amplitude Accuracy at Calibration Point | |
RF | ±0.5 dB at 50 MHz (RSA3300B Models) |
±0.5 dB at 100 MHz (RSA3400B Models) | |
Baseband | ±0.3 dB at 10 MHz (RSA3300B Models) |
±0.3 dB at 25 MHz (RSA3400B Models) | |
Input Attenuator Setting Uncertainty | ±0.5 dB (RSA3300B Models) |
±0.2 dB (RSA3400B Models) | |
Reference Level Accuracy | ±0.2 dB (–10 dBm to –50 dBm at 50 MHz) (RSA3300B Models) |
±0.2 dB (–10 dBm to –50 dBm at 100 MHz) (RSA3400B Models) | |
VSWR | (Att ≥10 dB, Preamp OFF), typical |
< 1.4:1 (300 kHz to 40 MHz), < 1.3:1 (40 MHz to 3 GHz), < 1.4:1 (3 GHz to 8 GHz) (RSA3308B and RSA3400B Models) |
FeliCa™ RFID Test Conditions*2, 3
Characteristic | Description |
---|---|
Amplitude Accuracy (Variable Attenuator) | Absolute Accuracy: ±0.57 dB (99 percentile, 2.58σ) Relative Accuracy: ±0.15 dB (99 percentile, 2.58σ)
Test Conditions: Center Frequency: 13.56 MHz Span: 5 MHz RF Attenuator Setting: 0 to 14 dB Input Power Range: 0 to –20 dB for Full Scale |
Amplitude Accuracy (Fixed Attenuator) | Absolute Accuracy: ±0.45 dB (99 percentile, 2.58σ) Relative Accuracy: ±0.15 dB (99 percentile, 2.58σ)
Test Conditions: Center Frequency: 13.56 MHz Span: 5 MHz RF Attenuator Setting: 0 dB Input Power Range: 0 to –20 dB for Full Scale |
Repetitive Amplitude Accuracy | Repetitive Accuracy: ±0.04 dB (99 percentile, 2.58σ)
Test Conditions: Center Frequency: 13.56 MHz Span: 5 MHz Reference Level: 0 dBm Input Power: –10 dBm Within 1 hour after Self Gain Calibration |
AM Modulation Index Accuracy | Accuracy: ±0.17% (99 percentile, 2.58σ)
Test Conditions: Center Frequency: 13.56 MHz Span: 5 MHz Carrier Level: +4 dBm AM Modulation Index Range: 1% to 10% AM Frequency: 212 kHz, Sinusoidal Wave |
ASK Modulation Index Accuracy | Accuracy: ±0.21% (99 percentile, 2.58σ)
Setting Conditions: Center Frequency: 13.56 MHz Span: 5 MHz Carrier Level: +4 dBm
At RFID Analysis Mode on RSA: ASK Modulation Index Range: 1% to 10% ASK Frequency: 212 kHz, Square Wave |
*2 FeliCa is the contactless IC card technology developed by Sony Corporation.
*3 FeliCa is a trademark of Sony Corporation.
Distortion
Characteristic | Description |
---|---|
3rd Order Intermodulation Distortion (Total Signal Power = –7 dBm, Ref Level +5 dBm,Attenuator adjusted for optimum performance) | |
Frequency | 3rd Order IM |
100 MHz to 3 GHz | < –74 dBc (RSA3300B Models) |
3 GHz to 8 GHz | < –72 dBc (RSA3308B only) |
2.0 GHz | < –78 dBc (RSA3400B Models) |
2nd Harmonic Distortion (–30 dBm tone at input mixer) | |
Frequency | 2nd Harmonic Distortion, Typical |
10 MHz to 1.5 GHz | < –56 dBc (RSA3300B Models) |
10 MHz to 1.75 GHz | < –56 dBc (RSA3308B only) |
10 MHz to 1.4 GHz | < –65 dBc (RSA3400B Models) |
1.4 GHz to 1.75 GHz | < –70 dBc (RSA3400B Models) |
Displayed Average Noise Level (Input Terminated)
Frequency | Specification |
---|---|
1 kHz - 10 kHz | –144 dBm/Hz |
>10 kHz - 100 MHz | –151 dBm/Hz |
>100 MHz - 3 GHz | –150 dBm/Hz |
>3 GHz - 8 GHz | –142 dBm/Hz |
Residual Response
(Input Terminated, Ref. Level = –30 dBm, RBW = 100 kHz)
RSA3303B Model
Frequency and Span | Specification |
---|---|
1 MHz to 20 MHz,Span 20 MHz | –93 dBm |
0.5 GHz to 3 GHz,Span 3 GHz | –90 dBm |
RSA3308B Model
Frequency and Span | Specification |
---|---|
1 MHz to 20 MHz,Span 20 MHz | –93 dBm |
0.5 GHz to 3.5 GHz,Span 3 GHz | –90 dBm |
3.5 GHz to 8 GHz,Span 3 GHz | –85 dBm |
RSA3408B Model
Frequency and Span | Specification |
---|---|
1 MHz to 40 MHz,Span 20 MHz | –93 dBm |
0.5 GHz to 3.5 GHz,Span 3 GHz | –90 dBm |
3.5 GHz to 8 GHz,Span 3 GHz | –85 dBm |
Spurious Response with Signal
Signal Frequency | Spurious Response |
---|---|
(Signal at Center Frequency, Span = 10 MHz, Ref Lvl = 0 dBm, RBW = 50 kHz, Signal Level = –5 dBm) | |
25 MHz | –73 dBc |
2 GHz | –73 dBc |
5 GHz | –70 dBc |
5 GHz | –70 dBc |
Adjacent Channel Leakage Ratio Dynamic Range
| ACLR | |
---|---|---|
Signal Type, Measurement Mode | RSA3300B Models | RSA3400B Models |
(Typical, CF = 2.1425 GHz, with test-signal amplitude adjusted for optimum performance) | ||
3GPP Downlink, 1 DPCH | Adjacent Alternate | Adjacent Alternate |
Real-time (Spec.) | –60 dB - 66 dB | –66 dB - 68 dB |
Stepped (Typical) | –63 dB - 70 dB | –70 dB - 72 dB |
IF Frequency Response and IF Phase Linearity - (400 MHz Center Frequency, 36.6 MHz BW, Typical) (RSA3400B Models)
Amplitude – ±0.3 dB
Phase – ±2.5°
Analog Modulation Analysis
Characteristic | Description |
---|---|
Displays | Amplitude vs. Time, Frequency vs. Time, Phase vs. Time |
Measurements | |
AM | +AM, –AM, Total AM, Modulation Depth |
FM | +peak, –peak, peak-to-peak, (peak-to-peak)/2, RMS |
PM | Phase at marker |
Accuracy | (–10 dBfs signal, input at CF, typical) |
AM | ±2% (modulation depth 10% to 60%) |
FM | ±1% of span |
PM | ±3° |
Audio Distortion Analysis
Characteristic | Description |
---|---|
Demodulation Types | Baseband, AM and FM |
Measurement Range | 20 Hz to 100 kHz |
Displays | Spectrum and Spectrogram |
Measurements | S/N, SINAD, THD, TNHD, Hum and Noise Ratio, Audio Frequency |
Audio Filters |
|
De-emphasis | 25 μs, 50 μs, 75 μs, 750 μs |
Lowpass Filters | 3 kHz, 15 kHz, 30 kHz, 80 kHz |
Highpass Filters | 50 Hz, 300 Hz, 400 Hz |
CCITT |
|
C-Message |
|
Accuracy |
|
Distortion | ±1 dB (distortion products > –70 dB from fundamental tone) |
SINAD | ±1 dB (SINAD levels <70 dB) |
Residual Distortion and Noise | –80 dB or 15 uV, 20 Hz to 20 kHz |
Audio Frequency | ±0.1% when analyzer and source share common reference (signal duration under bursted conditions > 1 second) |
Pulse Measurements
Characteristic | Description |
---|---|
Displays | Pulse Measurement Table, Pulse Trace |
Measurements | Pulse Width, Pulse Peak Power, On/Off Ratio, Pulse Ripple, Pulse Repetition Interval, Duty Cycle, Pulse-Pulse Phase, Channel Power, OBW, EBW, Frequency Deviation |
Minimum Pulse Width for Detection | 20 samples (RSA3300B Models = 800 ns at maximum sample rate, RSA3400B Models = 400 ns at maximum sample rate) |
Maximum Pulse Length | 260,000 samples |
Inputs and Outputs
Characteristic | Description |
---|---|
Front Panel | |
RF and Baseband Input Connector | N type, 50 Ω |
I and Q Inputs (Option 03) – BNC Type | |
Preamp Power Connector | Lemo, 6 poles: |
Pin 1 = NC | |
Pin 2 = ID1 | |
Pin 3 = ID2 | |
Pin 4 = –12 V | |
Pin 5 = GND | |
Pin 6 = +12 V | |
Rear Panel | |
Analog IF Output | BNC Type, Frequency – 421 MHz (RSA3400B Models) |
10 MHz REF OUT | 50 Ω, BNC, > –3 dBm |
10 MHz REF IN | 50Ω, BNC, –10 dBm to +6 dBm |
EXT TRIG IN | Ext Trig, BNC, High: 1.6 to 5.0 V, Low: 0 to 0.5 V |
GPIB Interface | IEEE 488.2 |
Trigger Out | 50 Ω, BNC, High: >2.0 V, Low: <0.4 V (Output current 1 mA) |
Digital IQ Output (RSA3400B Models Option 05) | |
Connector Type | MDR (3M) 50 pin × 2 |
Data Output | |
I data | 16 bit LVDS |
Q data | 16 bit LVDS |
Control Output | Clock: LVDS, MAX 51.2 MHz |
Control Input | IQ data output enabled, connecting GND enables output of IQ data |
Clock Rising Edge to Data Transition Time (hold time) | >5 ns |
Data Transition to Clock Rising Edge (setup time) | >5 ns |
Side Panel | |
LAN Interface Ethernet | 10/100BASE-T |
Serial Interface | USB 1.1, two ports |
VGA Output | VGA compatible, 15 DSUB |
Floppy Disk Drive | 3.5 inch, 1.44 MB |
Note: Data from Option 05 requires application of correction factors to IQ data to achieve similar RF performance to RSA3408B.
General Characteristics
Characteristic | Description |
---|---|
Temperature Range | |
Operating | +10 °C to +40 °C |
Storage | –20 °C to +60 °C |
Warm-up Time | 20 minutes |
Operating Altitude | |
Operating | Up to 3000 m (Approximately 10,000 ft.) |
Nonoperating | Up to 12,190 m (40,000 ft.) |
Safety and Electromagnetic Compatibility | UL 61010-1; CSA C22.2 No. 61010-1-xx |
IEC61010, second edition (Self Declaration) | |
Low Voltage Directive 2006/95/EC; EN61010-1: 2001 Safety requirements for Electrical Equipment for Measurement, Control, and Laboratory Use | |
EC Council EMC Directive 2004/108/EEC;EN61326:1997 Product Family Standard for Electrical Equipment for Measurement, Control, and Laboratory Use – EMC Requirements | |
Radio communications Act:1992, EMC Regulatory Arrangements, AS/NZS CISPR 11 (Industrial, Scientific, and Medical Equipment) | |
Power Requirements | 90 VAC to 250 VAC, 47 Hz to 63 Hz(RSA3300B Models) |
90 VAC to 264 VAC, 47 Hz to 63 Hz(RSA3400B Models) | |
Power Consumption | 400 VA maximum |
Data Storage | Internal HDD, USB ports, FDD, Removable HDD (RSA3400B Models Option 06) |
Calibration Interval | One year |
Warranty | One year |
GPIB | SCPI-compatible, IEEE488.2 compliant |
Physical Characteristics
Dimensions | mm | in. |
---|---|---|
Without bumpers and feet | 215 mm (H) × 425 mm (D) × 425 mm (W) | 8.5 in. (H) × 16.7 in. (D) × 16.7 in. (W) |
With bumpers and feet | 238 mm (H) × 470 mm (D) × 445 mm (W) | 9.4 in. (H) × 17.5 in. (D) × 18.5 in. (W) |
Weight | kg | lb. |
With all options | 20 kg | 44 lb. |
Ordering Information
RSA3303B
Real Time Spectrum Analyzer, DC - 3 GHz
RSA3308B
Real Time Spectrum Analyzer, DC - 8 GHz
RSA3408B
Real Time Spectrum Analyzer, DC - 8 GHz
All Include: User Manual, Programmer's Manual (On CD), Power Cord, BNC-N Adapter, USB Keyboard, USB Mouse, Front Cover, One-year Warranty.
Options
Option | Description |
---|---|
Opt. 02 | 65.5 MSample Deep Memory, Frequency Mask Trigger |
Opt. 03 | IQ, Differential IQ inputs |
Opt. 05 | Digital IQ Output (RSA3400B Models only) |
Opt. 06 | Removable HDD (40 GB) (RSA3400B Models only) |
Opt. 10 | Audio Distortion Analysis |
Opt. 21 | Advanced Measurements Suite (GP Mod. Analysis, RFID, Sig. Source) |
Opt. 24 | GSM/EDGE Analysis |
Opt. 25 | CDMA 1X Forward/Reverse Link Analysis |
Opt. 26 | 1X EVDO Forward/Reverse Link Analysis |
Opt. 28 | TD-SCDMA Analysis |
Opt. 29 | WLAN 802.11a/b/g/n Analysis (RSA3400B Models only) |
Opt. 30 | 3GPP Release 99 (W-CDMA) and Release 5 UL/DL (HSDPA) Analysis |
Opt. 40 | 3GPP Release 6 (HSUPA UL/DL) Analysis (requires Opt. 30) |
Application Software and Accessories
SW/Accessory | Description |
---|---|
RSAVu | Offline Analysis Software for Real Time Spectrum Analyzers, Oscilloscopes, and Logic Analyzers. Free demo version can be downloaded from /rsa. See RSAVu data sheet for more details. |
Extra Hard Drive | Extra 40 GB Removable Hard Drive for use with Opt. 06. Order part number 650-5150-xx (RSA3400B Models only) |
RSA3KR Rackmount | Rackmount RSA33/34B Series Real Time Spectrum Analyzers (customer installable) |
RTPA2A | Adapter for use with TekConnect Active and Passive Probes |
E and H Near-field probes | For EMI troubleshooting. Order part number 119-4146-xx |
International Power Plugs
Option | Description |
---|---|
Opt. A0 | North America |
Opt. A1 | Universal EURO |
Opt. A2 | United Kingdom |
Opt. A3 | Australia |
Opt. A4 | 240 V North America |
Opt. A5 | Switzerland |
Opt. A6 | Japan |
Opt. A10 | China |
Opt. A11 | India |
Opt. A99 | No Power Cord or AC Adapter |
Manuals
Option | Order Number |
---|---|
Additional User Manual, Paper | |
English | 071-2363-xx (RSA3300B Models) |
071-2364-xx (RSA3400B Models) | |
Japanese | 071-2362-xx (RSA3300B Models) |
071-2365-xx (RSA3400B Models) | |
Service Manual(Paper, English) | 071-2367-xx (RSA3300B Models) |
071-2366-xx (RSA3400B Models) | |
Operator Manual(Paper, Russian) | 071-2369-xx (RSA3000 Series) |
Service
Option | Description |
---|---|
Opt. CA1 | Single Calibration or Functional Verification |
Opt. C3 | Calibration Service 3 Years |
Opt. C5 | Calibration Service 5 Years |
Opt. D1 | Calibration Data Report |
Opt. D3 | Calibration Data Report 3 Years (with Opt. C3) |
Opt. D5 | Calibration Data Report 5 Years (with Opt. C5) |
Opt. G3 | Complete Care 3 Years (includes loaner, scheduled calibration and more). RSA3303B, RSA3408B only |
Opt. G5 | Complete Care 5 Years (includes loaner, scheduled calibration and more). RSA3303B, RSA3408B only |
Opt. R3 | Repair Service 3 Years |
Opt. R5 | Repair Service 5 Years |
Upgrades
RSA3BUP (RSA3300B Models)
RSA34BUP (RSA3400B Models)
Option | Description |
---|---|
Opt. 02 | 65.5 MSample Deep Memory, Frequency Mask Trigger (customer installable) |
Opt. 03 | IQ, Differential IQ inputs (customer installable) |
Opt. 05 | Digital IQ Output (customer installable) (RSA3400B Models only) |
Opt. 06 | Removable HDD (RSA3400B Models only) |
Opt. 10 | Audio Distortion Analysis |
Opt. 21 | Advanced Measurements Suite (customer installable) |
Opt. 24 | GSM/EDGE Analysis (customer installable) |
Opt. 25 | CDMA 1X Forward/Reverse Link Analysis(customer installable) |
Opt. 26 | 1X EVDO Forward/Reverse Link Analysis(customer installable) |
Opt. 28 | TD-SCDMA Analysis (customer installable) |
Opt. 29 | WLAN 802.11a/b/g/n Analysis (customer installable) (RSA3400B Models only) |
Opt. 30 | 3GPP Release 99 (W-CDMA) and Release 5 (W-CDMA) UL/DL Analysis (customer installable) |
Opt. 40 | 3GPP Release 6 (HSUPA UL/DL) Analysis (requires Opt. 30, customer installable) |
Opt. IF | Installation labor for RSA34BUPxx (no calibration required) |
Opt. IFC | Installation labor for RSA34BUPxx (with calibration) |
Languages
Option | Description |
---|---|
User/Programmer Manual | |
Opt. L0 | English |
Opt. L5 | Japanese |
Opt. L10 | Russian |
