PSPL5361 14 dB 5x Pick-off Tee
PSPL5361 Datasheet
泰克对于本技术资料上的产品不再有售。
查看 Tektronix Encore 了解翻新测试设备。
查看这些产品的支持和保修状态。
The PSPL5361 is a broadband, resistive pick-off tee. The pick-off Port 3 output is a 1/5 scale replica of the signal passing through the tee. The PSPL5361 exhibits excellent through-line insertion loss and pick-off stability from DC to over 40 GHz. It also features
Key performance specifications
- DC to >40 GHz
- 11 ps rise time
- 14 dB

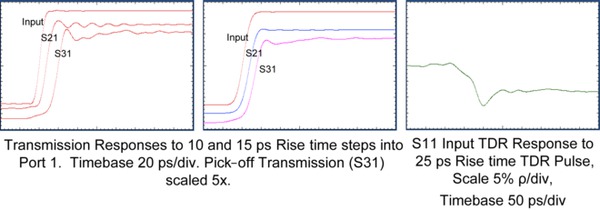

Typical performance

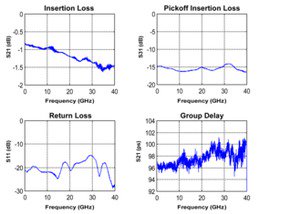

Frequency Domain Responses from 40 MHz to 40 GHz
Specifications
| Parameter 1 | Value |
|---|---|
| Rise time | 7 ps, through-line 11 ps, pick-off line |
| Bandwidth | DC to >40 GHz |
| Through-line Insertion Loss, DC | 0.8 dB |
| Through-line Insertion Loss, AC | ≤2.0 dB, 0 – 40 GHz, guaranteed |
| Pick-off Resistor | 200 Ω ±1% |
| Pick-off Insertion Loss, DC | 14.8 dB |
| Pick-off Insertion Loss, AC | 15 ±1 dB, 0 – 40 GHz |
| Delay | 98 ps |
| Input Impedance, DC | 41.7 Ω, port 1 and 2 |
| Return Loss (Port 1 and 2) | >20 dB, DC >17 dB, 0 – 15 GHz >12 dB, 15 – 40 GHz |
| Max Input Power, avg | 3.5 Watts, CW |
| Temperature Range | -55 to 90 °C @3.5 W, linearly derate to 0 W at 110 °C |
| Connectors | 2.92 mm jacks (f) |
| Warranty | One Year |
1All parameters listed are typical unless max/min guaranteed limits are provided. The DC specs are valid only when used with 50 Ω source and terminations.

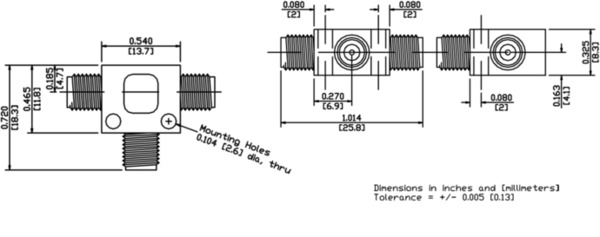

Mechanical dimensions
Ordering information
Models
- PSPL5361
- Pick-Off Tee, 14 dB, 5x
Ordering information
- OPT 292JJJ
- 2.92 mm connectors, Ports 1,2,3 = jacks (f)
