PSPL5350 6 dB Power Divider, 50 GHz
PSPL5350 Datasheet
泰克对于本技术资料上的产品不再有售。
查看 Tektronix Encore 了解翻新测试设备。
查看这些产品的支持和保修状态。
The PSPL5350 6 dB Power Divider provides excellent amplitude and phase performance power division from DC to frequencies over 40 GHz. The outputs are nominally attenuated by 6 dB. All ports are impedance matched to 50 Ω when both outputs are terminated in 50 Ω. Power dividers are built using a three-resistor network. The resistors have 1% tolerances, resulting in precise 50 Ω impedance matches at any port. This divider is engineered to provide excellent amplitude and phase symmetry throughout the operating range, regardless of port selection. Maximum division symmetry is obtained when port 1 is used as input, with ports 2 and 3 providing the divided signal output.
Typical performance

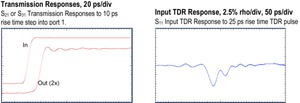

Frequency responses from 40 MHz to 40 GHz, liniear sweep at 4 GHz/div
Specifications
| Parameter 1 | Value |
|---|---|
| Rise time | 8 ps, typical |
| Insertion Loss BW (-1.5 dB) | DC to >40 GHz |
| Insertion Loss, DC | 6.02 ± 0.08 dB max, DC |
| Insertion Loss, AC | 5.8 |
| Insertion Loss Asymmetry | 0.05 dB maximum, DC
|
| Phase Tracking | |
| Delay | 100 ps, typical |
| Input Impedance, DC | 50 ± 0.5 Ω max |
| Return Loss | >30 dB, 0 – 1 GHz
>17 dB, 1 – 15 GHz >12.5 dB, 15 – 40 GHz |
| Max Input Power, avg | 2.5 Watts, CW |
| Temperature Range | -55 to 90 °C @ 2.5 W, operating case temperature
linearly derated to 0 W @ 110 °C |
| Warranty | One Year |

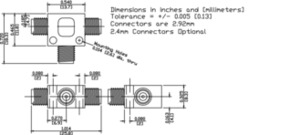

- Mechanical dimensions
1 All parameters listed are typical unless max/min guaranteed limits are provided. The DC specs are based upon resistor tolerances and only when used with 50 Ω source and terminations.
Ordering information
Models
- PSPL5350
- Power Divider, 6 dB
Options
- PSPL5350 240JJJ
- 2.4 mm connectors, jacks (f)
- PSPL5350 292JJJ
- 2.92 mm connectors, jacks (f)
