PSPL5334 1:4 Resistive Divider

泰克对于本技术资料上的产品不再有售。
查看 Tektronix Encore 了解翻新测试设备。
查看这些产品的支持和保修状态。

The PSPL5334 Resistive Divider is an Ultra-Broadband Resistive Coupler that provides even division of an input signal between four output ports. The device exhibits excellent through-line insertion loss stability for frequencies from DC to >25 GHz. The PSPL5334 features good impedance match across a wide range of frequencies, with Return Loss typically >15 dB from 0-25 GHz. Resistors are accurate within ±2%, providing excellent input matching.

Key performance specifications

DC to >25 GHz
Excellent Return Loss
Superb Insertion Loss Stability
Accurate Amplitude and Phase Tracking

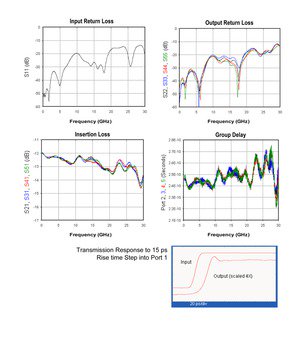

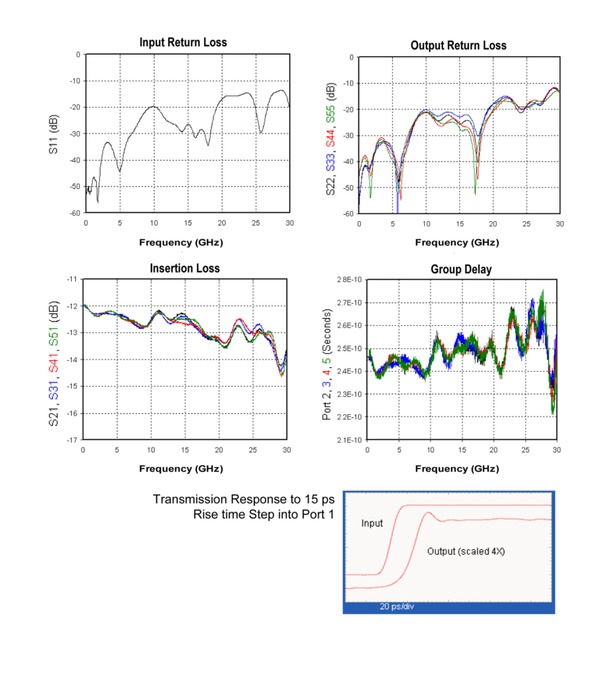

Typical performance

Specifications

Parameter ¹	Value
Bandwidth (-3 dB)	>25 GHz, guaranteed
Insertion Loss	12 dB, nominal DC 12.5 ±1.25 dB, 0-25 GHz, guaranteed
Rise time (10% - 90%)	≤15 ps
Return Loss	>15 dB, 0-18 GHz, guaranteed ≥10 dB, 18-25 GHz, guaranteed
Impedance @ DC (ports 1 through 5)	50 ±1 Ω, guaranteed
Insertion Loss Asymmetry (S31-S21)	≤0.7 dB, 0-25 GHz, guaranteed
Phase Tracking (S51 through S21)	≤10 deg, 0-25 GHz, guaranteed
Group Delay	245 ps, 0-25 GHz, typical
Temperature Range	0-90 °C @ 1.5 W, Operating Case Temperature Linearly derated to 0 W @ 110 °C
Max Input Power (Avg)	1.5 Watts, CW
Connectors	SMA jacks (f)
Warranty	One Year

¹ All parameters listed are typical unless max/min guaranteed limits are provided. Measurements made with 50 Ω matched line/load at output ports.

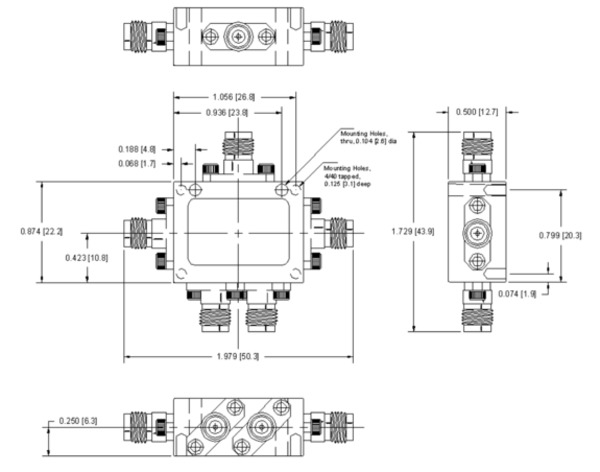

Mechanical dimensions

Ordering information

Models

PSPL5334: Quad Divider, 12 dB

PSPL5334 1:4 Resistive Divider
