Power Analyzer Accessories Datasheet

Fixed core Hall-effect transducers

Tektronix provides a variety of fixed core and split core current transducers matched to our power analyzers to fit your application and measurement needs. Fixed core transducers provide the highest accuracy available for both AC and DC current measurements, while the split core devices are ideally suited to making measurements in less accessible applications.

CT-xxxx-S Series

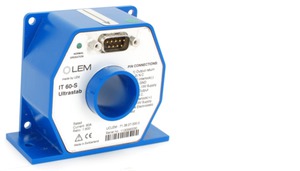

PA3000-PA1000-Power-Analyzer-Accessories-Datasheet--771313-9-N

The CT-xxxx-S series offer the highest accuracy and linearity when uncompromised measurements are required. These transducers are sourced from LEM, a high-quality component company.

Features



  • Very high accuracy (0.0054% - 0.0272%)
  • Excellent linearity (3 ppm - 20 ppm)
  • Extremely low temperature drift (0.5 ppm/k - 2.5 ppm/k)
  • Wide frequency bandwidth (DC to 800 kHz)
  • Closed loop (compensated) current transducer using an extremely accurate zero flux detector
  • Electrostatic shield between primary and secondary circuit
  • No insertion losses
  • High immunity to external electrostatic and magnetic fields interference
  • Low noise on output signal
  • Tektronix custom cable assembly included for easy connection to the PA3000 power analyzer
  • Compatible with standard PA3000 internal transducer supply (except CT-1000-S; order optional external power supply, Keithley models 2220 for two channels or 2231A for four channels)



Applications



  • High power converters and inverters
  • Motor drives
  • Solar inverters
  • UPS systems



CT-xxxx-M Series

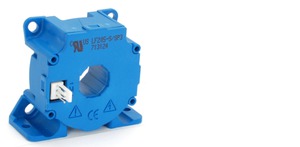

PA3000-PA1000-Power-Analyzer-Accessories-Datasheet--771313-10-N

The CT-xxxx-M series are designed for general purpose measurement applications where accuracy requirements are less stringent. These transducers are sourced from LEM, a high-quality component company.

Features



  • Very good accuracy (0.4% - 0.5%)
  • Very good linearity (<0.1%)
  • Wide frequency bandwidth (DC to 150 kHz)
  • Closed loop (compensated) current transducer using the Hall Effect
  • Insulated plastic case recognized according to UL 94-V0.
  • Low temperature drift
  • Compatible with standard PA3000 internal transducer supply
  • Tektronix custom cable assembly included for easy connection to PA3000
  • No insertion losses
  • High immunity to external interference



Applications



  • High power converters and inverters
  • Motor drives
  • Solar inverters
  • UPS systems



Current clamps

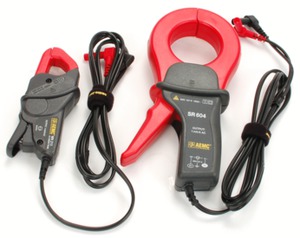

PA3000-PA1000-Power-Analyzer-Accessories-Datasheet--771313-11-N

For quick connections in an environment where it is not possible to break the current path, a current clamp offers an easy way to measure AC current. The CL series current clamps are sourced from AEMC.

CL200

The CL200 is the latest in compact AC current probes. It is designed to provide quick connection to medium current circuits often found in industrial applications.

Features



  • 0.5 ARMS to 240 ARMS measurement range
  • 1000:1 transform ratio
  • 40 Hz to 10 kHz response
  • 1.0% to 3.0% accuracy, based on primary signal level
  • Small, compact size
  • Connects directly to Tektronix power analyzers
  • Large jaw opening accommodates conductors up to 250 MCM
  • Designed to EN61010, 600 V Cat. III safety standard



Applications



  • High power converters and inverters
  • Motor drives
  • Solar inverters
  • UPS systems



CL1200

The CL1200 is an AC current clamp designed for use in industrial and higher power environments. The ergonomic design allows it to easily clamp onto cables or small bus bars.

Features



  • 100 mARMS to 1200 ARMS measurement range
  • 1000:1 transform ratio
  • 30 Hz to 5 kHz response
  • 0.5% to 1.5% accuracy, based on primary signal level
  • Conforms to EN61010, 600 V Cat. III safety standard
  • Low phase shift for power measurements



Applications



  • High power converters and inverters
  • Motor drives
  • Solar inverters
  • UPS systems



Measurement accessories



These accessories help to simplify your circuit connections and make your measurement tasks easier.

Test leads

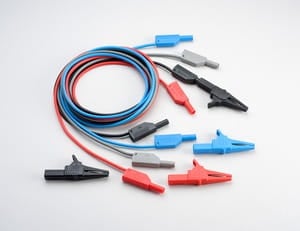

PA3000-PA1000-Power-Analyzer-Accessories-Datasheet--771313-12-N

.

PA-LEADSET Replacement lead set for Tektronix power analyzers. This insulated, stackable test lead set is rated for 1000 V, 32 A, CAT II, and is UL61010 compliant.

BB1000 Breakout Box

The BB1000 Breakout Box makes wiring connections between your device-under-test and Tektronix power analyzers easy and safe, by 'breaking out' the current flow for connection to the internal current shunt in the analyzer. It provides a line output socket to power your device under test (up to 10 ARMS) and 4 mm sockets for direct connection to the Tektronix power analyzer terminals. The BB1000 Breakout box is offered in different versions with these receptacle styles:

  • BB1000-UN: 120 V/240 V Universal receptacle
  • BB1000-NA: 120 V North America receptacle
  • BB1000-EU: 240 V Euro receptacle
  • BB1000-UK: 240 V United Kingdom receptacle

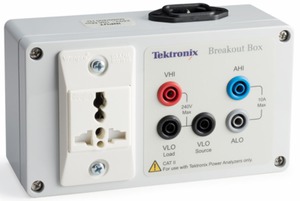

PA3000-PA1000-Power-Analyzer-Accessories-Datasheet--771313-13-N

BB1000-UN Breakout Box

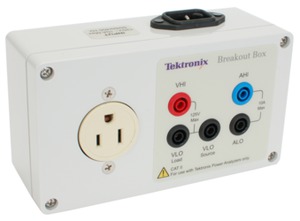

PA3000-PA1000-Power-Analyzer-Accessories-Datasheet--771313-14-N


BB1000-NA Breakout Box

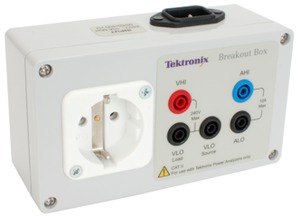

PA3000-PA1000-Power-Analyzer-Accessories-Datasheet--771313-15-N


BB1000-EU Breakout Box
PA3000-PA1000-Power-Analyzer-Accessories-Datasheet--771313-16-N

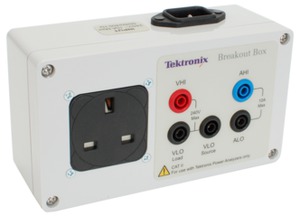

BB1000-UK Breakout Box
Ballast-CT

The Tektronix Ballast-CT simplifies the measurement of output power and tube current in high frequency electronic lighting ballasts. This device is specifically designed for lighting applications, and overcomes problems that are usually found when using conventional or Hall Effect current transformers. When used in conjunction with a Tektronix PA1000 or PA3000 power analyzer, the free-standing Ballast-CT accessory provides a convenient and accurate solution to taking power measurements in lighting ballast circuits.

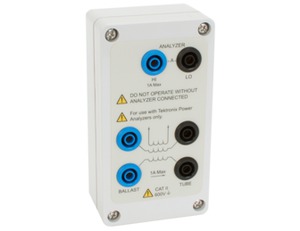

PA3000-PA1000-Power-Analyzer-Accessories-Datasheet--771313-17-N


BALLAST-CT
  • Convenience: No need to feed cables through a CT core
  • High accuracy: Trifilar-wound toroidal design
  • No cable positioning/contact error
  • Wide bandwidth: High frequency design provides 5 kHz to 1 MHz bandwidth
  • Wide current range: 5 mA to 1 A is compatible with many modern ballasts

Specifications

All specifications are guaranteed unless noted otherwise. All specifications apply to all models unless noted otherwise. The specifications are subject to change without notice.

CT-xxxx-S Series
Model LEM part number Nominal primary current (rms) Nominal primary current (Ip, DC) Nominal secondary current (Is) Supply voltage Supply consumption Transform ratio Accuracy Bandwidth
CT-60-S IT 60-S 42 A 60 A 100 mA ±15 V 80 mA + Is 1:600  0.0272% DC to 800 kHz
CT-200-S IT 200-S 141 A 200 A 200 mA ±15 V 80 mA + Is 1:1000  0.0084% DC to 500 kHz
CT-1000-S IT 1000S/SP1 707 A 1000 A 1 A ±15 V 80 mA + Is 1:1000  0.0054% DC to 500 kHz

Notes:

The CT-1000-S transducer requires a separate power supply. Tektronix recommends the Keithley model 2220 for two channels or 2231A for four channels.

The secondary current (Is) = Imeasuredx the transform ratio.

CT-xxxx-M Series
Model LEM part number Nominal primary current (rms) Nominal primary current (peak) Nominal secondary current (rms) Supply voltage Supply consumption Transform ratio Accuracy Bandwidth
CT-100-M LF 205-S/SP3 100 A 200 A 100 mA ±12 V to ±15 V 17 mA + Is 1:1000  ±0.5% DC to 100 kHz
CT-200-M LF 205-S/SP1 200 A 420 A 100 mA ±12 V to ±15 V 17 mA + Is 1:2000  ±0.5% DC to 100 kHz
CT-1000-M LF 1005-S 1000 A 1500 A 200 mA ±15 V to ±24 V 28 mA + Is 1:5000  ±0.4% DC to 150 kHz
CL Series
Model AEMC part number Measurement range Transform ratio Supply voltage Accuracy Bandwidth
CL200 MN213 0.5 A - 240 ARMS 1000:1  Not needed 1.0% - 3.0% 40 Hz - 10 kHz
CL1200 SR604 100 mA - 1200 ARMS 1000:1  Not needed 0.5% - 3.0% 30 Hz - 5 kHz
Ballast-CT
Operating current range
5 mA to 1 ARMS
Operating frequency
5 kHz to 1 MHz
Accuracy
Amplitude
Better than 1% (up to 500 kHz)
Phase
Better than 1 degree (up to 500 kHz)
Maximum voltage, tube/ballast to output or Earth
600 VRMS, CAT II
Isolation, tube/ballast to output
1 kVAC

Ordering Information

Models
CT-S Series
CT-60-S, CT-200-S, CT-1000-S
CT-M Series
CT-100-M, CT-200-M, CT-1000-M
CL Series
CL200, CL1200
Test Leads
PA-LEADSET
Breakout Box
BB1000-UN, BB1000-NA, BB1000-EU, BB1000-UK
Ballast-CT
BALLAST-CT
Accessories

All CT series current transducers (except for CT-1000-S) include cabling that allows easy and direct connection to the ±15 V supply on the PA3000 Power Analyzer, and directly to the 1 A shunt.

The CT-1000-S transducer requires a separate power supply. Tektronix recommends the Keithley model 2220 for two channels or 2231A for four channels, which can supply power for up to two CT-1000-S current transducers.

Warranty
All parts warranted for 1 year.
