PatternPro® Error Detector

PED3200 and PED4000 Series Datasheet

泰克对于本技术资料上的产品不再有售。
查看 Tektronix Encore 了解翻新测试设备。
查看这些产品的支持和保修状态。

下载产品技术资料
更多信息

在线阅读：

PED3000-PED4000-Error-Detector-Datasheet
PED3200 and PED4000 Series Datasheet

The PED3200 and PED4000 series programmable error detectors offer effective multi-channel BER for stressed receiver testing of data communications designs. Available with full or half rate clock inputs.

Notice to EU customers

This product is not updated to comply with the RoHS 2 Directive 2011/65/EU and will not be shipped to the EU. Customers may be able to purchase products from inventory that were placed on the EU market prior to July 22, 2017 until supplies are depleted. Tektronix is committed to helping you with your solution needs. Please contact your local sales representative for further assistance or to determine if alternative product(s) are available. Tektronix will continue service to the end of worldwide support life.

Key performance specifications
  • Data rate range:
    • PED3200 series: 3 Gb/s to 32 Gb/s
    • PED4000 series: 4 Gb/s to 40 Gb/s
Key features
  • Available with 1 or 2 input channels (independent data on each channel)
  • PRBS and user defined patterns
  • High input sensitivity and bandwidth
  • Auto-adjustment or manual adjustment of data to clock phase and threshold
  • Auto-synchronization to input pattern
  • PC GUI software:
    • Remote instrument control
    • Bathtub and Contour Analysis
    • JTOL measurements
    • J2/J9 measurements
  • Front panel touch screen GUI or USB TMC computer control
Applications
  • 25 Gb/s testing for 100G Ethernet
  • 32 Gb/s DPQPSK testing
  • Semiconductor and component testing
  • Design validation and production testing
  • Transmitter testing and validation up to 40 Gb/s

Product description

The Tektronix PED line of high sensitivity and high bandwidth error detectors offer single and two-channel standalone configurations capable of BER measurement at data rates up to 40 Gb/s. The PED products support either PRBS or user-defined data patterns, with simple to use automatic or manual alignment of input clock and data, and pattern synchronization. The PED product makes an ideal companion for the Tektronix PPG pattern generator product family.



PED3000-PED4000-Error-Detector-Datasheet-EN_US-9-L

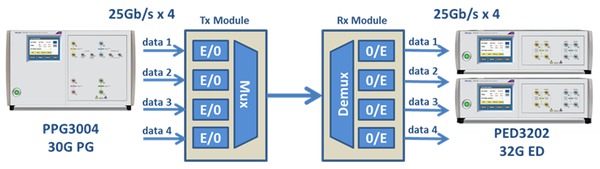

100G Ethernet four lane end-to-end test using PED3200 series error detector and PPG3000 series pattern generator

Specifications

All specifications are guaranteed unless noted otherwise. All specifications apply to all models unless noted otherwise.

Data input
Data rate
Range (PED3200)
3 Gb/s to 32 Gb/s
Range (PED4000)
4 Gb/s to 40 Gb/s
Data input
AC coupled input with broadband bias tees featuring a 3 dB bandwidth of 10 kHz to >50 GHz.
Differential amplitude
6 mV to 1.0 Vp-p
Single-ended amplitude
6 mV to 750 mVp-p
Termination voltage
0.0 V
Input impedance
50 Ω
Connector
2.4 mm
ESD sensitivity
250 V, Human body model (HBM)
Sampling point set points
Eye edge BER threshold
Range
1e-1 to 1e-11
Resolution
1e-1
Sync BER threshold
Range
1e-1 to 1e-8
Resolution
1e-1
Full rate clock input option
Amplitude
AC coupled, full rate
Differential range
300 mVP-P to 1.0 VP-P
Single-ended range
300 mVP-P to 1.0 VP-P
Connector
2.4 mm
Clock to data phase adjustment
100 ps (-50 ps to +50 ps)
ESD sensitivity
1000 V, Human body model (HBM)
Half rate clock input option
Amplitude
AC coupled, half rate
Differential range
300 mVP-P to 1.0 VP-P
Single-ended range
300 mVP-P to 1.0 VP-P
Connector
2.4 mm
Clock to data phase adjustment
100 ps (-50 ps to +50 ps)
ESD sensitivity
1000 V, Human body model (HBM)
Data patterns
Pattern type
Data (from memory) or PRBS.

Length and type are individually settable on each channel.

PRBS pattern lengths
27 -1 bits
Polynomial = X7 + X6 + 1
29 - 1 bits
Polynomial = X9 + X5 + 1
211 - 1 bits
Polynomial = X11 + X9 + 1
215 - 1 bits
Polynomial = X15 + X14 + 1
223 - 1 bits
Polynomial = X23 + X18 + 1
231 - 1 bits
Polynomial = X31 + X28 + 1
User-defined pattern depth
Number of channels Single bit pattern resolution
1 channel 4 Mbit
2 channels 2 Mbit
Mechanical
Front panel width (with mounting tabs)
48.3 cm (19.0 in)
Height
13.3 cm (5.25 in)
Width
45.1 cm (17.75 in)
Depth (rack mount)
34.3 cm (13.5 in)
Weight (1 channel)
11.1 kg (24.5 lbs)
Operating temperature
0 °C to 40 °C (32 °F to 104 °F)

Ordering information

Models
PED3201
32 Gb/s Programmable error detector, 1 channel
PED3202
32 Gb/s Programmable error detector, 2 channels
PED4001
40 Gb/s Programmable error detector, 1 channel
PED4002
40 Gb/s Programmable error detector, 2 channels
Options
Instrument options
PED3201 HCLK
Half rate clock input option for PED3201
PED3201 FLCLK
Full rate clock input option for PED3201
PED3202 HCLK
Half rate clock input option for PED3202
PED3202 FLCLK
Full rate clock input option for PED3202
PED4001 HCLK
Half rate clock input option for PED4001
PED4001 FLCLK
Full rate clock input option for PED4001
PED4002 HCLK
Half rate clock input option for PED4002
PED4002 FLCLK
Full rate clock input option for PED4002
Power plug options
Opt. A0
North America power plug (115 V, 60 Hz)
Opt. A1
Universal Euro power plug (220 V, 50 Hz)
Opt. A2
United Kingdom power plug (240 V, 50 Hz)
Opt. A6
Japan power plug (100 V, 50/60 Hz)
Opt. A10
China power plug (50 Hz)
Opt. A11
India power plug (50 Hz)
Opt. A99
No power cord
Manuals
071-3413-xx
Printed PPG/PED Installation & Safety Instructions
077-1095-xx
PED3200/PED4000 Series Programmable Error Detector User Manual, PDF-only, downloadable from Tektronix.com
PC Software GUI and Analysis Tool


PED3000-PED4000-Error-Detector-Datasheet-EN_US-10-L

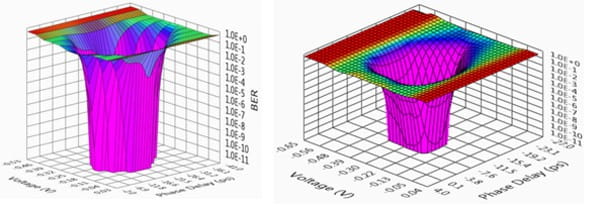

25 Gb/s and 32 Gb/s NRZ Signal Contour Analysis

A PC-based software tool for remotely controlling the instrument, gathering and saving data (such as, bathtub and contour plots), and performing data systems analysis (J2/J9 and JTOL measurements) is available for use with both PED3200 and PED4000 error detectors. The tool is an executable file and is available upon request from Tektronix.



PED3000-PED4000-Error-Detector-Datasheet-EN_US-11-L

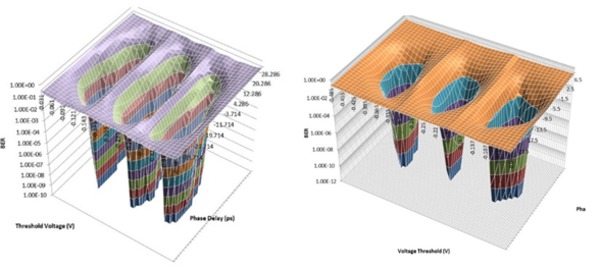

14 Gb/s and 25 Gb/s PAM4 Signal Contour Analysis



  • PED3000-PED4000-Error-Detector-Datasheet-EN_US-12-L
    		 Tektronix is registered to ISO 9001 and ISO 14001 by SRI Quality System Registrar.
    PED3000-PED4000-Error-Detector-Datasheet-EN_US-13-L
    		 Product(s) complies with IEEE Standard 488.1-1987, RS-232-C, and with Tektronix Standard Codes and Formats.
