MHL Advanced Analysis and Compliance Test Software

The TekExpress MHL Advanced Analysis and Compliance software gives you the tools to easily run Mobile High-definition Link (MHL) tests in accordance with MHL compliance test specifications 1.X, 2.0, 1.3 / 2.1 and 3.3. It provides a complete and reliable solution for quick testing.

Key features

• Ensures Conformance to latest MHL 3.3 Compliance Test Specification
• Conformance to MHL 3.3 Compliance Test Specification (CTS) ensures reliable results for Source, Sink, Dongle Output/Input group of tests introduced in MHL 3.3
• Conformance to MHL 1.1/1.2/2.0 and 1.3/2.1 Compliance Test Specification (CTS) ensures reliable results including support for direct attach device testing, cable electrical testing
• Complete validation to standards with a wide range of tests for transmitter and receiver (Sink / Dongle) devices and both physical layer and link layer testing
• Single-box physical and link layer enables seamless testing and analysis from physical layer to link layer and back
• Accurate tests using precise measurement techniques
• Automated receiver/dongle tests - simple setup with all impairments added to the MHL signals using the direct synthesis based capability of the AWG
• Path-breaking direct synthesis method for receiver testing
  • Removes the dependency on hardware elements such as ISI Boards
  • True MHL signal generation without depending on external combiners
• Get quick results with automatic mask-fit, measurements, and Pass/Fail notification
• Simple test setup ensures faster test times and greater repeatability
• Ensure faster testing with one-button selection of multiple MHL Tests
• Save time with one-button MHT/.PDF format summary and reports

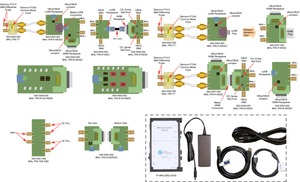

• Single compliance solution to meet the MHL 1.1, 1.2, 2.0, 1.3, 2.1, and 3.3 Compliance Test Specification (CTS) using real time oscilloscopes, probes, signal sources, a complete test fixture set, and sampling scopes with innovative IConnect® software

Applications

• Design and validation of MHL physical layer and protocol layer

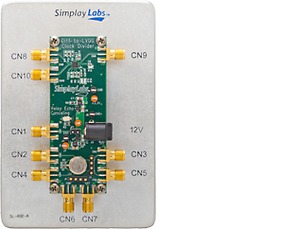

• MHL3.3 DUT automation support for Source and Sink Input/Output groups using SL403 and RELT board from Silicon Image
• Autocal support for MHL3.3 Transmitter Input group measurements

Mobile high-definition link (MHL) compliance

Engineers designing and validating the MHL physical layer and link layer of their devices face constant pressure to improve efficiency. Engineers need to perform a wide range of compliance tests quickly and reliably right on their bench.

The MHL 1.1/1.2/1.3/2.0/2.1/3.3 specifications support MHL, which enables mobile devices to transmit uncompressed audio/video to an HDTV or receiver with HD capability. Option MHD and MHD3 Advanced Analysis and Compliance Test Software meets the MHL 1.1/1.2/1.3/2.0/2.1/3.3 CTS specification and automates a comprehensive range of tests, enabling unprecedented efficiency with reliable results. TEK-PGY-MHL-PA-SW MHL Protocol Analyzer Software supports up to 1.1/1.2/2.0 and 1.3/2.1 CTS specification.

Reliable and dependable results

Option MHD and MHD3 software embeds the MHL CTS 1.1/1.2/2.0 and CTS 1.3/2.1/3.3 compliance test procedures, ensuring dependable results. Accurate jitter testing and precise violation testing delivers higher credibility. Perform transmitter tests with simple setups that eliminate nonlinearity. Authentic measurement techniques and automation eliminate errors to provide faster test times.

Option MHD and MHD3 leverages the TekExpress capability to provide smooth multi-equipment interactions, providing an automated solution for transmitter, sink, and dongle testing. The direct synthesis method ensures greater repeatability:

• Eliminates the dependency on hardware PCB traces to insert jitter components
• Eliminates the need to combine common mode clock and differential data signals using hardware combiners

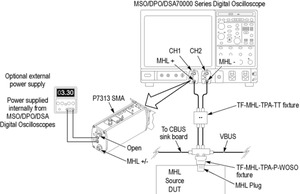

MHL 1.3/2.1 transmitter test setup for all other differential, common mode, and single ended tests

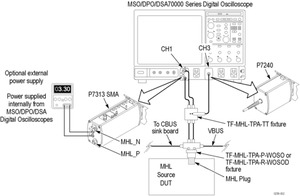

MHL 1.3/2.1 Clock Jitter and Data Eye Diagram test setup

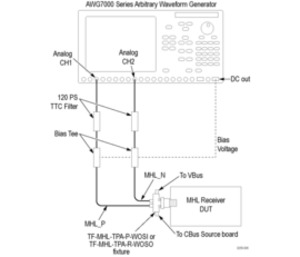

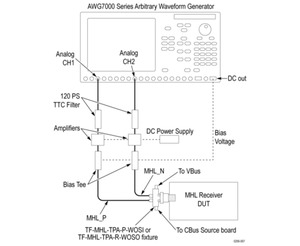

MHL 1.3/2.1 Sink setup

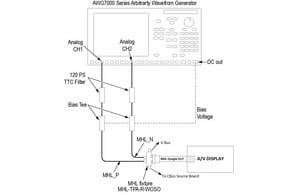

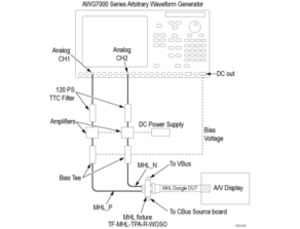

MHL 1.3/2.1 Dongle setup

MHL 1.3/2.1 Sink Min/Max setup

MHL 1.3/2.1 Dongle Min/Max setup

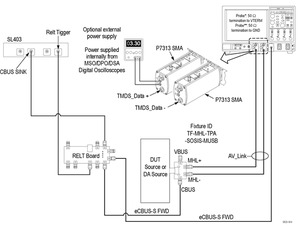

MHL 3.3 Transmitter output

MHL3.3 Transmitter input calibration

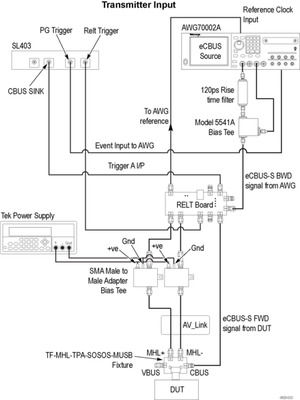

MHL 3.3 Transmitter input

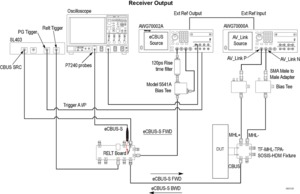

MHL 3.3 Receiver output AWG70K-AWG70K

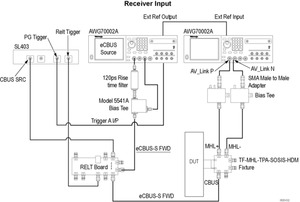

MHL 3.3 Receiver input for 70K

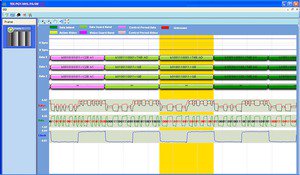

MHL protocol multi view display.

MHL physical and protocol layer seamless link capability

TEK-PGY-MHL-PA-SW

Third-party MHL Protocol Analyzer Software running on a Tektronix Real Time Oscilloscope embeds link-layer test procedures defined in MHL CTS 1.1/1.2/2.0 and CTS 1.3/2.1 and provides a unique one-box solution to MHL design, testing, and validation engineers to seamlessly migrate from physical layer to link layer.

Faster validation cycles

The unparalleled automation provided by Option MHD/MHD3 and Direct Synthesis capability of the Arbitrary Waveform Generators enables faster validation and shrinks test times for MHL testing. Demonstrate efficiency by using the "Select All" feature to perform multiple MHL transmitter tests. Instantly generate .CSV-format summaries or detailed reports at the press of a button.

Option MHD/MHD3 enables faster test times with automatic setting of the oscilloscope parameters and V termination voltage needs for MHL testing. This removes the inaccuracy and rigidity of MHL testing. Leveraging the Direct Synthesis capability of our industry-leading AWGs, in accordance with CTS 1.1, 1.2, 1.3, 2.0, 2.1, and 3.3.

Complete solution for validation

Option MHD and TEK-PGY-MHL-PA-SW offer a wide range of tests enabling thorough verification to standards. Tests offered include automated transmitter, AWG setup file based receiver/dongle, and MHL protocol tests. Perform convincing validation using a complete solution that includes oscilloscopes, probes, arbitrary waveform generators, test fixtures, and TDR.

Characteristics

Physical layer tests

MHL 1.3/2.1 Transmitter tests (supports Direct Attach Device testing)

3.1.1.1, 3.1.1.2, 3.1.1.3, 3.1.1.4, 3.1.1.5, 3.1.1.6, 3.1.1.7, 3.1.1.8, 3.1.1.10, 3.1.1.11, 3.1.1.12, 3.1.1.14, 3.1.1.15, 3.1.1.16, 3.1.1.17, 3.1.1.18, 3.1.1.19, and 3.1.1.20.

MHL 1.3/2.1 Receiver tests (supports Direct Attach Device testing)

4.1.1.1, 4.1.1.2, 4.1.1.3, 4.1.1.4 and 4.1.1.8.

MHL 1.3/2.1 Dongle tests

5.1.1.1, 5.1.1.2, 5.1.1.3, 5.1.1.4, and 4.1.1.9.

MHL 1.3/2.1 Cable Electrical tests

7.2.1.16 and 7.2.1.17.

MHL 1.3/2.1 Cable Assembly tests (MOI based)

7.2.1.2, 7.2.1.3, 7.2.1.4, 7.2.1.5, 7.2.1.6, 7.2.1.7, 7.2.1.8, 7.2.1.9, 7.2.1.10, 7.2.1.11, 7.2.1.12, 7.2.1.13, 7.2.1.14, and 7.2.1.15.

MHL 3.3 Transmitter Output tests

TMDS Data tests

3.7.2.1, 3.7.2.2, 3.7.2.5, S3.7.2.13, 3.7.2.17, and 3.7.2.27.

MHL Clock

3.7.2.7, 3.7.2.8, 3.7.2.9, 3.7.2.20, 3.7.2.21, 3.7.2.22, 3.7.2.23, and 3.7.2.26.

MHL eCBUS

3.7.2.7, 3.7.2.8, 3.7.2.9, 3.7.2.24, 3.7.2.25, and 3.7.2.29.

MHL 3.3 Transmitter Input tests

MHL eCBUS

3.7.2.32, 3.7.2.36, 3.7.2.40, and auto calibration of 3.7.2.36.

MHL 3.3 Receiver Output tests

MHL Sink eCBUS-S BWD

4.7.2.14, 4.7.2.15, 4.7.2.16, 4.7.2.20, 4.7.2.21, 4.7.2.22, and 4.7.2.24.

MHL Dongle eCBUS S BWD

5.7.2.16, 5.7.2.17, and 5.7.2.19.

MHL 3.3 Receiver Input tests

MHL Sink

4.7.2.1, 4.7.2.3, 4.7.2.5, 4.7.2.7, 4.7.2.10, and 4.7.2.28.

MHL Dongle

5.7.2.1, 5.7.2.2, 5.7.2.5, 5.7.2.7, 5.7.2.8, 5.7.2.10, 5.7.2.13, and 5.7.2.23.

MHL 2.1 Sink and Dongle system tests supported by AWG

TMDS Coding tests

4.2.1.1 and 5.2.1.1, 4.2.1.2 and 5.2.1.2, 4.2.1.3 and 5.2.1.3, and 4.2.1.4 and 5.2.1.4.

Video tests

4.2.2.1 and 5.2.2.1, 4.2.2.2 and 5.2.2.2, 4.2.2.3 and 5.2.2.3, 4.2.2.4 and 5.2.2.4, and 4.2.2.5 and 5.2.2.5.

Audio tests

4.2.3.1 and 5.2.3.1 IEC60958/IEC61937 and 4.2.3.2 and 5.2.3.2 Audio Clock regeneration.

3D Video tests

4.2.8.2 and 5.2.8.2 3D Video Format in Normal mode and 4.2.8.3 and 5.2.8.3 3D Video Format in Packed Pixel mode.

Protocol tests for CTS 1.1, 1.2, 2.0 and CTS 1.3, 2.1

Source Protocol tests in both normal mode and PackedPixel mode

• Legal codes
• Basic protocol
• Packet types



Source Video tests in both Normal mode and PackedPixel mode

• Video formats test
• Pixel encoding test
• Video quantization ranges
• AVI info frame
