Low-Pass Risetime Filter
PSPL5915 Datasheet
泰克对于本技术资料上的产品不再有售。
查看 Tektronix Encore 了解翻新测试设备。
查看这些产品的支持和保修状态。
The PSPL5915 Low-Pass Rise time Filter is designed for use in high-speed digital networks and telecom systems. The -3 dB bandwidth of the standard filters is 0.75 * Bit Rate. These filters are a proprietary, absorption filter design that has attenuation and group delay responses similar to those of the Bessel-Thomson filter. Bessel-Thomson filters filter by reflection and thus can cause increased bit error rates and eye diagram closure due to multiple reflections. By contrast, the PSPL5915 filters by absorption. It has excellent impedance matches and very good return losses, both within and above the filter pass band.
Typical performance

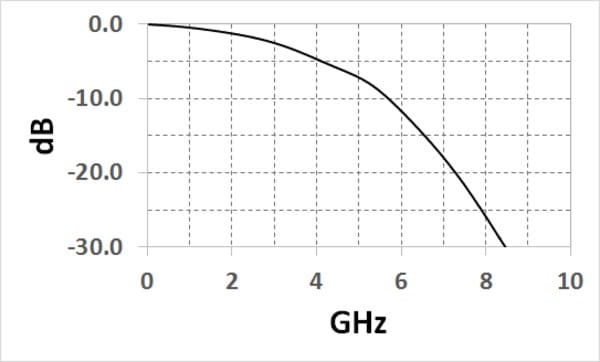

The following figure shows the Insertion Loss of the PSPL5915 Option 100PS.

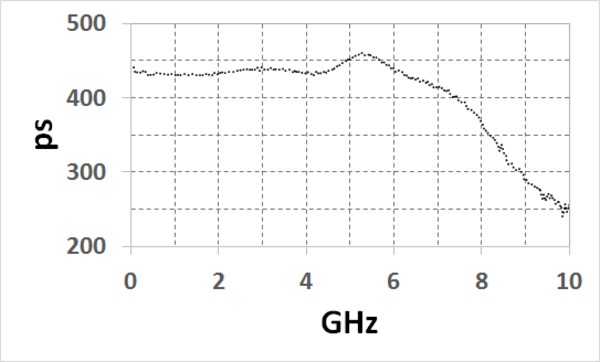

The following figure shows the Group Delay of the PSPL5915 Option 100PS.

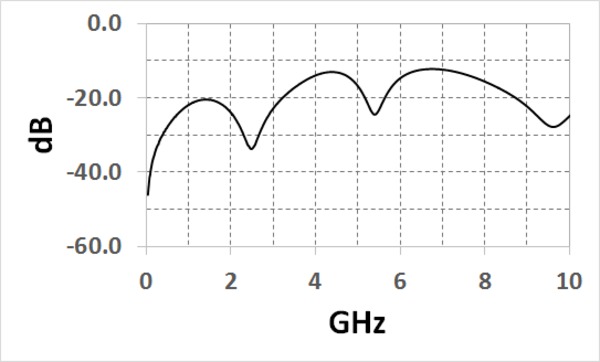

The following figure shows the Return Loss of the PSPL5915 Option 100PS.
Specifications
| Parameter 1 | Value |
|---|---|
| Return Loss | >15 dB at fo, typical |
| Risetime (10 to 90%) | Specified by option |
| Bandwidth (-3 dB), fo | 0.35/Risetime |
| fo Tolerance at 23 C | 2%, 5% f > 4 GHz |
| Max. Power | 23 dBm at fo |
| Max Current | 1 A |
| Max Voltage | 50 V DC |
| Insertion Loss | < 0.02 dB at DC |
| Impedance | 50 Ω |
| Connectors | SMA jack (f) & plug (m) |
| Temperature | -25 C to + 90 C |
| Warranty | One year |
1All parameters listed are typical unless max/min guaranteed limits are provided.

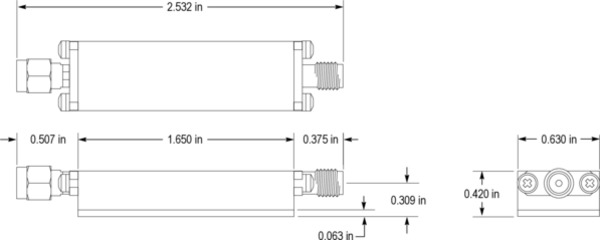

- Mechanical dimensions
Ordering information
Models
- PSPL5915
- Low-Pass Filter
PSPL5915 filter options
- 60PS
- 60 ps rise time (5.83 GHz, 3 dB frequency)
- 100PS
- 100 ps rise time (3.5 GHz, 3 dB frequency)
- 200PS
- 200 ps rise time (1.75 GHz, 3 dB frequency)
- 300PS
- 300 ps rise time (1.17 GHz, 3 dB frequency)
- 330PS
- 330 ps rise time (1.06 GHz, 3 dB frequency)
