PSPL5933 Flat Group Delay Low-Pass Filter Datasheet

PSPL5933 Datasheet

泰克对于本技术资料上的产品不再有售。
查看 Tektronix Encore 了解翻新测试设备。
查看这些产品的支持保修状态

更多信息

在线阅读:

PSPL5933 Datasheet

The PSPL5933 Flat Group Delay Low-Pass Filter is designed for OEM use in high-speed digital networks and telecom systems. The devices use a proprietary, absorptive filter design that has attenuation and time domain characteristics similar to those of the 4th order Bessel-Thomson filter. Traditional Bessel-Thomson designs filter by reflecting stop-band frequency signals and thus can cause increased bit error rates and eye diagram closure due to multiple reflections. By contrast, the PSPL5933 filters by absorption. It has excellent impedance matches and very good return losses, both within and above the filter pass band. The Flat Group Delay style filter exhibits quasi-Gaussian insertion loss characteristics, with superior time domain performance.

Typical performance, option 7P46GHZ

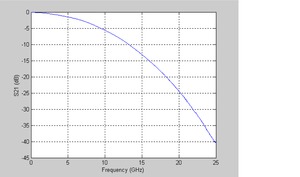

The following figure shows the insertion loss from 0 to 25 GHz.

PSPL5933-Datasheet--244305-9-N

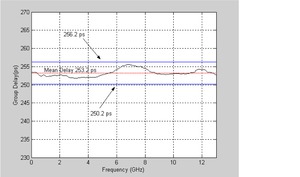

The following figure shows the group delay from 0.1 to 13 GHz.

PSPL5933-Datasheet--244305-10-N

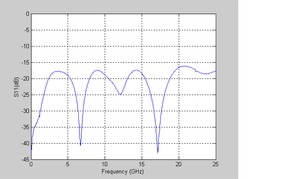

The following figure shows the input return loss from 0 to 25 GHz.

PSPL5933-Datasheet--244305-11-N

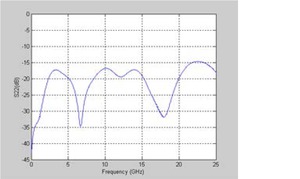

The following figure shows the output return loss from 0 to 25 GHz.

PSPL5933-Datasheet--244305-12-N

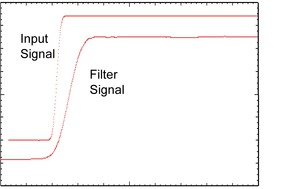

The following figure shows the TDT response to 15 ps step with the time base at 50 ps/div.

PSPL5933-Datasheet--244305-13-N

Typical performance, option 8GHZ

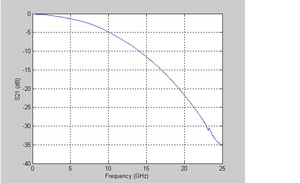

The following figure shows the insertion loss from 0 to 25 GHz.

PSPL5933-Datasheet--244305-14-N

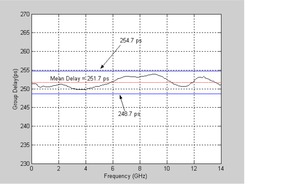

The following figure shows the group delay from 0.1 to 14 GHz.

PSPL5933-Datasheet--244305-15-N

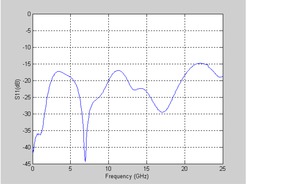

The following figure shows the Input return loss from 0 to 25 GHz.

PSPL5933-Datasheet--244305-16-N

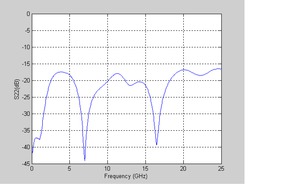

The following figure shows the output return loss from 0 to 25 GHz.

PSPL5933-Datasheet--244305-17-N

The following figure shows the TDT response to 15 ps step with the time base at 20 ps/div.

PSPL5933-Datasheet--244305-18-N

Specifications

All specifications apply to all models unless noted otherwise.

Parameter 1 PSPL5933 opt. 7P46GHZ PSPL5933 opt. 8GHZ
Impedance 50 Ω
Bandwidth (-3 dB) 7.46 GHz 8 GHz
Bandwidth Tolerance (at 23 °C) ± 3% maximum
Bandwidth Thermal Drift -2.1 MHz / °C typical, -3.1 MHz / °C maximum
Rise time, 10% – 90% 47 ps 46 ps
RF Power 29 dBm maximum
Operating Temperature -10 to +70 °C, maximum power
Return Loss (S11 and S22) >12 dB
Group Delay 253 ps
Group Delay Flatness ±3 ps
Connectors SMA jack (f) & plug (m)
Warranty One year

1 All parameters listed are typical unless max/min guaranteed limits are provided.

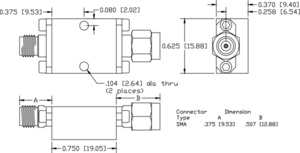

Mechanical dimensions
PSPL5933-Datasheet--244305-19-N

Ordering information

Models
PSPL5933
Flat Group Delay Low-Pass Filter
Options
PSPL5933 7P46GHZ
7.46 GHz 3 dB frequency
PSPL5933 8GHz
8 GHz 3 dB frequency
