Tektronix Monitoring & Protocol Test
GSM/GPRS Optimization Expert
![](/-/media/datasheets/a0006104sjpg.jpg?h=116&iar=0&w=200)
Features & Benefits
- Usability: The GSM/GPRS Optimization Expert with its intuitive user interface accelerates the learning curve; the cartography enables a geographical representation of the measurements like the cells that induce a bad handover quality
- Performance: The optimized protocol engine shortens the analysis time; results are stored in a database to enable a direct access to the results later on. Reporting: All measurements can be exported to Excel for the generation of reports, including comments, graphics, etc.
- The “Optimization Expert” is composed of four models tailored to suit individual and specific Network Operators' needs.
- The “Application Expert” delivers unique statistical screens, maps, and images to highlight QoS issues, such as call behavior, MMS usage, SMS usage, etc.
- The “Performance Expert,” with its easily accessible transaction count and transaction failure statistics, has specifically been designed to meet the needs of Operation and Maintenance departments.
- The “Radio Expert” provides a clear view of the radio profile and the quality of a cell.
- The “Roaming Expert” displays data of roamers in the network. It includes statistics on roaming-in, competitors’ network quality, and others.
Applications
Dashboard View
- A dashboard is a set of aggregated measurements allowing users to have an overview of their data.
- Various different counters are integrated in the dashboard:
- Transaction Volume Counters, such as:
- Volume of calls
- Volume of bytes transferred
- Volume of SMS
- Failure Rate Counters
- Dropped Call Rates
- Access Failure Rates
- If the proportion of different parameters is important, a pie chart is used.
Synthesis View
- These views are oriented towards technical management level to distribute work load among teams with the right level of focus.
- It shows where in the network the problem occurs. Generally these representations display either a cartographic map of the area or a time based view of the counter.
Technical Analysis View
- The technical analysis is targeted to engineers responsible for quality of service or operations. It provides the ability to understand the root causes of a problem via drill down features.
- Technical staff will start from a synthesis view of the quality of service offered and in 3 or 4 mouse clicks will have access to call trace of any call responsible for a problem.
Product Description
- The GSM/GPRS Optimization Expert is built out of four modules, corresponding to different departments in the operators’ structure.
- Application Expert provides a clear understanding of the QoS offered to the users. It brings a view on the user‘s experience of the services used, beneficial information for the Quality and Marketing teams. It includes statistics on:
- Call behavior (call duration, blank calls, looped PCM)
- Voice mail, special numbers, Toll Free, ...
- MMS usage
- SMS usage
- IP usage
- HTTP loading time
- WAP
![A000_5876-N.jpg A000_5876-N](/-/media/sites/default/files/media/image/a000_5876-n.jpg)
PCM allocation overview
- A new “Performance Expert” feature provides a picture of the performance and network elements to support the needs of Operations and Maintenance departments. Transaction count and transaction failure statistics are visible at the click of a button. The module contains statistics on:
- Transactions counts (MOC, MTC, LU, Data volumes, ...)
- Transactions failures
- Equipment failures
- Handovers
- Codec usage
- The “Radio Expert” provides a clear view of the radio profile and quality of a cell. This module targets Radio Engineering or Optimization departments and includes statistics on:
- Radio measurements
- Radio channel management
- Handovers
- Coverage
- The “Roaming Expert” provides information regarding roamers in the network. Typically the transverse task force responsible for roaming revenue needs this kind of input. The module includes statistics on:
- Roaming in
- Quality offered to roamers
- Roamers behavior
- Competitors network coverage
![A000_5877-N.jpg A000_5877-N](/-/media/sites/default/files/media/image/a000_5877-n.jpg)

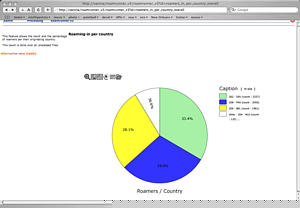

Roamers in network per origin country
The “GSM/GPRS Optimization Expert” adds advanced QoS, service level, application level, network performance and roaming analysis capabilities on top of the industry’s leading protocol analysis and decoding solution K15 and K12.
The Optimization Expert is used to isolate the root causes of problems and to optimize network operation in 2G, 2.5G, and EDGE environments. The networks can either be homogeneous 2G/2.5G/EDGE networks, or networked with 3G networks. A companion product to the Tektronix family of protocol test systems K15 and K12 series, the Optimization Expert analysis is based on RF5 format protocol traces. It can be used with realtime or post-processing parameters for advanced problem isolation, root-cause identification, and performance optimization calculations.
The GSM/GPRS Optimization Expert provides detailed information about the quality of service offered over the networks whether they are GSM or GPRS (including EDGE). It is a powerful set of troubleshooting tools allowing technical staff to detect and correct network malfunctions at different levels. It provides very deep drill-down capacities enabling engineers to start from general overview down to a mapped correlated view of the statistics and finish with the subscriber activity and the call trace.
The GSM/GPRS Optimization Expert has the ability to process groups of contiguous files in order to enable radio and optimization teams to measure the effect of network changes.
The software features:
- Unique synthesized views and displays enabling fast problem resolution
- Unique cartographic views combining location information with analysis results
- Proprietary parameter extraction algorithms enabling high speed processing and real time reporting
- Problem-oriented GUI, intuitive to use, easy to learn
- Direct correlation to second-to-none protocol decodes in number, depth, and quality
Workflow
Users record files using their K15 or K12 on GSM A or Abis*1 interfaces, or Gb interface containing control and user plane. The trace can combine all those interfaces if the network configuration allows it.
Users operate the GSM/GPRS Optimization Expert with their standard Web Browser. There, they select either a directory containing all the contiguous recorded files or a set of files, and choose to process them. The GSM/GPRS Optimization Expert will then process all the relevant information from the trace files and provide a database, where the user can access the information.
*1 The GSM/GPRS Optimization Expert supports 3GPP Abis only.
Characteristics
Recommended PC Requirements
|
Portable PC |
Desktop PC |
---|---|---|
Processor |
Pentium M 1.7 GHz |
Pentium 3.0 GHz |
RAM |
1 GB RAM |
|
Screen Resolution |
1024 x 768 |
|
Operating System |
Windows XP Pro SP2 |
|
Web Browser |
Internet Explorer 6 or superior |
Ordering Information
MPTSW-0001: GSM/GPRS Optimization Expert Software
Includes: This product includes initial delivery of GSM/GPRS Optimization Expert Software Complete Package, which contains Application Expert, Roaming Expert, Radio Expert, and Network Performance Expert
MPTSW-0002: GSM/GPRS Application Expert Software
Includes: Initial delivery of GSM/GPRS Optimization Expert Software; Application Expert; provides information on the performance, QoS, and User Experience of the services: voice, SMS, MMS, WAP, IP, HTTP
MPTSW-0003: GSM/GPRS Roaming Expert Software
Includes: MPTSW-0003: Initial delivery of GSM/GPRS Optimization Expert Software; Roaming Expert; provides information about Roaming Performance and Roaming Problems
MPTSW-0004: GSM/GPRS Radio Expert Software
Includes: MPTSW-0004: Initial delivery of GSM/GPRS Optimization Expert Software; Radio Expert; provides information on the Radio Performance: Cause of connection failures, channel management, radio measurements, handovers
MPTSW-0005: GSM/GPRS Network Performance Expert Software
Includes: MPTSW-0005: Initial delivery of GSM/GPRS Optimization Expert Software; Network Performance Expert; measures and analyzes the Network Performance
Support Pack
SupportPacks contain the delivery of all available updates and upgrades plus TAC (Technical Assistance Center / Hotline) Support for SW under this subscription during the contract period.
Options
Opt. MPTSUP-0001 - GSM/GPRS Optimization Expert Software Support Pack SW subscription contract of Expert Software Application; Application Expert, Roaming Expert, Radio Expert, Network Performance Expert. Prerequisite: MPTSW-0001.
Opt. MPTSUP-0002 - GSM/GPRS Application Expert Software Support Pack SW subscription contract of Expert Software Application; Application Expert; prereq.: MPTSW-0002.
Opt. MPTSUP-0003 - GSM/GPRS Roaming Expert Software Support Pack SW subscription contract of Expert Software Application; Roaming Expert; prereq.: MPTSW-0003.
Opt. MPTSUP-0004 - GSM/GPRS Radio Expert Software Support Pack SW subscription contract of Expert Software Application; Radio Expert; prereq.: MPTSW-0004.
Opt. MPTSUP-0005 - GSM/GPRS Network Performance Expert Software Support Pack SW subscription contract of Expert Software Application; Network Performance Expert; prereq.: MPTSW-0005.
