Digital Phosphor Oscilloscopes/Digital Serial Analyzers
DPO/DSA70000 Series
泰克对于本技术资料上的产品不再有售。
查看 Tektronix Encore 了解翻新测试设备。
查看这些产品的支持和保修状态。
![](/-/media/datasheets/a0007881sjpg.jpg?h=162&iar=0&w=200)
Features & Benefits
- On All Four Channels Simultaneously
- 20, 16, 12.5, 8, 6, and 4 GHz Bandwidth Models
- Up to 50 GS/s Real-Time Sample Rate
- Up to 200 Megasamples Record Length with MultiView Zoom™ Feature for Quick Navigation
- Fastest Waveform Capture Rate with >300,000 wfms/s Maximum per Channel
- Digital Serial Analyzer Models with Dedicated Configuration for High-Speed Serial Design and Compliance Testing
- Enhanced Bandwidth to the Probe Tip Extended to Support Multiple Bandwidth Steps for Advanced Signal Integrity.
- Pinpoint® Triggering, with over 1400 Combinations to Address Virtually Any Triggering Situation
- Unique Serial Pattern Triggering up to 3.125 Gbps and 8b/10b Standard Protocol Triggering for Isolation of Pattern-Dependent Effects and NRZ Serial Test Pattern Triggering up to 6.25 Gbps
- Serial Data Analysis and Compliance for PCI Express, Serial ATA, FB-DIMM, SAS, Fiber Channel, IEEE1394b, RapidIO, XAUI, HDMI, DVI, Ethernet, USB 2.0
- High-Speed Serial Data Link Analysis for Transmitter Channel Embed or De-embed and Receiver Equalization Emulation
- Most Popular Jitter, Timing, and Eye-Diagram Analysis Package
- DDR Memory Bus Analysis
- 12.1-in. Largest XGA Touch-Screen Display in the Industry
- Event Search and Mark to Facilitate the Comprehension of Event Relationships
- MyScope® Custom Windows and Right Mouse Click Menus for Exceptional Efficiency
- OpenChoice® Software with Microsoft Windows XP OS Enables Built-In Networking and Extended Analysis
Applications
- Signal Integrity, Jitter, and Timing Analysis
- Verification, Debug, and Characterization of Sophisticated Designs
- Debugging and Compliance Testing of Serial Data Streams for Telecom and Datacom Industry Standards
- Investigation of Transient Phenomena
- Spectral Analysis
Unmatched Performance for Greater Insight Into Your Design to Get Your Work Done Faster
The DPO70000 and the DSA70000 Series are the new generation of real-time digital phosphor oscilloscopes and are the industry’s best solution to the challenging signal integrity issues faced by designers verifying, characterizing, debugging, and testing sophisticated electronic designs. The specialized DSA70000 Series provides a complete and dedicated solution to address the challenges of high-speed serial designs.
The family features exceptional performance in signal acquisition and analysis, operational simplicity, and unmatched debugging tools to accelerate your day-to-day tasks. The largest screen in the industry and the intuitive user interface provide easy access to the maximum amount of information.
Unmatched Acquisition Performance
Signal Fidelity of Tektronix Oscilloscopes Ensures Confidence in Your Measurement Results
- High bandwidth up to 20 GHz matched across 2, 3, or 4 channels and enabled by Tektronix proprietary DSP enhancement. The user-selectable DSP filter on each channel provides magnitude and phase correction plus bandwidth extension to 20 GHz for more accurate representation of extremely fast signals. The DSP filter on each channel can also be switched off to take advantage of true analog bandwidth for applications needed the highest available raw data capture.
- Bandwidth Enhance to the probe tip, extended to support bandwidth steps, gives you an oscilloscope with bandwidth adjustable to capture transitions accurately without excess frequencies and noise.
- High sample rate on all models, on all channels, to capture more signal details (transients, imperfections, fast edges)
- 50 GS/s on all four channels for the 12.5, 16, and 20 GHz models
- 25 GS/s on all four channels for the 4, 6, and 8 GHz models
- Lowest jitter noise floor and vertical accuracy for very accurate measurements
- Longest acquisition of the industry to provide more resolution and longer time sequence
- Standard 10 M samples per channel on the DPO70000 Series and 20 M on the DSA70000 Series
- Optional up to 100 M samples on all four channels for the 4, 6, and 8 GHz models
- Optional up to 200 M samples on all four channels for the 12.5, 16, and 20 GHz models
- Easily manage this deep record length, provide detailed comparison and analysis of multiple waveform segments with the MultiView Zoom™ feature. Automatically scroll through deep records visually, or create a math expression to instantly highlight differences
- Highest-performance probing solutions with bandwidth enhanced to the probe tip for differential and single-ended voltage signals, because accurate design verification depends on high-bandwidth access to critical signals and high-fidelity signal capture
![A001_0761-N.jpg A001_0761-N](/-/media/sites/default/files/media/image/a001_0761-n.jpg)

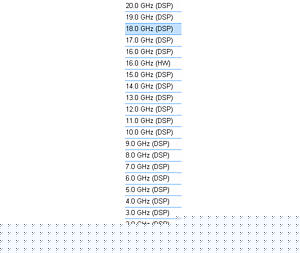

User-selectable bandwidth limiting choices
![A000_5076-N.jpg A000_5076-N](/-/media/sites/default/files/media/image/a000_5076-n.jpg)
Zoom in on four areas of interest simultaneously to compare them
![A000_9404-N.jpg A000_9404-N](/-/media/sites/default/files/media/image/a000_9404-n.jpg)

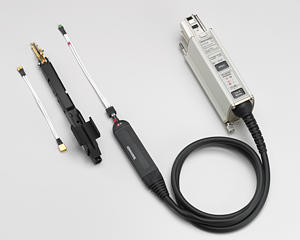

Highest-performance P7500 TriMode probes
Accelerate the Debug of Complex Electrical Designs
FastAcq Acquisition Mode Expedites Debugging by Clearly Showing Imperfections
More than just color-grading, FastAcq’s proprietary DPX® acquisition technology captures signals at more than 300,000 waveforms per second on all four channels simultaneously, dramatically increasing the probability of discovering infrequent fault events. And with a simple turn of the intensity knob you can clearly “see a world others don’t see”, displaying the complete picture of your circuit’s operation. Some oscilloscope vendors claim high waveform capture rates for short bursts of time, but only Tektronix oscilloscopes, enabled by DPX technology, can deliver these fast waveform capture rates on a sustained basis — saving minutes, hours, or even days by quickly revealing the nature of faults so sophisticated trigger modes can be applied to isolate them.
![A000_4840-N.jpg A000_4840-N](/-/media/sites/default/files/media/image/a000_4840-n.jpg)
Maximize the probability of capturing elusive glitches and other infrequent events with FastAcq acquisition mode.
The Ability to Trigger an Oscilloscope on Events of Interest is Paramount in Complex Signal Debug and Validation
Whether you’re trying to find a system error or need to isolate a section of a complex signal for further analysis, like a DDR read or write burst. Tektronix’ Pinpoint® triggering provides the solution. The Pinpoint trigger system uses Silicon Germanium (SiGe) technology to provide very high trigger sensitivity with very low trigger jitter and ability to capture very narrow glitches. Pinpoint triggering allows selection of virtually all trigger types on both A and B trigger events. Other trigger systems offer multiple trigger types only on a single event (A event), with delayed trigger (B event) selection limited to edge type triggering and often do not provide a way to reset the trigger sequence if the B event doesn’t occur. But Pinpoint triggering provides the full suite of advanced trigger types on both A and B triggers, logic qualification to control when to look for these events, and reset triggering to begin the trigger sequence again after a specified time, state, or transition so that even events in the most complex signals can be captured. Other oscilloscopes typically offer less than 20 trigger combinations; Pinpoint triggering offers over 1400 combinations, all at full performance.
With Enhanced Triggering, you can choose to compensate for the difference in time there is between the trigger path and the display path and eliminate virtually any trigger jitter at the trigger point. In this mode, the trigger point can be used as a measurement reference.
![A000_5910-N.jpg A000_5910-N](/-/media/sites/default/files/media/image/a000_5910-n.jpg)
Isolate glitches down to 100-ps wide
![A000_5911-N.jpg A000_5911-N](/-/media/sites/default/files/media/image/a000_5911-n.jpg)

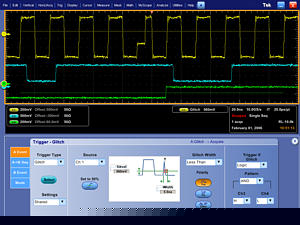

Isolate only the valid glitches
Protocol and Serial Pattern Triggering
To debug serial architectures, use the serial pattern triggering for NRZ serial data stream with built-in clock recovery and correlate events across physical and link layer. This feature comes standard on the DSA70000 series and is available on DPO70000 models as Opt. PTH. The instrument can recover the clock signal, identify transitions, and allow you to set the desired encoded words for the serial pattern trigger to capture. Opt. PTH and the DSA70000 Series cover serial standards up to 3.125 Gbps.
![A000_9403-N.jpg A000_9403-N](/-/media/sites/default/files/media/image/a000_9403-n.jpg)
NRZ Pattern Lock Triggering of a 640-bit long serial test pattern SATA 6Gbps
Pattern Lock Triggering adds a new dimension to NRZ serial pattern triggering by enabling the oscilloscope to take synchronized acquisitions of a long serial test pattern with outstanding time base accuracy. Pattern lock triggering can be used to remove random jitter from long serial data patterns. Effects of specific bit transitions can be investigated, and averaging can be used with mask testing. This feature supports up to 6.25 Gbps NRZ serial data stream and is standard on the DSA70000 instruments, or included as part of Option PTH on the DPO70000 models.
Large 12.1 inches XGA Display Screen
The DPO/DSA70000 Series have the largest display in the industry with a 12.1” XGA touch screen that gives up to 15% more waveform display than other oscilloscopes of their classes.
![A000_4846-N.gif A000_4846-N](/-/media/sites/default/files/media/image/a000_4846-n.gif)
How does a 12.1-in. display compare to the display size of other oscilloscopes?
10 vertical divisions give you 25% more vertical measurement resolution than other oscilloscopes.
Unmatched Usability
The TekConnect™ probe interface provides versatility and ease of use enabled by intelligent bidirectional oscilloscope-to-probe communication and maintain signal fidelity.
The DPO/DSA70000 Series instruments contain a comprehensive suite of features, such as a touch screen, shallow menu structures, intuitive graphical icons, knob-per-channel vertical controls, support for right mouse clicks, mouse wheel operation, and intuitive Export/Save/Recall menus.
Interoperability with Logic Analyzers for Digital Design and Debug
Tektronix' Integrated View (iView™) data display enables digital designers to solve signal integrity challenges and effectively debug and verify their systems more quickly and easily. This integration allows designers to view time-correlated digital and analog data in the same display window, and isolate the analog characteristics of the digital signals that are causing systems failures. No user calibration is required. And, once set up, the iView feature is completely automated.
Unmatched Versatility
Get the Most of Your Oscilloscope by Fully Controlling its Waveform Acquisition and Display Parameters.
You have the choice of three horizontal time base modes of operations. If you are simply doing signal exploration and want to interact with a lively signal, you will use the Automatic or interactive default mode that provides you with the liveliest display update rate. If you want a precise measurement and the highest real-time sample rate that will give you the most measurement accuracy, then the Constant Sample Rate mode is for you. It will maintain the highest sample rate and provide the best real-time resolution. The last mode is called the Manual mode because it ensures direct and independent control of the sample rate and record length.
![A000_9405-N.jpg A000_9405-N](/-/media/sites/default/files/media/image/a000_9405-n.jpg)
3 modes of operation of the horizontal time base
With the MyScope® Feature, Create Your Own Control Windows With Only the Controls, Features, and Capabilities that You Care About
Easily create your own personalized "toolbox" of oscilloscope features in a matter of minutes using a simple, visual, drag-and-drop process. Once created, these custom control windows are easily accessed through a dedicated MyScope button and menu selection on the oscilloscope button/menu bar, just like any other control window. You can make an unlimited number of custom control windows, enabling each person who uses the oscilloscope in a shared environment to have their own unique control window. MyScope control windows will benefit all oscilloscope users, eliminating the ramp-up time that many face when returning to the lab after not using an oscilloscope for a while, and enables the power user to be far more efficient. Everything you need is found in one control window rather than having to constantly navigate through menu after menu to repeat similar tasks.
![A000_4838-N.jpg A000_4838-N](/-/media/sites/default/files/media/image/a000_4838-n.jpg)
Drag and drop menu items of interest to create the MyScope control window
With OpenChoice® Software, Customize Your Test and Measurement System with Familiar Analysis Tools
The analysis and networking features of OpenChoice software add more flexibility to Tektronix' Windows XP oscilloscopes: Using the fast embedded bus, waveform data can be moved directly from acquisition to analysis applications on the Windows desktop at much faster speeds than conventional GPIB transfers. Tektronix’ implementation of industry standard protocols, such as TekVISA™ interface and ActiveX controls, are included for using and enhancing Windows applications for data analysis and documentation. IVI instrument drivers are included to enable easy communication with the oscilloscope using GPIB, serial data, and LAN connections from programs running on the instrument or an external PC. Or, use the Software Developer’s Kit (SDK) to help create custom software to automate multistep processes in waveform collection and analysis with Visual BASIC, C, C++, MATLAB, LabVIEW, LabWindows/CVI, and other common Application Development Environments (ADE). Integration of the oscilloscope with external PCs and non-Windows hosts is also supported. In addition, the OpenChoice architecture provides a comprehensive software infrastructure for faster, more versatile operations. Data transfer programs, such as the Excel or Word toolbar are used to simplify analysis and documentation on the Windows desktop or on an external PC.
More Insight into Your Complex Electrical Design for Characterization and Compliance Testing
Such as a simple math expression, waveform mask testing, a pass/fail compliance test, event searching, event marking, or a custom application that you develop yourself, the DPO/DSA70000 Series offers the industry’s most comprehensive set of analysis and compliance tools.
A Wide Range of Built-In Advanced Waveform Analysis Tools
Waveform cursors make it easy to measure trace-to-trace timing characteristics, while cursors that link between YT and XY display modes make it easy to investigate phase relationships and Safe Operating Area violations. Select from 53 automatic measurements using a graphical palette that logically organizes measurements into Amplitude, Time, Combination, Histogram, and Communications categories. Gather further insight into your measurement results with statistical data such as mean, min, max, standard deviation, and population.
Define and apply math expressions to waveform data for on-screen results in terms that you can use. Access common waveform math functions with the touch of a button. Or, for advanced applications, create algebraic expressions consisting of live waveforms, reference waveforms, math functions, measurement values, scalars, and user-adjustable variables with an easy-to-use calculator-style editor.
FFT - To analyze your signal in the spectral domain, use the basic spectral (provides you with the best parameter), or use advanced spectral with the manual time base horizontal mode (to directly control the frequency span, center frequency, and resolution bandwidth).
Filtering - Enhance your ability to isolate or remove some important component of your signal (noise or specific harmonics of the signal) by creating your own filters, or using the filters provided as standard with the instrument. These customizable FIR filters can be used to implement today’s preferred signal-filtering techniques, including to remove the pre-emphasis or to minimize the effects of fixtures and cables connected to the device under test.
![A000_4839-N.jpg A000_4839-N](/-/media/sites/default/files/media/image/a000_4839-n.jpg)
Capture data into Microsoft Excel using the unique Excel toolbar, and create custom reports using the Word toolbar
![A000_9406-N.jpg A000_9406-N](/-/media/sites/default/files/media/image/a000_9406-n.jpg)

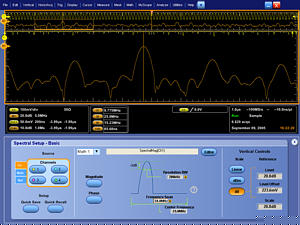

Basic spectral UI control window
A Breadth of Tools to Extend Waveform Analysis Even Further
Jitter, Timing and Eye-Diagram Analysis (Opt. DJA) - Tight timing margins associated with today’s serial buses demand stable, low jitter designs. DPOJET extends the oscilloscope capability by making jitter, timing, and eye-diagram measurements over contiguous clock and data cycles in a single-shot real-time acquisition. With multiple measurements and a variety of analysis tools including spectral and trend plots, DPOJET quickly shows system timing under variable conditions. It also provides Rj/Dj on signals without a repeating pattern and without requiring a fixed pattern or length. You can get insight into the signal characteristics like SSC profile using the analysis features and perform pass-fail testing using eye diagram masks and limit files for testing against statistical limits using the compliance features.
This tool is available for the DPO70000 and DSA70000 Series as Opt. DJA.
![A001_3855-N.jpg A001_3855-N](/-/media/sites/default/files/media/image/a001_3855-n.jpg)

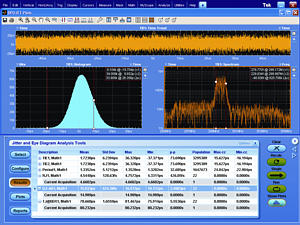

Jitter, Timing, and Eye-Diagram Analysis
Advanced Event Search and Mark (Opt. ASM) - Event Search and Mark will relieve the user from the tedious task of examining data by highlighting important events, skipping the unimportant ones, and enhancing the comprehension of event relationships. You can navigate between the events of interest effortlessly. A basic event (edge-only) search and mark is provided as a standard feature; and support for more advanced event types like transition, setup and hold, or logic pattern, is provided with the ASM option on the DPO70000 Series, standard on the DSA70000.
![A000_9820-N.jpg A000_9820-N](/-/media/sites/default/files/media/image/a000_9820-n.jpg)
Accelerating the research of specific events in an acquired waveform.
Waveform Limit Testing (Opt. LT) - This feature consists of comparing an acquired waveform to boundaries. These boundaries are typically defined by the user to specify a tolerance band around a reference waveform. If any part of the acquired waveform falls outside the limit, the software returns a failure message and the location of the failure on the waveform.
Communications Mask Testing (Opt. SM) - This feature provides a complete portfolio of masks for verifying compliance to serial communications standards. It supports 156 Standards Masks.
- ITU-T (1.544 Mbps to 155 Mbps)
- ANSI T1.102 (1.544 Mbps to 155 Mbps)
- Ethernet IEEE 802.3, ANSI X3.263 (1.544 Mbps to 3.125 Gbps XAUI)
- Sonet/SDH (51.84 Mbps to 2.4883 Gbps)
- Fiber Channel (133 Mbps to 4.25 Gbps*1)
- InfiniBand (2.5 Gbps)
- USB (12 Mbps to 480 Mbps)
- Serial ATA (1.5 Gbps, 3 Gbps)
- Serial Attached SCSI (1.5 Gbps, 3 Gbps)
- IEEE 1394b (491.5 Mbps to 1.966 Gbps)
- Rapid I/O (1.25 Gbps to 3.125 Gbps)
- OIF Standards (2.488 Gbps to 3.11 Gbps)
- PCI Express (2.5 Gbps)
*1 A 4.25 Gbps mask supported using Glitch Trigger. It is standard on the DSA70000 Series, and optional as Opt. MTH on DPO70404, DPO70604, and DPO70804.
![A000_7614-N.jpg A000_7614-N](/-/media/sites/default/files/media/image/a000_7614-n.jpg)

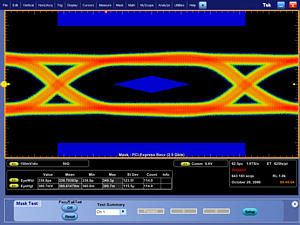

Test eye diagram in equivalent time against the standard mask.
![A001_7917-N.jpg A001_7917-N](/-/media/sites/default/files/media/image/a001_7917-n.jpg)

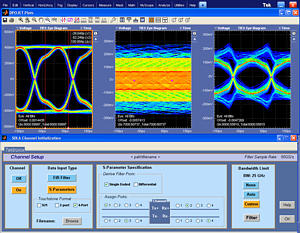

High-Speed Serial Data Link Analysis
High-Speed Serial Data Link Analysis (Opt. SLE or SLA) - This application enables designers the most insight into the causes of eye closure. It emulates channel embed/de-embed emulation, supports DFE/FFE equalization algorithms used in receivers, and allows users to mimic the addition/removal of de- or pre-emphasis in the transmitter.
Serial Data Compliance and Analysis (Opt. RTE) - Patented Real-Time Eye (RT-Eye® clock recovery and eye-rendering) provides high-speed serial data domain expertise to enable analysis and compliance measurements for testing high-speed serial standards like PCI Express, Serial ATA, SAS, InfiniBand, FB-DIMM, as well as Front Side Bus (FSB), XAUI, Fiber Channel, IEEE 1394b, and RapidIO. It recovers the clock of the serial stream to ≥10 Gbps and generates very high-precision eye diagrams with an accumulated waveform database. Serial data compliance and analysis comes standard on the DSA70000 Series, and optional on the DPO70404, DPO70604, and DPO70804 as Opt. RTE. The compliance modules for PCI Express, Serial ATA, SAS, InfiniBand, and FB-DIMM are options on both DSA70000 Series and DPO70000 Series (Opt. PCE, SST, IBA, or FBD).
![A000_5703-N.jpg A000_5703-N](/-/media/sites/default/files/media/image/a000_5703-n.jpg)

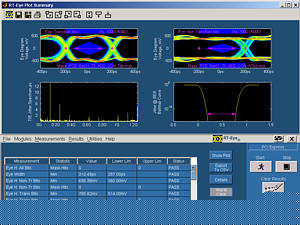

RT-Eye® version 2.0 - PCI Express Rev2 Compliance test
HDMI Compliance Testing (Opt. HT3) - Compliance testing: This is your complete solution for HDMI compliance testing, enabling unprecedented efficiency by offering a complete solution of unmatched reliable automation to support the widest range of tests in the industry.
![A000_5916-N.jpg A000_5916-N](/-/media/sites/default/files/media/image/a000_5916-n.jpg)

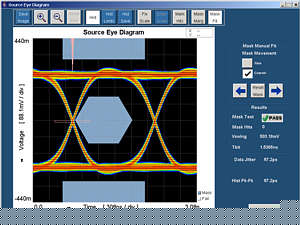

HDMI compliance testing
![A001_6597-N.jpg A001_6597-N](/-/media/sites/default/files/media/image/a001_6597-n.jpg)

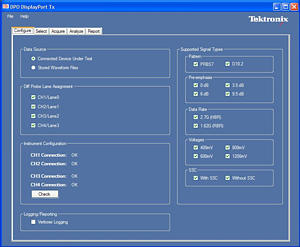

DisplayPort (Opt. DSPT)
DisplayPort Automated Compliance Testing (Opt. DSPT) - Option DSPT builds upon the broad measurement capabilities of DPOJET Jitter and Eye-Analysis Tools by adding a test automation executive for DisplayPort source compliance testing. This solution complies with the VESA requirements for PHY test, matching the required tests to the particular capabilities of your source device. After test execution, the software produces a comprehensive report showing all tests performed, measured values, PASS or FAIL against compliance limits and test margins.
Ultra-Wideband Spectral Analysis and Ultra-Wideband Spectral Analysis Essentials (Opt. UWBE or UWB) - Ultra-Wideband microwave, optical and electrical signals require more real-time bandwidth than is possible with spectrum analyzer based solutions. Spectral Analysis and Digital Down Conversion of RF data is fast and easy and the down converted frequency span of interest may be exported for further analysis in tools such as RSAVu and MATLAB.
UWB in addition to UWBE adds: With automatic packet, TFC and data rate detection, support for all band groups, Time Frequency Codes and data rates, WiMedia PHY 1.2 analysis provides a complete solution. Rapid visualization, debug, and report generation of the Spectrograms, Power Spectral Density, QPSK/DCM Constellations, EVM-vs-Symbol, EVM-vs-Subcarrier, Common-Phase-Error-vs-Symbol, and Voltage-vs-Time plots and complete measurements are captured and documented for each test condition.
SignalVu™ Vector Signal Analysis (Opt. SVE, SVP, SVM) - Easily validate wideband designs and characterize wideband spectral events. By combining the signal analysis engine of the RSA6100A real-time spectrum analyzer with that of the industry’s widest bandwidth digital oscilloscopes, you can now evaluate complex signals up to 20 GHz without the need of an external down converter. You get the functionality of a vector signal analyzer, a spectrum analyzer, and the powerful trigger capabilities of a digital oscilloscope — all in a single package. Whether your design validation needs include wideband radar, high data rate satellite links, or frequency hopping communications, SignalVu™ vector signal analysis software can speed your time-to-insight by showing you time variant behavior of these wideband signals.
![A001_4345-N.jpg A001_4345-N](/-/media/sites/default/files/media/image/a001_4345-n.jpg)
UWB WiMedia analysis and measurements
![A001_7697-N.jpg A001_7697-N](/-/media/sites/default/files/media/image/a001_7697-n.jpg)

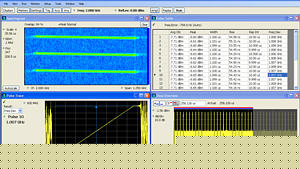

SignalVu™ enables detailed analysis in multiple domains
Power Measurement and Analysis (Opt. PWR) - Analyze power dissipation in power supply switching devices and magnetic components, and generate detailed reports in customizable formats. The HiRes acquisition mode delivers greater than 8 bits of vertical resolution on single-shot or repetitive signals at bandwidth up to 125 MHz. The powerful and flexible measurements, math, and math-on-math capabilities make it an ideal solution for performing power measurements, such as voltage, current, instantaneous power and energy, for power device designers.
![A000_5704-N.jpg A000_5704-N](/-/media/sites/default/files/media/image/a000_5704-n.jpg)

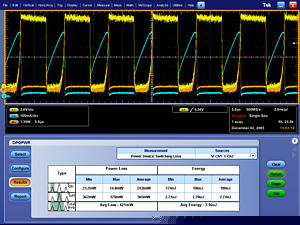

Power measurements and analysis
Ethernet Compliance Testing (Opt. ET3) - Provides compliance testing for 10/100/1000Base-T signals.
![A000_7613-N.jpg A000_7613-N](/-/media/sites/default/files/media/image/a000_7613-n.jpg)

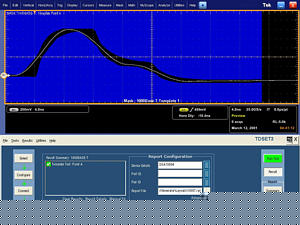

Ethernet compliance testing
DVI Compliance Testing (Opt. DVI) - Provides Digital Visual Interface physical layer validation and compliance testing with automated eye diagram generation and parametric testing.
USB Compliance Testing (Opt. USB) - Provides compliance testing for USB 2.0 signals.
![A000_7615-N.jpg A000_7615-N](/-/media/sites/default/files/media/image/a000_7615-n.jpg)

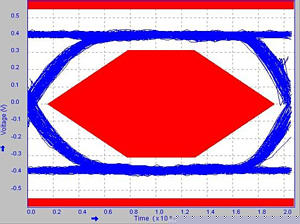

USB compliance testing
DDR Memory System Analysis (Option DDRA) -
The Option DDRA includes a DDR Wizard to speed test setup and execution for a wide selection of current and custom DDR standards and speeds. DDRA accelerates the analysis, validation, and JEDEC conformance testing of memory systems based on DDR1, DDR2, DDR3, and DDR derivative technologies, like LPDDR and GDDR3. DDRA supports the common data rates plus custom data rates up to and beyond 1600 MT/s. JEDEC-conforming pass/fail tests and report generation are included.
In addition to PinPoint® triggers suitable for DDR read/write identification, DDRA now adds advanced search algorithms to automatically detect signal details like transfer rate, voltage levels of data, strobe, clocks, and chip-select signals. DDRA then marks every occurrence of read and/or write bursts in the acquired waveform. Search and mark tools allow stepping through each burst and then, based on search criteria, to generate eye diagrams and perform JEDEC standard measurements using DPOJET Advanced Jitter and Eye-Analysis Tools.
![A001_8597-N.jpg A001_8597-N](/-/media/sites/default/files/media/image/a001_8597-n.jpg)

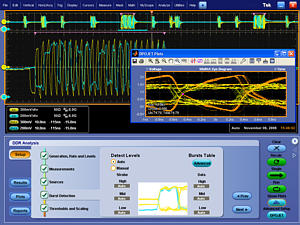

Identify and separate all DDR read from write bursts.
DSA70000 Series
For Developing with Today’s High-Speed Serial Standards, the DSA70000 Digital Serial Analyzer is Your Uncompromised High-Performance, Dedicated Solution to Efficiently Address Your Design Challenges
The DSA70000 Series is a new generation of real-time digital serial analyzers based on the same advanced technology as the DPO70000 real-time digital phosphor oscilloscopes. As high-speed serial technology becomes more pervasive, more designers are looking for easy to use, complete, and dedicated solutions for verifying, characterizing, debugging, and testing sophisticated high-speed serial designs. The DSA70000 Series is specifically targeted to address the challenging high-speed serial design issues faced by designers, by encapsulating extended high-speed serial data domain expertise. It inherits exceptional signal acquisition performance, operational simplicity, and unmatched debugging tools from the DPO70000 Series, to accelerate your day-to-day tasks. It also features the extended analysis tools that enable high-speed serial signal analysis and compliance measurements in a specialized instrument.
The DSA70000 Series Analyzers provides the signal fidelity of Tektronix oscilloscopes to ensure confidence in your measurement results: high sample rate on all models, on all channels, to capture more signal details (transients, imperfections, fast edges), 25 GS/s on all four channels for the 4, 6, and 8 GHz models, 50 GS/s on all four channels for the 12.5, 16, and 20 GHz models, bandwidth enhancement as well as best low jitter noise floor and vertical accuracy for very accurate measurements.
The DSA70000 Series provides the longest acquisition of the industry to provide more resolution and longer time sequence—a standard 20 M on the DSA Series, or an optional up to 100 M samples on all four channels for the 4, 6, and 8 GHz models, 200 M samples on all four channels for the 12.5, 16, and 20 GHz models. Easily manage this deep record length and provide detailed comparison and analysis of multiple waveform segments with the MultiView Zoom™ feature.
The DSA70000 analyzers share the DPX technology of the DPO70000 and can deliver high waveform capture rate at more than 300,000 waveforms per second. The DSA70000 Series capture these intermittent fault events that can break a design with the FastAcq acquisition mode. With Pinpoint® triggering, the DSA70000 series is also equipped to isolate a section of a complex signal for further analysis.
To debug serial architectures, the DSA70000 Series features the NRZ serial pattern triggering and protocol decode with built-in clock recovery. It recovers the clock signal, identifies the transitions, and decodes characters and other protocol data. You can see the captured bit sequences decoded into their words for convenient analysis (for 8b/10b and other encoded serial data streams), or you can set the desired encoded words for the serial pattern trigger to capture. Lastly, you can synchronize long serial test pattern acquisitions up to 6.25 Gbps to remove random jitter. The DSA70000 Series covers serial standards up to 3.125 Gbps.
The DSA70000 Series features the highest accuracy jitter and timing measurements as well as comprehensive analysis algorithms. Tight timing margins demand stable, low-jitter designs. You can make jitter measurements over contiguous clock cycles from every valid pulse in a single-shot acquisition. Multiple measurements and trend plots quickly show system timing under variable conditions. It also includes Random Jitter and Deterministic Jitter separation as well as Total Jitter measurement at Bit Error Ratio to 10-18
Communications Mask Testing provides a complete portfolio of masks for verifying compliance to serial communications standards. It supports 156 Standards Masks – ITU-T (1.544 Mbps to 155 Mbps)/ANSI T1.102 (1.544 Mbps to 155 Mbps); Ethernet IEEE 802.3; ANSI X3.263 (1.544 Mbps to 3.125 Gbps XAUI); Sonet/SDH (51.84 Mbps to 2.4883 Gbps); Fiber Channel (133 Mbps to 4.25 Gbps*1). InfiniBand (2.5 Gbps); USB (12 Mbps to 480 Mbps); Serial ATA (1.5 Gbps, 3 Gbps); Serial Attached SCSI (1.5 Gbps, 3.0 Gbps); IEEE 1394b (491.5 Mbps to 1.966 Gbps); Rapid I/O (1.25 Gbps to 3.125 Gbps); OIF Standards (2.488 Gbps to 3.11 Gbps); PCI Express (2.5 Gbps).
Accurate, Simple, and Customizable Physical Layer Testing on High-Speed Serial Standards. When designing to industry standards, analog validation and compliance testing (Front Side Bus, PCI Express, FB-DIMM, Serial ATA, Serial Attached SCSI, Fiber Channel, XAUI, IEEE1394b, RapidIO) is critical to ensure device interoperability. Patented Real-Time (RT-Eye®) clock recovery and Eye Rendering provides standard specific clock recovery, high-precision eye diagrams for transition and nontransition bits and accurate jitter measurements, and de-emphasis measurements. Standard-specific compliance and analysis modules that configure the pass/fail waveform mask and measurement limit testing are also available as an option for PCI Express (Option PCE), for Serial ATA and SAS (Option SST), for FB-DIMM (Fully Buffered - Dual Inline Memory Module) (Option FBD), or InfiniBand (Option IBA)
*1 A 4.25 Gbps mask supported using Glitch Trigger. It is standard on the DSA70000 Series, and optional as Opt. MTH on DPO70404, DPO70604, and DPO70804.
Characteristics
Vertical System
DPO/DSA Models |
70404 |
70604 |
70804 |
71254 |
71604 |
72004 |
---|---|---|---|---|---|---|
Input Channels |
4 |
4 |
4 |
4 |
4 |
4 |
Bandwidth (user selectable DSP enhance) |
4 GHz |
6 GHz |
8 GHz |
12.5 GHz |
16 GHz |
2 settings: 20 GHz and 18 GHz |
Rise Time 10% to 90% (typical) |
93 ps |
62 ps |
47 ps |
34.3 ps |
27.5 ps |
22.5 ps |
Rise Time 20% to 80% (typical) |
65 ps |
43 ps |
33 ps |
23 ps |
21 ps |
17 ps |
Hardware Analog Bandwidth (-3 dB) |
4 GHz |
6 GHz |
8 GHz |
12.5 GHz |
16 GHz (typical) |
16 GHz (typical) |
DC Gain Accuracy |
±2% (of reading) |
|||||
Bandwidth Limits |
Depending on instrument model: 19 GHz, 18 GHz, 17 GHz, 16 GHz, 15 GHz, 14 GHz, 13 GHz, 12 GHz, 11 GHz, 10 GHz, 9 GHz, 8 GHz, 7 GHz, 6 GHz, 5 GHz, 4 GHz, 3 GHz, 2 GHz, 1 GHz, or 500 MHz |
|||||
Input Coupling |
DC (50 Ω), GND |
|||||
Input Impedance |
50 Ω ±1.5%, 1 MΩ with TCA-1MEG adapter |
|||||
Input Sensitivity 18 GHz and below 20 GHz and 19 GHz |
10 mV/div to 1 V/div (100 mV to 10 V full scale) 20 to 99.5 mV/div and 200 mV/div to 1 V/div |
|||||
Vertical Resolution |
8 bit (11 bit with averaging) |
|||||
Max Input Voltage, 50 Ω |
< 5.5 VRMS for ≥1 V full scale; also determined by TekConnect accessory |
|||||
Position Range |
±5 div |
|||||
Offset Range |
10 mV/div: ±450 mV 20 mV/div: ±400 mV 50 mV/div: ±250 mV 100 mV/div: ±4.5 V 200 mV/div: ±4.0 V 500 mV/div: ±2.5 V 1.0 V/div: 0 |
|||||
Offset Accuracy |
10 mV/div – 99.5 mV/div. ± (0.35% (offset value-position) + 1.5 mV + 1% of full scale) 100 mV/div – 1 V/div . ± (0.35% (offset value-position) + 15 mV + 1% of full scale) |
|||||
Delay between any two channels (typical) |
≤100 ps for any two channels with equal V/div and coupling settings ≤50 ps with BW enhance enabled (BW+) |
|||||
Channel-to-channel Isolation (Any Two Channels at Equal Vertical Scale Settings) |
≥120:1 (for input frequency 0 to 10 GHz) ≥80:1 (for input frequency >10 GHz to 12 GHz. ≥50:1 (for input frequency >12 GHz to 15 GHz) ≥25:1 (for input frequency >15 GHz) |
Time Base System
DPO/DSA Models |
70404 |
70604 |
70804 |
71254 |
71604 |
72004 |
---|---|---|---|---|---|---|
Time Base Range |
20 ps/div to 1000 s/div |
10 ps/div to 1000 s/div |
||||
Time Resolution (in ET/IT mode) |
200 fs |
100 fs |
||||
Time Base Delay Time Range |
-5.0 ks to 1.0 ks |
|||||
Channel-to-channel Deskew |
Range ±75 ns |
|||||
Delta Time Measurement Accuracy (typical) Over <100 ns duration; single shot; with signal rise time = 1.2X scope rise time |
888 fs |
695 fs |
611 fs |
504 fs |
482 fs |
525 fs |
Trigger Jitter (RMS) |
1 psRMS (typical) with enhanced triggering OFF <100 fsRMS with enhanced triggering ON |
|||||
Jitter Noise Floor(typical) (With BW+ bandwidth enhance enabled) |
450 fs |
450 fs |
450 fs |
300 fs |
300 fs |
400 fs |
Time Base Accuracy |
±1.5 ppm initial accuracy, aging <1 ppm per year |
Acquisition System
DPO/DSA Models |
70404 / 70604 / 70804 |
71254 / 71604 / 72004 |
---|---|---|
Sample Rates |
||
Real-time mode 1, 2, 3, or 4 channel (max) |
25 GS/s |
50 GS/s |
ET/IT Mode (max) |
5 TS/s |
10 TS/s |
Maximum Record Length per Channel |
||
With Standard Configuration |
10 M on all four channels (DPO70000 Series only) 20 M on all four channels (DSA70000 Series only) |
|
With Record Length Opt. 2XL |
20 M on all four channels (DPO70000 Series only) |
|
With Record Length Opt. 5XL |
50 M on all four channels |
|
With Record Length Opt. 10XL |
100 M on all four channels |
|
With Record Length Opt. 20XL |
N/A |
200 M on all four channels |
Maximum Duration at Highest Real-Time Resolution
DPO/DSA Models |
70404 / 70604 / 70804 |
71254 / 71604 / 72004 |
---|---|---|
Resolution |
40 ps (25 GS/s) |
20 ps (50 GS/s) |
Max Duration with Standard Memory |
0.4 ms DPO70000 Series; 0.8 ms for DSA70000 Series |
0.2 ms DPO70000 Series; 0.4 ms for DSA70000 Series |
Max Duration with Opt. 2XL |
0.8 ms (DPO70000 Series only) |
0.4 ms (DPO70000 Series only) |
Max Duration with Opt. 5XL |
2.0 ms |
1.0 ms |
Max Duration with Opt. 10XL |
4.0 ms |
2.0 ms |
Max Duration with Opt. 20XL |
N/A |
4.0 ms |
Acquisition Modes
Mode |
Description |
---|---|
FastAcq Acquisition Mode |
FastAcq optimizes the instrument for analysis of dynamic signals and capture of infrequent events |
Maximum FastAcq Waveform Capture Rate |
>300,000 wfms/s on all 4 channels simultaneously |
Waveform Database |
Accumulate waveform database providing three-dimensional array of amplitude, time, and counts |
Sample |
Acquire sampled values |
Peak Detect |
Captures narrow glitches at all real-time sampling rates: 1 ns at ≤125 MS/s; 1/sample rate at ≥250 MS/s |
Averaging |
From 2 to 10,000 waveforms included in average |
Envelope |
From 1 to 2×109 waveforms included in min-max envelope |
Hi-Res |
Real-time boxcar averaging reduces random noise and increases resolution |
FastFrame™ Acquisition |
Acquisition memory divided into segments; maximum trigger rate >310,000 waveforms per second. Time of arrival recorded with each event. Frame finder tool helps to visually identify transients. |
Roll Mode |
Up to 10 MS/s with a maximum record length of 40 M |
Pinpoint® Trigger System
|
DPO Models 70404 / 70604 / 70804 / 71254 / 71604 / 72004 |
DSA Models 70404 / 70604 / 70804 / 71254 / 71604 / 72004 |
---|---|---|
Sensitivity |
||
Internal DC Coupled |
4% of full scale from DC to 50 MHz 10% of full scale at 4 GHz 20% of full scale at 8 GHz 50% of full scale at 11 GHz |
|
External (Auxiliary Input) 50 Ω |
250 mV from DC to 50 MHz, increasing to 350 mV at 1.0 GHz. |
|
Trigger Characteristics |
||
A Event and Delayed B Event Trigger Types |
Edge, Glitch, Runt, Width, Transition Time, Time-out, Pattern, State, Setup/Hold, Window—all except Edge, Pattern, and State can be Logic State qualified by up to two channels |
|
Main Trigger Modes |
Auto, Normal, and Single |
|
Enhanced Triggering |
User-selectable; it corrects the difference in timing between the trigger path and the acquired data path (it supports all Pinpoint trigger types on both A- and B-Events except pattern trigger and not available in FastAcq). |
|
Trigger Sequences |
Main, Delayed by Time, Delayed by Events, Reset by Time, Reset by State, Reset by Transition. All sequences can include separate horizontal delay after the trigger event to position the acquisition window in time. |
|
Communications-related Triggers |
Requires Opt. MTH |
Standard |
Support for AMI, HDB3, BnZS, CMI, MLT3 and NRZ encoded communications signals. Select among isolated positive or negative one, zero pulse form or eye patterns as applicable to the standard. |
||
Serial Pattern Trigger |
Requires Opt. PTH |
Standard |
Up to 64 bit serial word recognizer, bits specified in binary (high, low, don't care) or hex format. Trigger on NRZ-encoded data up to 1.25 GBaud. |
||
Trigger on 8b/10b-encoded data from 1.25 to 3.125 GBaud (40 bits) |
||
Clock Recovery System |
Requires Opt. PTH or Opt. MTH |
Standard |
Clock Recovery Phase Locked Loop Bandwidth |
Fixed at FBaud/1600 |
|
Frequency Range |
1.5 MBaud to 3.125 GBaud |
|
Clock Recovery Jitter (RMS) |
<0.25% bit period + 2 psRMS for PRBS data patterns <0.25% bit period + 1.5 psRMS for repeating "0011” data pattern |
|
Tracking/Acquisition Range |
±2% of requested baud |
|
Minimum Signal Amplitude needed for Clock Recovery |
1 divp-p up to 1.25 Gbaud 1.5 divp-p above 1.25 Gbaud |
|
Trigger Level Range Internal |
±120% of full scale from center of screen |
|
AUX Trigger |
TekConnect interface: ±5 V |
|
Line |
Fixed at 0 V |
|
Trigger Coupling |
DC, AC (attenuates <100 Hz), HF Rej (attenuates >20 kHz), LF Rej (attenuates <200 kHz), Noise Reject (reduces sensitivity) |
|
Trigger Holdoff Range |
250 ns min to 12 s max |
Trigger Modes
Mode |
Description |
---|---|
Edge |
Positive or negative slope on any channel or front panel auxiliary input. Coupling includes DC, AC, noise reject, HF reject, and LF reject. |
Glitch |
Trigger on or reject glitches of positive, negative, or either polarity. Minimum glitch width is down to 150 ps (typical) with rearm time of 300 ps |
Width |
Trigger on width of positive or negative pulse either within or out of selectable time limits (down to 150 ps). |
Runt |
Trigger on a pulse that crosses one threshold but fails to cross a second threshold before crossing the first again. Event can be time- or logic-qualified. |
Time-out |
Trigger on an event which remains high, low, or either, for a specified time period. Selectable from 300 ps. |
Transition |
Trigger on pulse edge rates that are faster or slower than specified. Slope may be positive, negative, or either. |
Setup/Hold |
Trigger on violations of both setup time and hold time between clock and data present on any two input channels. |
Pattern |
Trigger when pattern goes false or stays true for specified period of time. Pattern (AND, OR, NAND, NOR) specified for four input channels defined as high, low, or don't care. |
State |
Any logical pattern of channels (1, 2, 3) clocked by edge on channel 4. Trigger on rising or falling clock edge. |
Window |
Trigger on an event that enters or exits a window defined by two user-adjustable thresholds. Event can be time- or logic-qualified. |
Trigger Delay by Time |
3.2 ns to 3 Ms |
Trigger Delay by Events |
1 to 2 G events |
Comm |
Standard feature on the DSA70000, provided as part of Opt. MTH on the DPO70000 Series. Support for AMI, HDB3, BnZS, CMI, MLT3 and NRZ encoded signals. |
Serial Pattern |
Trigger on NRZ-encoded data up to 3.125 Gbaud; above 1.25 Gbaud requires 8b/10b encoded data. Extended with pattern lock triggering to capture repeated acquisitions of long serial test patterns up to 6.25 Gbps. |
Search and Mark Events
Event |
Description |
---|---|
Basic |
Mark any events and document waveforms. Search positive, negative slopes or both on any channels. Event table summarizes all found events. All events are time stamped in reference to trigger position. Users can choose to stop acquisitions when an event is found. |
Advanced |
Search glitches or runts, as well as transition rate, pulse width, setup and hold, time-out, window violations, or find any logic or state pattern on any number of channels. Search DDR read or write bursts with Opt. DDRA. |
Waveform Measurements
Measurement |
Description |
---|---|
Automatic Measurements |
53, of which 8 can be displayed on screen at any one time; measurement statistics, user-definable reference levels, measurement within gates isolating the specific occurrence within an acquisition to take measurements on. |
Amplitude Related |
Amplitude, High, Low, Maximum, Minimum, Peak-to-Peak, Mean, Cycle Mean, RMS, Cycle RMS, Positive Overshoot, Negative Overshoot |
Time Related |
Rise Time, Fall Time, Positive Width, Negative Width, Positive Duty Cycle, Negative Duty Cycle, Period, Frequency, Delay |
Combination |
Area, Cycle Area, Phase, Burst Width |
Histogram Related |
Waveform Count, Hits in Box, Peak Hits, Median, Maximum, Minimum, Peak-to-Peak, Mean (μ), Standard Deviation (sigma), μ+1sigma, μ+2sigma, μ+3sigma |
Eye Pattern Related |
Extinction Ratio (absolute, %, dB), Eye Height, Eye Width, Eye Top, Eye Base, Crossing %, Jitter (p-p, RMS, 6sigma), Noise (p-p, RMS), Signal/Noise Ratio, Cycle Distortion, Q-Factor |
Waveform Processing/Math
Processing Type |
Description |
---|---|
Arithmetic |
Add, Subtract, Multiply, Divide Waveforms and Scalars |
Algebraic Expressions |
Define extensive algebraic expressions including Waveforms, Scalars, User-adjustable Variables and Results of Parametric Measurements e.g. (Integral (CH.1–Mean(CH.1))×1.414×VAR1) |
Math Functions |
Average, Invert, Integrate, Differentiate, Square Root, Exponential, Log 10, Log e, Abs, Ceiling, Floor, Min, Max, Sin, Cos, Tan, ASin, ACos, ATan, Sinh, Cosh, Tanh |
Relational |
Boolean result of comparison >, <, ≥, ≤, ==, != |
Frequency Domain Functions |
Spectral Magnitude and Phase, Real and Imaginary Spectra |
Vertical Units |
Magnitude: Linear, dB, dBm |
Phase: Degrees, radians, group delay |
|
IRE and mV units |
|
Window Functions |
Rectangular, Hamming, Hanning, Kaiser-Bessel, Blackman-Harris, Gaussian, Flattop2, Tek Exponential |
Waveform Definition |
As an arbitrary math expression |
Filtering Functions |
User-definable filters. Users specify a file containing the coefficients of the filter. Several filter files provided. |
Mask Function |
A function that generates a Waveform Database pixmap from a sample waveform. Sample count can be defined. |
Display Characteristics
Characteristic |
Description |
---|---|
Display Type |
Liquid crystal active-matrix color display |
Display Size |
Diagonal: 307.3 mm (12.1 in.) |
Display Resolution |
XGA 1024 horizontal × 768 vertical pixels |
Waveform Styles |
Vectors, Dots, Variable Persistence, Infinite Persistence |
Color Palettes |
Normal, Green, Gray, Temperature, Spectral, and User-defined |
Display Format |
YT, XY |
Computer System and Peripherals
Item |
Description |
---|---|
Operating System |
Windows XP |
CPU |
Intel Pentium 4, 3.4-GHz processor |
PC System Memory |
2 GB |
Hard Disk Drive |
Rear-panel, removable hard disk drive, 80 GB capacity |
CD-R/W Drive |
Front-panel CD-R/W drive with CD creation software application |
DVD Drive |
Read only |
Mouse |
Optical wheel mouse, USB interface |
Keyboard |
USB interface |
Input/Output Ports
Front Panel
Port |
Description |
---|---|
Aux Trigger Input |
See trigger specifications |
Recovered Clock |
SMA connector, ≤1.25 Gbps, Output swing ≥130 mVp-p into 50 Ω at 1.25 Gbps. Requires Opt. PTH or Opt. MTH to enable on DPO70000, standard on DSA70000. |
Recovered Data |
SMA connector, ≤1.25 Gbps, Output swing of 1010 repeating pattern 200 mV into 50 Ω at 1.25 Gbps. Requires Opt. PTH or Opt. MTH to enable on DPO70000, standard on DSA70000. |
DC Probe Calibration Output |
BNC connector, ±10 V DC for DC probe calibration. (Signal available only during probe calibration.) |
Fast Edge Output |
SMA connector provides fast edge signal. 1 kHz ±20%; 810 mV (base to top) ±20% into ≥10 kΩ load; 440 mV ±20% into a 50 Ω load.. |
AUX Trigger Output |
BNC connector, provides a TTL-compatible, polarity-switchable pulse when the oscilloscope triggers. |
USB 2.0 Port |
One in front, four on back. Allows connection or disconnection of USB keyboard, mouse, or storage device while oscilloscope is on. |
Rear Panel
Port |
Description |
---|---|
External Time Base Reference In |
BNC connector; allows time base system to phase lock to external 10/100 MHz reference. Optimized (by using a software switch) for either a highly stable clock or tracking mode. |
Time Base Reference Out |
BNC connector; provides TTL-compatible output of internal 10 MHz reference oscillator |
AUX Trigger Output |
BNC connector, 0 to 3 V; default output is A-Event Trigger low true |
Parallel Port |
IEEE 1284, DB-25 connector |
Audio Ports |
Miniature phone jacks for stereo microphone input and stereo line output. |
USB 2.0 Ports |
Four in back. Allow connection or disconnection of USB keyboard, mouse, or storage device while oscilloscope power is on. |
Keyboard Port |
PS/2 compatible |
Mouse Port |
PS/2 compatible |
LAN Port |
RJ-45 connector, supports 10Base-T, 100Base-T, and 1000Base-T |
Serial Port |
DB-9 COM1 port |
Windows Video Port |
15 pin D-sub connector on the rear panel; connects a second monitor to use dual-monitor display mode allowing analysis results and plots to be viewed along with the oscilloscope display. Video is DDC2B compliant. |
GPIB Port |
IEEE 488.2 standard |
Scope XGA Video Port |
15 pin D-sub connector on the rear panel, video is IBM XGA compatible. Connects to show the oscilloscope display, including live waveforms on an external monitor or projector. The primary Windows desktop can also be displayed on an external monitor using this port. |
TekLink™ |
Proprietary interface for connecting multiple Tektronix instruments |
Power |
100 to 240 VRMS, ±10%, 50/60 Hz; 115 VRMS ±10%, <870 Watts, 400 Hz; CAT II, <1100 VA typical |
Physical Characteristics
Dimensions |
mm |
in. |
---|---|---|
Benchtop Configuration |
||
Height |
298 |
11.74 |
Width |
451 |
17.75 |
Depth |
489.97 |
19.29 |
Weight |
kg |
lbs. |
Net |
20 |
44 |
Shipping |
34 |
75 |
Rackmount Configuration |
||
|
mm |
in. |
Height |
311 |
12.25 |
Width |
480.1 |
18.9 |
Depth (from rack mounting ear to back of instrument) |
546.1 |
21.5 |
Weight |
kg |
lbs. |
Net |
20 |
44 |
Kit |
2.7 |
6 |
Mechanical
Cooling — Required Clearance
|
mm |
in. |
---|---|---|
Top |
0 |
0 |
Bottom |
0 |
0 |
Left side |
76 |
3 |
Right side |
76 |
3 |
Front |
0 |
0 |
Rear |
0 |
0 |
Environmental
Temperature |
|
Operating |
5 °C to +45 °C |
Nonoperating |
–20 °C to +60 °C |
Humidity |
|
Operating |
8% to 80% relative humidity (RH) at up to 32 °C. 5% to 45% RH above +32 °C up to +45 °C |
Nonoperating |
5% to 95% relative humidity (RH). Upper limit derated to 45% RH above +30 °C up to +60 °C |
Altitude |
|
Operating |
10,000 ft. (3,048 m) |
Nonoperating |
40,000 ft. (12,190 m) |
Regulatory |
|
Electromagnetic Compatibility |
93/68/EEC; EN61326:1997 +A1 1998+A2:2000 |
Certifications |
UL 3111-1, CSA1010.1, ISO11469,EN61010-1, IEC 61010-1 |
Ordering Information
Model |
Description |
---|---|
DPO70404 |
4 GHz Digital Phosphor Oscilloscope |
DPO70604 |
6 GHz Digital Phosphor Oscilloscope |
DPO70804 |
8 GHz Digital Phosphor Oscilloscope |
DPO71254 |
12.5 GHz Digital Phosphor Oscilloscope |
DPO71604 |
16 GHz Digital Phosphor Oscilloscope |
DPO72004 |
20 GHz Digital Phosphor Oscilloscope |
DSA70404 |
4 GHz Digital Serial Analyzer |
DSA70604 |
6 GHz Digital Serial Analyzer |
DSA70804 |
8 GHz Digital Serial Analyzer |
DSA71254 |
12.5 GHz Digital Serial Analyzer |
DSA71604 |
16 GHz Digital Serial Analyzer |
DSA72004 |
20 GHz Digital Serial Analyzer |
All Models Include: Accessory pouch, front cover, mouse, keyboard, quick start user manual (071-173x-xx), probe calibration and deskew fixture, DPO70000 Series product software CD/DVD-ROM, DPO70000 Series operating system restoration CD/DVD-ROM, Optional applications software CD/DVD-ROM, performance verification procedure PDF file, GPIB programmer’s reference (on product software CD/DVD-ROM), calibration certificate documenting NIST traceability, Z 540-1 compliance and ISO9001, power cord, one year warranty.
Note: Please specify quick-start user manual language and power plug when ordering.
(4) TekConnect® to 2.92 mm adapters (TCA-292MM) and (1) Tekconnect to BNC adapter (TCA-BNC)
Options
Instrument Options
Record Length Options for DPO70000 Series |
|
---|---|
Opt. 2XL |
20 MSamples/ch |
Opt. 5XL |
50 MSamples/ch |
Opt. 10XL |
100 MSamples/ch |
Opt. 20XL*9 |
200 MSamples/ch |
Record Length Options for DSA70000 Series |
|
Opt. 5XL |
50 MSamples/ch |
Opt. 10XL |
100 MSamples/ch |
Opt. 20X*9 |
200 MSamples/ch |
Software Options for DPO70000 Series |
|
Opt. PTH |
Protocol Triggering and Decoding for 8b/10b-encoded Serial Signals up to 3.125 Gbps. Includes hardware clock recovery and pattern lock triggering. |
Opt. MTH |
Mask testing for Serial Standards up to 4.25 Gbps. Includes hardware clock recovery. |
Opt. ASM |
Advanced Event Search and Mark |
Software Options for DPO70000 Series and DSA70000 Series |
|
Opt. LT |
Waveform Limit Testing |
Opt DDRA*10 |
DDR Memory Bus Analysis |
Opt. DJA |
DPOJET Jitter and Eye Diagram Analysis |
Opt. ET3*2 |
Ethernet Compliance Test Software |
Opt. USB*3 |
USB 2.0 Compliance Test Software only |
Opt. PWR*4 |
Power Measurement and Analysis Software |
Opt. HT3 |
HDMI Compliance Test Software |
Opt. DSPT |
DisplayPort Compliance Test Solution |
Opt. DVI |
DVI Compliance Test Solution |
Opt. PCE*5 |
PCI Express™ Compliance Module for RT-Eye Serial Data Compliance and Analysis Software |
Opt. SST*5 |
SATA and SAS Analysis Software Module for RT-Eye Serial Data Compliance and Analysis Software |
Opt. FBD*5 |
FB-DIMM Compliance Module for RT-Eye Serial Data Compliance and Analysis Software |
Opt. IBA*5 |
InfiniBand Compliance Module for RT-Eye Serial Data Compliance and Analysis Software |
Opt UWB |
Ultra-Wideband Spectral Analysis |
Opt UWBE |
Ultra-Wideband Spectral Analysis Essentials |
Opt. SVE |
SignalVu™ Essentials – Vector Signal Analysis Software |
Opt. SVP*11 |
Advanced Signal Analysis (including pulse measurements). Requires option SVE. |
Opt. SVM*11 |
General Purpose Modulation Analysis. Requires option SVE. |
Opt. SLE |
Serial Data Link Analysis Essentials (no Equalization). |
Opt. SLA |
Serial Data Link Analysis Advanced (with Equalization). |
*2 Requires Ethernet Test Fixture.
*3 Requires TDSUSBF (USB Test Fixture).
*4 At least Opt. 2XL and a TCA-1MEG TekConnect 1 MΩ buffer amplifier are recommended for use.
*5 Requires Opt. RTE on DPO70000 Series.
*9 For models of bandwidth >= 12.5 GHz only
*10 Requires DJA and ASM
*11 Requires Opt. SVE, SVEH, or SVEU
User Manual Options
Option |
Description |
---|---|
Opt. L0 |
English |
Opt. L1 |
French |
Opt. L3 |
German |
Opt. L5 |
Japanese |
Opt. L7 |
Simple Chinese |
Opt. L8 |
Standard Chinese |
Opt. L9 |
Korean |
Opt. L10 |
Russian |
Opt. L99 |
No manual |
Power Plug Options
Option |
Description |
---|---|
Opt. A0 |
North America |
Opt. A1 |
Universal European Union |
Opt. A2 |
UK |
Opt. A3 |
Australia |
Opt. A5 |
Switzerland |
Opt. A6 |
Japan |
Opt. A10 |
China |
Opt. A11 |
India |
Opt. A99 |
No power cord |
Service Options
Option |
Description |
---|---|
Opt. CA1 |
Provides a single calibration event or coverage for the designated calibration interval, whichever comes first |
Opt. C3 |
Calibration Service 3 Years |
Opt. C5 |
Calibration Service 5 Years |
Opt. D1 |
Calibration Data Report |
Opt. D3 |
Calibration Data Report 3 Years (with Opt. C3) |
Opt. D5 |
Calibration Data Report 5 Years (with Opt. C5) |
Opt. R3 |
Repair Service 3 Years |
Opt. R5 |
Repair Service 5 Years |
Recommended Accessories
Probes
Probe |
Description |
---|---|
P7520 |
20 GHz TriMode™ probe |
P7516 |
16 GHz TriMode™ probe |
P7513 |
13 GHz TriMode™ probe |
P7313 |
13 GHz Z-Active™ differential probe |
P7313SMA |
13 GHz TekConnect® differential SMA probe |
P7380A |
8 GHz Z-Active™ differential probe |
P7380SMA |
8 GHz TekConnect differential SMA probe |
P7360A |
6 GHz Z-Active™ differential probe |
P7340A |
4 GHz Z-Active™ differential probe |
P6251 |
DC to 1 GHz, 42V, Differential Probe (requires TCA-BNC adapter) |
P6250 |
DC to 500 MHz, 42V, Differential Probe (requires TCA-BNC adapter) |
TCPA300/TCPA400 |
Series current measurement systems |
P5200/P5205/P5210 |
High-voltage differential probes |
Adapters
Adapter |
Description |
---|---|
TCA-292MM |
TekConnect to 2.92 mm connectors |
TCA-SMA |
TekConnect-to-SMA adapter |
TCA-N |
TekConnect-to-N adapter |
TCA-BNC |
TekConnect-to-BNC adapter |
TCA75 |
4 GHz precision TekConnect 75 Ω to 50 Ω adapter with 75 Ω BNC input connector |
TCA-1MEG |
TekConnect high-impedance buffer amplifier. Includes P6139A passive probe |
Cables
Cable |
Order |
---|---|
GPIB Cable (1 m) |
012-0991-01 |
GPIB Cable (2 m) |
012-0991-00 |
RS-232 Cable |
012-1298-00 |
Centronics Cable |
012-1214-00 |
Accessories
Accessory |
Order |
---|---|
Service Manual |
071-1740-xx |
Instrumented DIMM for DDR3 |
Order Scope NEXVu card for UDIMM Raw Card E. (Contact http://www.nexustechnology.com) |
Transit Case |
016-1977-00 |
Rackmount Kit |
016-1985-00 |
Oscilloscope Cart |
K4000 |
TDSUSBF |
Test fixture for use with Opt. USB |
Probe Calibration and Deskew Fixture (4 GHz) |
067-0484-xx |
Probe Deskew Fixture (>4 GHz) |
067-1586-xx |
Power Deskew Fixture |
067-1686-xx |
Ethernet Test Fixture |
Order through Crescent Heart Software (http://www.c-h-s.com) |
Instrument Upgrades
To upgrade your DPO70000 Series Oscilloscope or your DSA70000 Series Serial Analyzer, order DPO7UP and option as noted. |
|
Option |
Description |
To upgrade record length on DPO70000 Series from: |
|
XL02*6 |
Standard configuration to Opt. 2XL configuration |
XL25*6 |
Opt. 2XL configuration to Opt. 5XL configuration |
XL210*6 |
Opt. 2XL configuration to Opt. 10XL configuration |
XL220*9*6 |
Opt. 2XL configuration to Opt. 20XL configuration (only available on instruments of bandwidth >= 12.5 GHz) |
To upgrade record length from standard configuration to: |
|
XL05 |
Opt. 5XL configuration |
XL010 |
Opt. 10XL configuration |
XL020*9 |
Opt. 20XL configuration (only available on instruments of bandwidth >= 12.5 GHz) |
To upgrade record length on DPO70000 Series or DSA70000 Series from: |
|
XL510 |
Opt. 5XL configuration to Opt. 10XL configuration |
XL520*9 |
Opt. 5XL configuration to Opt. 20XL configuration (only available on instruments of bandwidth >= 12.5 GHz) |
XL1020*9 |
Opt. 10XL configuration to Opt. 20XL configuration (only available on instruments of bandwidth >= 12.5 GHz) |
To upgrade: |
|
DDRA*10 |
DPO70000 or DSA70000 Series with Opt. DDRA |
DJAH |
DPO70404, 70604, 70804 with Opt. DJA |
DJAU |
DPO71254, 71604, 72004 with Opt. DJA |
DJUP |
DSA70000 with Opt. DJA |
To upgrade DPO70000 Series or DSA70000 Series with: |
|
DVI |
Opt. DVI |
SST*5 |
Opt. SST |
ET3 |
Opt. ET3 |
LT |
Opt. LT |
USB |
Opt. USB |
PWR |
Opt. PWR |
PCE*5 |
Opt. PCE |
IBA*5 |
Opt. IBA |
FBD*5 |
Opt. FBD |
UWB |
Opt. UWB |
UWBE |
Opt. UWBE |
HT3 |
Opt. HT3 |
SLE |
Opt. SLE |
SLA |
Opt. SLA |
EQ*14 |
From Opt SLE to Opt. SLA |
To upgrade DPO70000 Series with: |
|
ASM |
Opt. ASM |
MTH*6 |
Opt. MTH |
PTH*6 |
Opt. PTH |
To upgrade DPO70000 Series or DSA70000 Series with: |
|
CP2*7 |
TDSCPM2 ANSI/ITU Telecom pulse compliance testing software (requires Opt. MTH on DPO70000 Series) |
J2 |
TDSDDM2 disk-drive analysis software |
VNM*8 |
TDSVNM CAN and LIN Timing and Protocol Decode (no CAN triggering included) |
SVEH*12 |
Opt. SVE |
SVEU*13 |
Opt. SVE |
SVP*11 |
Opt. SVP |
SVM*11 |
Opt. SVM |
*5 Requires Opt. RTE on DPO70000 Series.
*6 DPO70000 only.
*7 Requires Opt. MTH on DPO70000 Series
*8 Requires ATM1 CAN/LIN trigger module - Order through Crescent Heart Software
*9 For models of bandwidth >= 12.5 GHz only
*10 Requires DJA and ASM
*11 Requires Opt. SVE, SVEH, or SVEU
*12 DPO/DSA70404, DPO/DSA70604, DPO/DSA 70804 only
*13 DPO/DSA71254, DPO/DSA71604, DPO/DSA72004 only
*14 Request Opt. SLE
