PSPL5545 20 GHz Bias Tee Datasheet
PSPL5545 Datasheet
泰克对于本技术资料上的产品不再有售。
查看 Tektronix Encore 了解翻新测试设备。
查看这些产品的支持和保修状态。
![](/-/media/datasheets/pspl5545datasheet7549561sjpg.jpg?h=142&iar=0&w=180)
The PSPL5545 Bias Tee and DC Block is a broadband, coaxial bias insertion tee and DC blocking capacitor. It passes fast rise pulses with a minimum of waveform distortion. The rise time is 12 ps. The frequency response is flat over many decades, and the -3 dB bandwidth extends from 65 kHz to 20 GHz.
Key performance specifications
- 65 kHz to 20 GHz
- 12 ps rise time
- 100 V, 500 mA
Typical performance

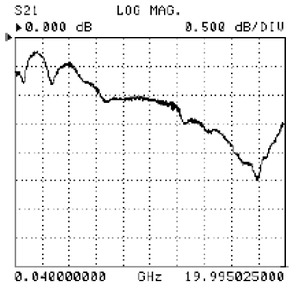

The following figure shows the S21 insertion loss at 0.5 dB/div.

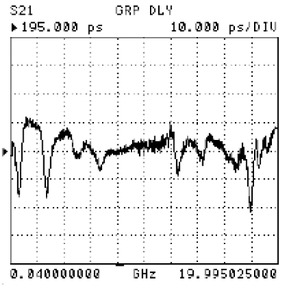

The following figure shows the S21 group delay at 10 ps/div.

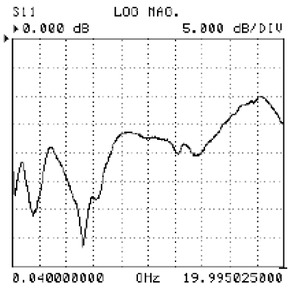

The following figure shows the S11 return loss at 5 dB/div.
The following figures show the linear sweep from 40 MHz to 20 GHz at 2 GHz/div.

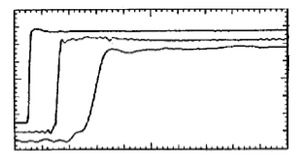

500 ps/div, 100 ps/div, and 20 ps/div, 10 ps Step Response
![PSPL5545-Datasheet-754956-13-N.jpg PSPL5545-Datasheet-754956-13-N](/-/media/sites/default/files/datasheets/pspl5545/pspl5545-datasheet-754956-13-n.jpg)
2.5% rho/div and 500 ps/div, 35 ps TDR
Specifications
Parameter | Symbol | Units | Minimum | Typical | Maximum | Comments |
---|---|---|---|---|---|---|
Impedance | Z | ohms | 50 | |||
Upper 3 dB frequency | fc,h | GHz | >20 1 | |||
Lower 3 dB frequency | fc,l | kHz | 65 | |||
Rise time | tr | ps | 12 | 10 – 90% | ||
Insertion loss | S21 | dB | 0.7 1 1.5 |
f < 5 GHz f < 12 GHz |
||
Input (AC) Return Loss |
S11 | dB | 23 >20 >12 |
f = 100 MHz f < 6 GHz f < 14 GHz |
||
Refl. Coefficient (35 ps TDR) | Γ | % | -7 | t > 1 ns | ||
DC voltage | V | V | 50 | |||
DC current | I | mA | 500 | |||
Capacitance | C | μF | 0.03 | ±20% | ||
Inductance | L | μH | 340 | ±20% | ||
Resistance | R | ohms | 1.1 | |||
RF power | P | W | 2 | Average power | ||
Isolation | S13 | dB | >25 | |||
DC path bandwidth | fc,DC | kHz | 37 | |||
Delay | Td | ps | 195 | |||
RF Connectors | SMA jacks (f) | |||||
DC Connector | Solder pin | |||||
Warranty | One year |
1 Not recommended for freq. domain applications above 15 GHz due to higher order mode resonances.
Ordering information
Models
- PSPL5545
- BIAS TEE, 20 GHz, 50 V
