PSPL5100 Inverting Transformer Datasheet
PSPL5100 Datasheet
泰克对于本技术资料上的产品不再有售。
查看 Tektronix Encore 了解翻新测试设备。
查看这些产品的支持和保修状态。
The PSPL5100 Inverting Transformer rise time is 15 ps with a -3 dB bandwidth from 200 kHz to 23 GHz. It passes fast rise time pulses with a minimum of waveform distortion. A flat top pulse passing through the inverter has less than 2% sag in 15 ns. The PSPL5100 can also be used for RF and microwave applications.

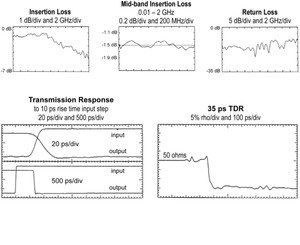

Typical performance
Specifications
| Parameter 1 | Value |
|---|---|
| Rise time (10%-90%) | 15 ps, |
| Bandwidth (-3 dB) | >20 GHz |
| Low Frequency Cutoff | 200 kHz (-3 dB) |
| Insertion Loss | 1.5 ±0.5 dB, 0.01 |
| Impedance | 50 Ω |
| Refl. Coeff. (35 ps TDR) | -15% rho |
| Return Loss (f | >16 dB, >12 dB min |
| Delay | 0.6 ns |
| Sag Time Constant | 800 ns (1/e) |
| Core Saturation | -50% @ 500 mA DC |
| Inductance | 20 μH |
| Max. Power | 10 W average |
| Turns Ratio | 1:1 |
| Connectors | SMA jacks (f) |
| Weight | 5 oz. (142 g) |
| Dimensions | 4.8 in x 1.5 in x 1.1 in (12.2 cm x 3.8 cm x 2.8 cm) |
| Warranty | One year |
1 All parameters listed are typical unless max/min guaranteed limits are provided. Measurements made with 50 Ω matched line/load at output ports
Ordering information
Models
- PSPL5100
- Inverting Transformer
