PSPL5867 15 GHz Linear Amplifier Datasheet
PSPL5867 Datasheet
泰克对于本技术资料上的产品不再有售。
查看 Tektronix Encore 了解翻新测试设备。
查看这些产品的支持和保修状态。
The PSPL5867 is a broadband linear amplifier intended for use amplifying signals with a minimum amount of distortion. The PSPL5867 demonstrates exceptional gain flatness and low deviation from linear phase while providing a bandwidth of 10 kHz to 15 GHz. This amplifier is ideal for use as a linear gain block in applications such as 12.5 Gb/s fiber optic receiver channels.
Key performance specifications
- Broadband linear amplifier with 15 dB gain
- 10 kHz to 15 GHz bandwidth
- Low deviation from linear phase (±3 degrees)
- 1 dB compression point of 13 dBm
- RF power detection
Typical performance

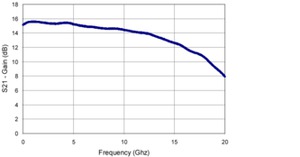

The following figure shows the S21-Gain.

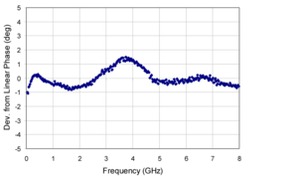

The following figure shows the deviation from linear phase.

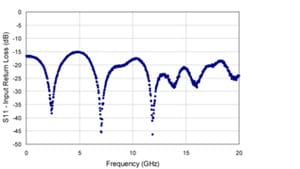

The following figure shows the input return loss.

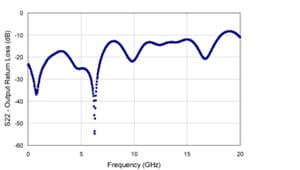

The following figure shows the output return loss.
Specifications
| Parameter | Symbol | Units | Minimum | Typical | Maximum | Comments |
|---|---|---|---|---|---|---|
| Impedance | Z | Ohms | 50 | |||
| Upper 3 dB frequency | fc,h | GHz | 14 | 15 | 3 dB roll-off point | |
| Lower 3 dB frequency | fc,l | kHz | 10 | 20 | 3 dB roll-off point | |
| Small signal gain | S21 | dB | 13 | 15 | 16 | Avg. at 1 GHz and 2 GHz |
| Gain flatness | dB | +/-0.3 | +/-0.5 | 50 MHz | ||
| Deviation from linear phase | deg | +/-3 | +/-5 | 50 MHz | ||
| Return loss, input | S11 | dB | -10 | 50 MHz | ||
| Return loss, output | S22 | dB | -10 -9.5 |
50 MHz 14 GHz ≤ f | ||
| Eff. input RMS noise voltage | μV rms | 99 | ||||
| Noise figure | NF | dB | 5.0 | 7.0 | f > 50 MHz | |
| Maximum power out (-1 dB gain comp) |
dBm | 10 | 13 | |||
| Power detector RF bandwidth | GHz | 15 | ||||
| Power detector output bandwidth (video) | kHz | 20 | ||||
| Power detector output voltage range | VDC | 3.4 | 4.0 | 4.6 | At 12 dBm RF output | |
| Polarity | Inverting | |||||
| Coupling | AC, input and output | |||||
| Supply voltage (+) | +VDC | VDC | 7.5 | 8 | 8.5 | |
| Supply voltage (-) | -VDC | VDC | -5.5 | -5 | -4.5 | |
| Supply current (+) | +IDC | mA | 105 | |||
| Supply current (-) | -IDC | mA | 7 | |||
| Power dissipation | Pdiss | W | 1.0 | 1.5 | ||
| Maximum allowed input | dBm | 15 | Input damage threshold | |||
| Input DC bias range | Vbias | VDC | -10 | 9 | Input is AC coupled | |
| Output DC bias range | Vbias | VDC | -5 | 13 | Output is AC coupled | |
| Operating temperature | TCASE | Deg C | 0 | 75 | Case temperature | |
| Storage temperature | Tstor | Deg C | -40 | 125 | ||
| RF connectors | SMA jacks (f) | |||||
| DC connector | Solder pins | |||||
| Warranty | One year | |||||
- Mechanical dimensions
Ordering information
Models
- PSPL5867
- LINEAR AMPLIFIER, 15 GHz
Options
- SMAJJ
- SMA jacks (f) on input and output
