PSPL5840B 13.5 GHz Ultra-Broadband Amplifier Datasheet

PSPL5840B Datasheet

泰克对于本技术资料上的产品不再有售。
查看 Tektronix Encore 了解翻新测试设备。
查看这些产品的支持和保修状态。

下载产品技术资料
更多信息

在线阅读：

PSPL5840B Datasheet

This Ultra-Broadband Amplifier is an excellent choice for either pulse or RF applications. It offers a very attractive price/performance ratio. It is AC-coupled and extremely broadband, covering 5 ½ decades from 80 kHz to 13.5 GHz. It has a clean transient response and smooth gain vs. frequency response. This is a stable 50 Ω amplifier, and several can be connected in cascade for higher gains.

Key performance specifications
  • 21 dB gain
  • 80 kHz to 13.5 GHz bandwidth
  • +12 dBm output
  • Single 12 V power supply

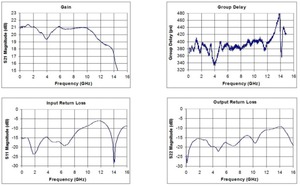

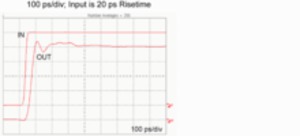

Typical performance

PSPL5840B-Datasheet-315029-9-N

PSPL5840B-Datasheet-315029-10-N

Specifications



Parameter Symbol Units Minimum 1 Typical Maximum Comments
Impedance Z Ohms   50
Upper 3 dB freq. fc,h GHz 11.5  13.5
Lower 3 dB freq. fc,I kHz   80
Small signal gain S21 dB 20  21    Meas. at 100 MHz
Return Loss, Input
Output		 S11
S22		 dB   >16
28 		   Meas. at 100 MHz
Isolation S12 dB   38    Meas. at 100 MHz
Rise Time
Fall Time		 tr
tf		 ps   32
32 		 34
34 		 10-90%, 20 ps input
Overshoot   %   7  8.5  20 ps rise time input
Gain Flatness   dB   +/- 0.5    f
Eff. Input RMS Noise Voltage   μV rms   101
Noise Figure   dB   5.8  8  Meas. at 100 MHz
TDR Refl. Input
Output		   %   +/- 1
-9
Max Power Out
(-1 dB gain comp)		   dBm   +12
+14
+11 		   100 MHz
5 GHz
10 GHz
Max RF In (cw)
or peak pulse		   dBm
mV		   0
315 		   Damage Threshold
Supply Voltage VDC V 11.5    12.5
Supply Current IDC mA   106
Temperature TCASE
Tstor		 Deg C -25
-25 		   +75
+90 		 Operating (case)
Storage
Temp Coeff - Gain   dB/Deg C   -0.007
Temp Coeff - BW   %/Deg C   -0.1
Polarity Non-Inverting
Coupling AC, input and output
RF Connectors SMA jacks (f)
DC Connector Solder pin
Warranty One Year

1 Guaranteed at +12 V and 23 C when max/min limits are given.

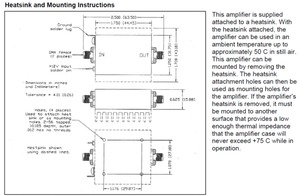

Mechanical dimensions
PSPL5840B-Datasheet-315029-11-N

Ordering information

Models
PSPL5840B
AMPLIFIER, 13.5 GHz, 21 dB GAIN
