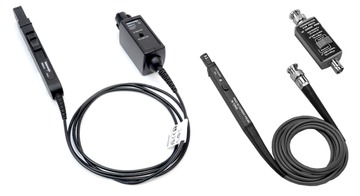

The P6021 and P6022 Current Probes provide versatile AC current measurements. Both probes provide accurate current measurements over a wide range of frequencies. The P6021 and P6022 allow current measurements without breaking the circuit by clipping onto the current carrying conductor. Shielded probe heads are not grounded when the slides are in their open positions, eliminating accidental grounding of the circuit under test.
Key performance specifications
- P6021A
- 120 Hz to 60 MHz
- 10.6 A RMS, 250 A peak, 10 mA sensitivity
- P6022
- 935 Hz to 120 MHz
- 2.12 A RMS, 100 A peak, 1 mA sensitivity
Key features
- For 1 MΩ inputs
- Shielded probe head
- AC only
- Split core construction allows easy circuit connection
- 1.5 m (5 ft) cable
Applications
- Motor drives
- Power inverters/converters
- Power supplies
- Avionics
P6021A
For general purpose applications, the P6021A provides wide-band performance with excellent low-frequency characteristics. Bandwidth is 120 Hz to 60 MHz. The probe range is switchable between 2 mA/mV and 10 mA/mV.
P6022
With a head size of 0.47 in. x 0.25 in. (10 mm x 6 mm, about half the size of the P6021A) and a bandwidth of 935 Hz to 120 MHz, the P6022 is ideal for measuring currents in compact, high-performance circuits. Passive termination output is switchable between 1 mA/mV and 10 mA/mV.
Specifications
All specifications apply to all models unless noted otherwise.
Physical characteristics
Probe dimensions
- Cable length
- 1.5 m (59 in)
- P6021A probe head
- Length
- 20 cm (7.77 in)
- Width
- 16 mm (0.625 in)
- Height
- 32 mm (1.25 in)
- Maximum conductor diameter
- 5 mm (0.197 in)
- P6022 probe head
- Length
- 152 mm (6.0 in)
- Width
- 6.4 mm (0.25 in)
- Height
- 12 mm (0.47 in)
- Maximum conductor diameter
- 2.8 mm (0.11 in)
EMC environment and safety
Compliance
- Compliance
CAN/CSA-C22.2 No. 61010-1
CAN/CSA-C22.2 No. 61010-2-032
UL 61010-1
UL61010B-2-032
EN 61010-1
EN 61010-2-032
Ordering information
Models
- P6021A
- Current Probe
- P6022
- Current Probe with termination
Standard accessories
- 6 in. ground lead
- 196-3521-00
- Instruction manual
- 071-3004-00 (P6021A),
- 070-0948-03 (P6022)
- Termination
- 011-0106-00 (P6022 only)
Recommended accessories
- Nylon carrying case
- 016-1952-xx
- Current loop, 1 turn, 50 Ω with BNC connector, used for Performance Verification
- 067-2396-xx
- Deskew/calibration fixture
- 067-1686-xx
Warranty
Service options
- Opt. C3
- Calibration Service 3 Years
- Opt. C5
- Calibration Service 5 Years
- Opt. D1
- Calibration Data Report
- Opt. D3
- Calibration Data Report 3 Years (with Opt. C3)
- Opt. D5
- Calibration Data Report 5 Years (with Opt. C5)
- Opt. R3
- Repair Service 3 Years (including warranty)
- Opt. R3DW
Repair Service Coverage 3 Years (includes product warranty period). 3-year period starts at time of instrument purchase
- Opt. R5
- Repair Service 5 Years (including warranty)
- Opt. R5DW
Repair Service Coverage 5 Years (includes product warranty period). 5-year period starts at time of instrument purchase
Tektronix is ISO 14001:2015 and ISO 9001:2015 certified by DEKRA. 60W-06647-6
